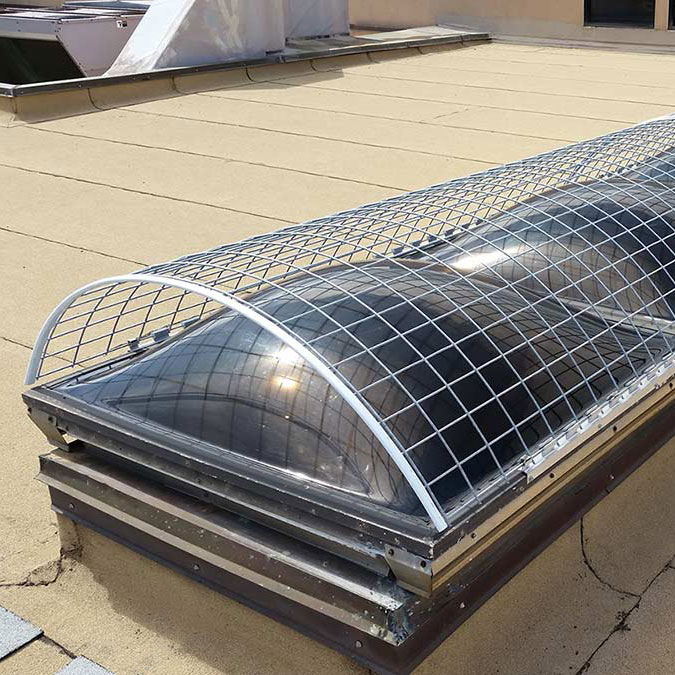

Fixed Roof Dome Skylight Screens
CAI Safety provides Fixed Dome Skylight Safety Screens that are OSHA and CAL-OSHA fall protection compliant. They fit a variety of dome-shaped skylights and don’t take up any space on the roof. Our unique compression-fit design locks the screen onto the aluminum frame of the skylight.
PLEASE NOTE: Maximum Cal-OSHA compliance size is Width 53” x Length 120”. Any skylight dimensions exceeding these will require us to quote you separately. Please contact us.
- System Description
- Sizing Your Skylight
- Skylight Models
- Downloads
- OSHA Skylight Regulations
- Request a Quote
Description
CAI Safety provides Fixed Skylight Safety Screens that are OSHA and CAL-OSHA fall protection compliant. They fit a variety of dome-shaped skylights and don’t take up any space on the roof. Our unique compression-fit design locks the screen onto the aluminum frame of the skylight.
Skylight Screens often are the most economical solution for guarding skylights. The Skylight Screens are available in a range of sizes and configurations to retrofit your skylights. Best of all, they do not require any penetrations to the roof, curb, or skylight.
FEATURES & BENEFITS
- Economical
- Compression-fit — no penetrations
- Galvanized finish
- Perfect for high wind areas
- OSHA compliance for all widths and lengths
- CAL-OSHA compliance for all widths and lengths
Measure the actual length and width of your skylight and then use the pull down menu at the top of this page to size a fall protection cover for your skylight.
| All Widths | All Lengths | Description | CAL-OSHA |
|---|---|---|---|
| 24″, 30″, 36″, 42″, 48″, 53″ | 24″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 30″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 36″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 42″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 48″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 54″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 60″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 66″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 72″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 78″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 84″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 90″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 96″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 102″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 108″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 114″ | Fits square & rectangular skylights | Compliant |
| 24″, 30″, 36″, 42″, 48″, 53″ | 120″ | Fits square & rectangular skylights | Compliant |
| 24″-28″ (2′) W | 24″-28″ (2′) L | Fits square skylights | Compliant |
| 36″-40″ (3′) W | 36″-40″ (3′) L | Fits square skylights | Compliant |
| 48″-52″ (4′) W | 48″-52″ (4′) L | Fits square skylights | Compliant |
| 58″-62″ (5′) W | 58″-62″ (5′) L | Fits square skylights | Not Compliant |
| 72″-76″ (6′) W | 72″-76″ (6′) L | Fits square skylights | Not Compliant |
| 78″-88″ (7′) W | 78″-88″ (7′) L | Fits square skylights | Not Compliant |
| 96″-100″ (8′) W | 96″-100″ (8′) L | Fits square skylights | Not Compliant |
| 24″-28″ (2′) W | 48″-52″ (4′) L | Fits rectangular skylights | Compliant |
| 24″-36″ (2′) W | 94″-100″ (8′) L | Fits rectangular skylights | Compliant |
| 36″-40″ (3′) W | 48″-52″ (4′) L | Fits rectangular skylights | Compliant |
| 36″-40″ (3′) W | 72″-76″ (6′) L | Fits rectangular skylights | Compliant |
| 48″-52″ (4′) W | 72″-76″ (6′) L | Fits rectangular skylights | Compliant |
| 48″-52″ (4′) W | 94″-100″ (8′) L | Fits rectangular skylights | Compliant |
| 60″-64″ (5′) W | 72″-76″ (6′) L | Fits rectangular skylights | Not Compliant |
| 60″-64″ (5′) W | 94″-100″ (8′) L | Fits rectangular skylights | Not Compliant |
| 72″-76″ (6′) W | 94″-100″ (8′) L | Fits rectangular skylights | Not Compliant |
| SKU’s | Downloads | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Not CAL-OSHA Compliant |
| Federal OSHA and Cal OSHA are specific on performance standards for railings, screens and covers for skylights. Paramount for all of them is that if a person falls onto the screen or cover they must not be allowed to break the lens of the skylight. In other words the screen or cover must not only support the weight of the person falling, it must also meet load requirements prescribed by OSHA. If using railings, the railing must meet load requirements of their own. Here are the pertinent standards from the www.OSHA.gov website by which skylight guarding is mandated by law and that all railings, covers and screens must comply. |
| 29 CFR 1910.23(a)(4) – The Duty to Provide Protection Every skylight floor opening and hole shall be guarded by a standard skylight screen or a fixed standard railing on all exposed sides. |
| 29 CFR 1910.23(e)(8) – Screens and Covers Must Comply Skylight screens shall be of such construction and mounting that they are capable of withstanding a load of at least 200 pounds applied perpendicularly at any one area on the screen. They shall also be of such construction and mounting that under ordinary loads or impacts, they will not deflect downward sufficiently to break the glass below them. The construction shall be of grillwork with openings not more than 4 inches long or of slatwork with openings not more than 2 inches wide with length unrestricted. |
| 29 CFR 1926.502(b)(4) – Railings Must Comply: When the 200 pound (890 N) test load specified in paragraph (b)(3) of this section is applied in a downward direction, the top edge of the guardrail shall not deflect to a height less than 39 inches (1.0 m) above the walking/working level. Guardrail system components selected and constructed in accordance with the Appendix B to subpart M of this part will be deemed to meet this requirement. |
| Cal/OSHA Title 8, Chapter 4, Article 19, 1623 (3) – Screens and Covers Must Comply (California Standard Only)
(3) Covers shall be capable of safely supporting the greater of 400 pounds or twice the weight of the employees, equipment and materials that may be imposed on any one square foot area of the cover at any time. Covers shall be secured in place to prevent accidental removal or displacement, and shall bear a pressure sensitized, painted, or stenciled sign with legible letters not less than one inch high, stating: “Opening–Do Not Remove.” Markings of chalk or keel shall not be used. |
| 1926.501(b)(4)(i) Each employee on walking/working surfaces shall be protected from falling through holes (including skylights) more than 6 feet (1.8 m) above lower levels, by personal fall arrest systems, covers, or guardrail systems erected around such holes. |
| 1926.501(b)(4)(ii) Each employee on a walking/working surface shall be protected from tripping in or stepping into or through holes (including skylights) by covers. |
| 1926.501(b)(4)(iii) Each employee on a walking/working surface shall be protected from objects falling through holes (including skylights) by covers. |
| At CAI Safety Systems all of our products meet the appropriate standards. They are made in the USA by AWS Certified Welders under strict quality control standards. |
By providing some basic information, we can provide you with a custom quotation or more product information.
If you prefer to speak with a fall protection expert just call us at (951) 465-7386 x 303 or email us at [email protected]
These application and system specific forms are highly customized to help you provide system specific information about your fall protection requirements.
