The Fixed Roof Warning Lines is intended to permanently attach to various types of metal roofs such as Standing Seam roof, R-Panel roof, and Corrugated Deck roof. Easy to install and forms an OSHA fall protection system. The system is designed to keep workers away from areas they shouldn’t be.

Place bases at required intervals of 33 feet or less.
SKU: N/A Category: Tag:
  • System Description
  • System Components
  • What's Included
  • How To Use
  • Accessories
  • Downloads
  • Contact Us

Description

The Fixed Roof Warning Lines is intended to permanently attach to various types of metal roofs such as Standing Seam roof, R-Panel roof, and Corrugated Deck roof. Easy to install and forms an OSHA fall protection system. The system is designed to keep workers away from areas they shouldn’t be.

Standing Seam Roofs
The base mechanically attached, non-piercing system is compression-fit to the vertical seams of standing seam metal roofs without puncturing the metal panel itself. Standing Seam Roofs are fully OSHA compliant.

Corrugated Deck & R-Panel Roofs
The base mechanically attached system is screwed down to the metal roof panel with self-sealing screws. Once thought impossible to guard, corrugated roofs can now be brought into full OSHA compliance.


FEATURES & BENEFITS

  • Non-piercing, clamp-on attachment to Standing Seam ribs.
  • Galvanized Finish Standards.
  • Self-sealing screw down attachment for R-Panel and Corrugated metal roofs.
  • Plastic-coated Galvanized Cable & Aluminum Pennants.

SYSTEM SETUP GUIDELINES

  • Place bases at required intervals of 33 feet or less.
  • 39″ Flag height as per OSHA guidelines.
  • The minimum distance from the roof leading edge must be 15 feet.
  • Maximum allowed roof slope up to a 1:12 pitch.
  • OSHA Regulations – 1926.501(b)(10), 1926.501(b)(1), 1926.501(b)(2), 1926.502(b), 1926.502(f)(2).

Permanent Warning Line System - Reference Chart

Fixed Roof Warning Lines - Standing Seam Kit Fixed Roof Warning Lines - R-Panel Kit Fixed Roof Warning Lines - Corrugated Deck Kit
For Standing Seam Roofs For R-Panel Roofs For Corrugated Deck Roofs
Item # (SKU) Product Variations Weight (lbs.)
Standard Kits
SRC-400742-KIT 16”-18” Standing Seam Kit – Galvanized
Includes: (4) 16”-18” base plates, (4) stanchions, (1) 100′ Cable w/pennants
31
SRC-400741-KIT 24” Standing Seam Kit – Galvanized
Includes: (4) 24” base plates, (4) stanchions, (1) 100′ Cable w/pennants
43
SRC-400743-KIT 12” R-Panel Kit – Galvanized
Includes: (4) 12” base plates, (4) stanchions, (1) 100′ Cable w/pennants
26
SRC-400744-KIT 12” Corrugated Deck Kit – Galvanized
Includes: (4) 12” base plates, (4) stanchions, (1) 100′ Cable w/pennants
23
Optional Accessories – Additional Bases with Stanchions only
SRC-400748 16”-18” Standing Seam Base w/Stanchion only 15
SRC-400747 24” Standing Seam Base w/Stanchion only 15
SRC-400749 12” R-Panel Base w/Stanchion only 34
SRC-400750 12” Corrugated Deck Base w/Stanchion only 20
Optional Accessories – Additional Galv. Cable & Aluminum Pennants only
SRC-400726-25 25′ Warning Line Pennants ($4.25/per ft.) * 25 ft.
SRC-400726-50 50′ Warning Line Pennants ($4.25/per ft.) * 50 ft.
SRC-400726-75 75′ Warning Line Pennants ($4.25/per ft.) * 75 ft.
SRC-400726-100 100′ Warning Line Pennants ($4.25/per ft.) * 100 ft.
SRC-400726-125 125′ Warning Line Pennants ($4.25/per ft.) * 125 ft.
SRC-400726-150 150′ Warning Line Pennants ($4.25/per ft.) * 150 ft.
SRC-400726-175 175′ Warning Line Pennants ($4.25/per ft.) * 175 ft.
SRC-400726-200 200′ Warning Line Pennants ($4.25/per ft.) * 200 ft.



** Clamps & Anchor bolts for securing the Base Plate to your application are included with this kit.

SYSTEM SETUP GUIDELINES

  • Place bases at required intervals of 33 feet or less.
  • 39″ Flag height as per OSHA guidelines.
  • The minimum distance from the roof leading edge must be 15 feet.
  • Maximum allowed roof slope up to a 1:12 pitch.

Fixed Roof Permanent Warning Lines

  • You've just added this product to the cart:

    12” Base w/Stanchion for Corrugated Deck Roof (Galvanized)

    Fixed Roof Warning Lines - Corrugated Deck Kit
    Fixed Roof Warning Lines - Corrugated Deck Kit

    12” Base w/Stanchion for Corrugated Deck Roof (Galvanized)

    12” Base w/Stanchion for R-Panel Roof (Galvanized)
    $329.00 $305.00
  • You've just added this product to the cart:

    12” Base w/Stanchion for R-Panel Roof (Galvanized)

    Fixed Roof Warning Lines - R-Panel Kit
    Fixed Roof Warning Lines - R-Panel Kit

    12” Base w/Stanchion for R-Panel Roof (Galvanized)

    12” Base w/Stanchion for R-Panel Roof (Galvanized)
    $329.00 $305.00
  • You've just added this product to the cart:

    16”-18” Base w/Stanchion for Standing Seam Roof (Galvanized)

    Fixed Roof Warning Lines - Standing Seam Kit
    Fixed Roof Warning Lines - Standing Seam Kit

    16”-18” Base w/Stanchion for Standing Seam Roof (Galvanized)

    16”-18” Base w/Stanchion for Standing Seam Roof (Galvanized)
    $329.00 $305.00
  • You've just added this product to the cart:

    24” Base w/Stanchion for Standing Seam Roof (Galvanized)

    Fixed Roof Warning Lines - Standing Seam Kit
    Fixed Roof Warning Lines - Standing Seam Kit

    24” Base w/Stanchion for Standing Seam Roof (Galvanized)

    24” Base w/Stanchion for Standing Seam Roof (Galvanized)
    $342.00 $317.00
  • You've just added this product to the cart:

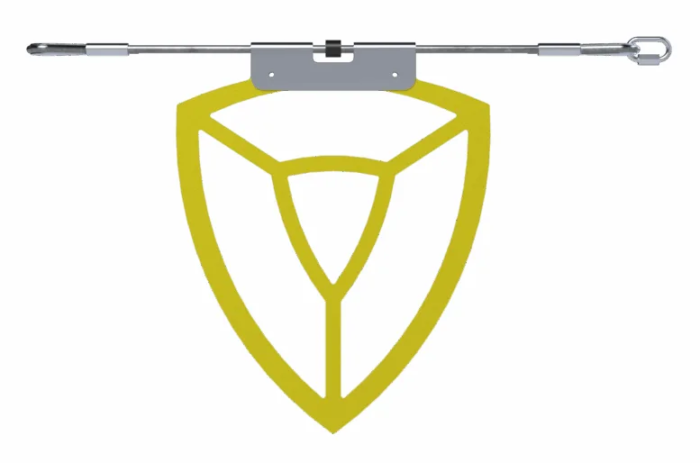

    Plastic-coated Galvanized Cable & Aluminum Pennants

    Permanent Warning Line System
    Permanent Warning Line SystemPermanent Warning Line System

    Plastic-coated Galvanized Cable & Aluminum Pennants

    Plastic-coated galvanized cable with aluminum pennants means the permanent warning line system is built for long-term exposure to the elements.
