Split Self-Closing Safety Gate

Split Self-Closing Safety Gate

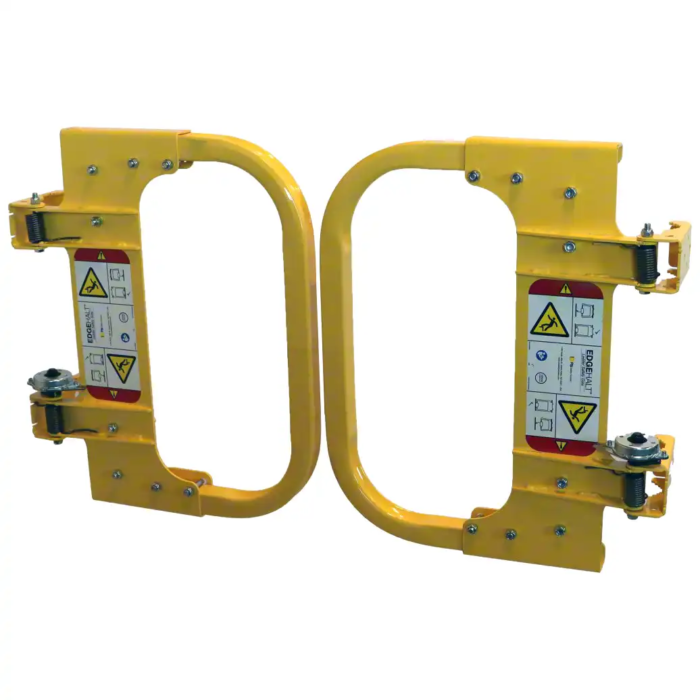

The Split Self-Closing Safety Gate provides all the benefits of our single gate with the added feature of being able to operate in tight spaces. The double door reduces the swing radius while still providing a safe OSHA compliant gate. Available in three finishes: Powder Coat Yellow (PCY), Hot Dipped Galvanized (GAL) and 304 Stainless Steel (SS).

SKU: PSD-SPLIT-GATE Category: Tags: ,
  • System Description
  • Models, Sizes & Finishes
  • Standard Technical Data
  • Downloads
  • Accessories
  • REQUEST QUOTE

Description

The Split Self-Closing Safety Gate provides all the benefits of our single gate with the added feature of being able to operate in tight spaces. The double door reduces the swing radius while still providing a safe OSHA compliant gate. Available in three finishes: Powder Coat Yellow (PCY), Hot Dipped Galvanized (GAL) and 304 Stainless Steel (SS).


FEATURES & BENEFITS

UNIVERSAL MOUNTING
Universal mounting bracket fits up to 2″ OD round or square columns or can be directly mounted to angle, iron, flat bar or wall surfaces.

CUSTOM FIT
Each model has a 3 1/2″ length adjustment to provide a snug and safe fit.

SELF-CLOSING
Durable design includes two stainless steel torsion springs to allow the safety gate to be self-closing.

ADJUSTABLE
Non-handled gate, simply invert gate for opposite swing direction.

CHOICE OF CONSTRUCTION & FINISH
We offer the following:

  • Powder Coat Yellow (PCY)
  • Hot Dipped Galvanized (GAL)
  • Stainless Steel (SS)

READY TO INSTALL
The gate ships fully assembled with standard mounting hardware for round pipe (up to 2″ O.D) and square tubing (up to 1.5″ x 1.5″ O.D). See optional mounting bracket options below if the standard U bolts included do not fit your application.

IMPROVES SAFETY

  • Protects personnel from accidental falls from ladder ways, stairwell openings, scaffolding, catwalks, mezzanines and other elevated working platforms.
  • Self-closing and always in place.

OSHA & ANSI COMPLIANT
Engineered and tested to comply with Ladder Safety Gate requirements in OSHA 1910.28 and 1910.29, as well as ANSI A1264.1-2007, A14.3-2008 and MH28.3-2009.

!! CAUTION !! This is a fall protection system. The system must be used in strict conformance with the manufacturer's instructions. Failure to do so may result in serious injury or death. You can download the system manuals from the 'Downloads' tab. You are also encouraged to contact us in case of any questions. more info

Powder Coat Yellow (PCY)
Item Number (SKU) GATE SIZES – Min. to Max. Weight (lbs)
PSDDBL-9-PCY 16 3/4″ to 22 1/2″ 19
PSDDBL-12-PCY 22″ to 28-1/2″ 20
PSDDBL-15-PCY 28″ to 34-1/2″ 20
PSDDBL-18-PCY 34″ to 40-1/2″ 21
PSDDBL-21-PCY 40″ to 46-1/2″ 22
PSDDBL-24-PCY 46″ to 52-1/2″ 24
Hot Dipped Galvanized (GAL)
Item Number (SKU) GATE SIZES – Min. to Max. Weight (lbs)
PSDDBL-9-GAL 16 3/4″ to 22 1/2″ 19
PSDDBL-12-GAL 22″ to 28-1/2″ 20
PSDDBL-15-GAL 28″ to 34-1/2″ 20
PSDDBL-18-GAL 34″ to 40-1/2″ 21
PSDDBL-21-GAL 40″ to 46-1/2″ 22
PSDDBL-24-GAL 46″ to 52-1/2″ 24
Stainless Steel (SS)
Item Number (SKU) GATE SIZES – Min. to Max. Weight (lbs)
PSDDBL-9-SS 16 3/4″ to 22 1/2″ 19
PSDDBL-12-SS 22″ to 28-1/2″ 20
PSDDBL-15-SS 28″ to 34-1/2″ 20
PSDDBL-18-SS 34″ to 40-1/2″ 21
PSDDBL-21-SS 40″ to 46-1/2″ 22
PSDDBL-24-SS 46″ to 52-1/2″ 24



Split Self-Closing Safety GateINSTALLATION (standard round pipe or square tube):

The gate ships fully assembled, including standard mounting hardware for round pipe (up to 2″ O.D.) and square tubing (up to 1-1/2″ x 1-1/2″ O.D.); if mounting to angle iron, flat bar or nonstandard railing, gate bolts directly to railing (hardware not included). All split gate models are equipped with 2 hinges.

Split Self-Closing Safety Gate

Split Self-Closing Safety Gate

MATERIAL:

  • Gate: 1-1/4″, 11-gauge* square tubing; minimum dimension from top of gate arm to bottom of gate arm is 22-1/4″.
  • Hinge Plate: 10-gauge, full height of gate; hinge plate provides for gate adjustment of 3-3/4″ (-) 1-1/4″ to (+) 2-1/2″.
  • Gate Operation: Allows for 180-degree travel; gate swing direction is reversible by inverting or rotating.
  • Packaging: Carton includes two gates, standard mounting hardware and Installation/O&M Manual.
  • Aluminum, 0.125″ wall thickness; stainless steel, 16-gauge.

HARDWARE:

  • Standard Hardware: U-bolts, flat washers, nuts and plastic thread protector cap.
  • Springs: Torsion type, stainless steel; minimum of two (2) springs per gate, housed within hinge pivot.

FINISHES:

  • Mild steel, powder coat yellow; hardware to be zinc-plated.
  • Mild steel, hot dipped galvanized; hardware to be zinc-plated.
  • Stainless steel, 304-2b, unpainted; hardware to be stainless type 316.
