Flatbed Truck Mounted Guardrail

Flatbed Truck Mounted Guardrail

The Flatbed Truck Mounted Guardrail provides an OSHA fall protection compliant system that prevents falls from elevated flatbed trailer decks. Put an end to falls from flatbed trailer truck loading/unloading operations.

SKU: GAR-FLATBED Category: Tag:
  • System Description
  • Models & Setup
  • Specifications
  • Accessories
  • Downloads
  • Contact Us

Description

The Flatbed Truck Mounted Guardrail provides an OSHA fall protection compliant system that prevents falls from elevated flatbed trailer decks. Put an end to falls from flatbed trailer truck loading/unloading operations.

The complete universal guardrail system comes with a more compact, easy-to-install and transport package. The flatbed side rail solutions fits in standard trailer pockets and includes all components necessary to protect trailers from 48 feet up to 53 feet long. Installs in 10 minutes.

A Transportation Cart is included with the system to allow quick and easy transport and storage.


FEATURES & BENEFITS

ACCESS LADDER
The access ladder is designed to fit in standard flatbed side pockets. At only 36 lbs it is easily placed. When combined with the gate, safe access to the flatbed is assured for installing load binders and tarping equipment.

EASY TO INSTALL
The bases are inserted into pockets of the frame of the truck and then the guardrails are dropped in place. Quick setup in less than 15 minutes.

COMPACT
The entire install can be done from floor level thereby promoting efficiency and safety. The compact system also does not interfere with overhead crane operation.

OSHA COMPLIANT
Once the system has been installed the operator can safely carry out loading and unloading operation on top of the flatbed truck. No additional lifelines or tie-off are required as long as the user does not climb any higher than the flatbed truck level. OSHA Compliant Regulation 1910.23(c).

USER-FRIENDLY
The Portable Guardrail System provides workers with freedom of movement, sets up in minutes from ground level, can be used indoors or outdoors and works on both steel and aluminum bed trucks.

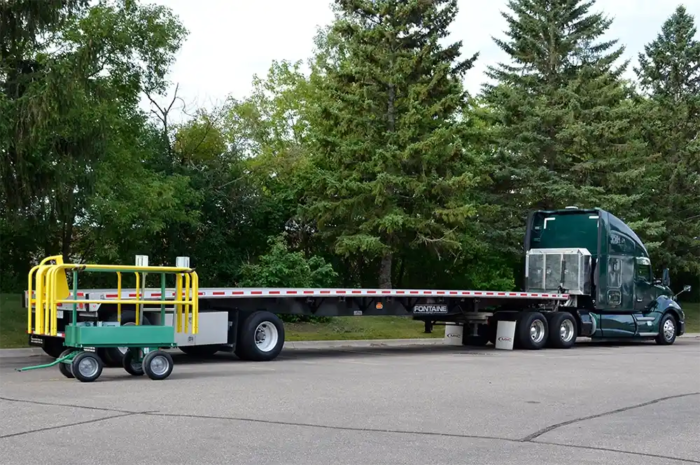

TRANSPORTATION CART
Allows quick and easy transport and storage. With large tires the cart can by moved by one person over uneven terrain. The unique handle/brake keeps the cart stationary during loading and unloading.

!! CAUTION !! This is a fall protection system. The system must be used in strict conformance with the manufacturer's instructions. Failure to do so may result in serious injury or death. You can download the system manuals from the 'Downloads' tab. You are also encouraged to contact us in case of any questions. more info

Item # (SKU) Trailer Length Description Weight (lbs)
GAR-301516 48′ & 53′ Trailer Complete Universal System w/Drop-in Pockets, Covers the Back of Trailer 990



Setup Instructions

Flatbed Truck Mounted Guardrail
Install Ladder
Flatbed Truck Mounted Guardrail
Install Pockets
Flatbed Truck Mounted Guardrail
Install Railings
Flatbed Truck Mounted Guardrail
Safely Climb Up
Flatbed Truck Mounted Guardrail

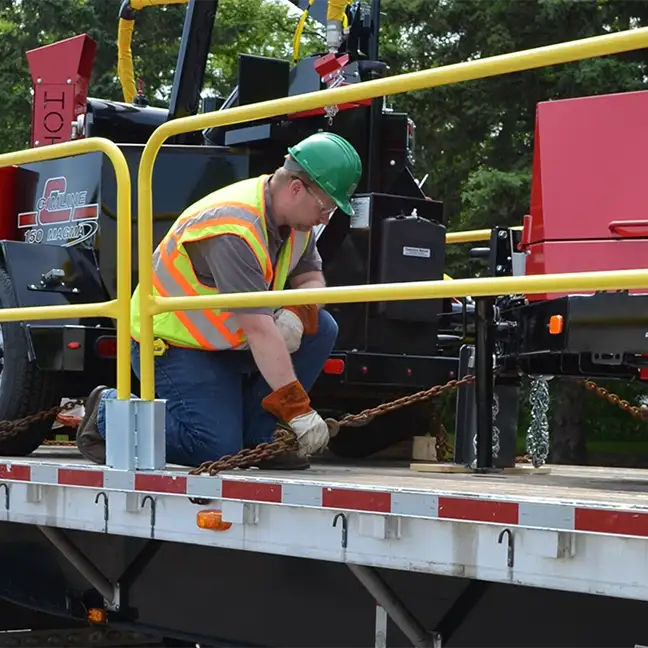

Safely Work

Falls from flatbed trailers cause countless injuries and fatalities. Protect your employees with the Flatbed Truck Mounted Guardrail system. The fall protection solution for safe and speedy materials handling and transport.

  • Drop in the rail system that installs in stake pockets to provide full perimeter fall protection for the bed of the truck.
  • Easy mount ladder and gate fits in the stake pocket.
  • Rough terrain cart with flat free tires provides transport and storage.
  • Clamp-On Rail Pockets for trucks with damaged or missing side rail pockets.

Transportation Cart Dimensions:

  • Meets applicable OSHA 1926.502 standards for fall protection.
  • Cart Dimensions: Length: 116”, Width: 45”, Height: 75”.
  • Weight: 903 lbs. fully loaded (435 lbs. cart only).
  • Tires: Flat Free Filled
