Outdoor Freestanding for Trucks

Outdoor Freestanding for Trucks

Outdoor Freestanding Systems provide OSHA compliant fall protection coverage for tanker trucks. Custom engineered fall arrest anchors along with horizontal lifelines provide safety coverage for your truck loading needs. Our OSHA and MSHA compliant outdoor freestanding system are designed to provide safety for tanker, flatbed and trailer trucks.

Applications: Truck / Tanker / Flatbed / Earth Mover / more…

NOTE: This product is currently not available for purchase online. Contact us for more detailed information about your application and requirements.

CONTACT US / REQUEST MORE INFO

  • System Description
  • System Components
  • System Types
  • Models Explained
  • Downloads
  • Questions?

Description

Outdoor Freestanding Systems provide OSHA compliant fall protection coverage for tanker trucks. Custom engineered fall arrest anchors along with horizontal lifelines provide safety coverage for your truck loading needs. Our OSHA and MSHA compliant outdoor freestanding system are designed to provide safety for tanker, flatbed and trailer trucks.

Learn more about how we can enhance the safety of your truck loading safety operation.

Applications: Truck / Tanker / Flatbed / Earth Mover / more…

FALL PROTECTION CHALLENGE

Users, who work on top of tanker, hopper grain, and gondola railcars, are often outdoors with no overhead structure. External factors like wind and rain further compound the fall hazard faced by these workers. With no overhead structure to anchor a fall protection system and a busy loading or work area an experienced partner in fall protection is a must.

FALL PROTECTION SOLUTION

CAI Safety Systems offers custom freestanding anchor to support a Fall Arrest System that will provide the extent of railcar coverage you need with minimal interference to your other loading or work operations. Our freestanding anchors and cable or rigid horizontal lifelines meet OSHA and ANSI fall protection requirements.

Features & Benefits

Outdoor Freestanding for Truck

FREESTANDING ANCHORS

CAI’s freestanding truck fall protection system is supported from concrete piers. This engineered approach gives you the option of having an outdoor fall arrest system that supports your loading needs.

Outdoor Freestanding

LESS IS MORE

Our aluminum truss track has many benefits such as robust construction, light weight and endurance in the outdoor elements. The other major benefit is the long spans we can run between supports. For example we can support a forty foot flatbed truck with one anchor, this translates to fewer anchors and footings to the benefit of your bottom line.

Outdoor Freestanding Railcar System

EASY TO INSTALL

To reduce field assembly time, our products are shipped fabricated with detailed assembly instructions. Assembly comprises of steel erection with bolting and clamping of the major components.

Outdoor Freestanding for Truck

OSHA & ANSI COMPLIANT

We have an in-house team to engineer and manufacture the freestanding fall arrest system. This means we can monitor the QA and QC throughout the process to make sure the product delivered to your doorstep is safe and meets your truck safety needs.

Overhead Outdoor Freestanding System

Horizontal Lifeline: This is a rigid track or stainless steel cable lifeline that runs the desired length to allow the user to have access to the work area.

Connecting Means: A trolley that is designed to glide over the rigid or cable horizontal lifeline system. This feature keeps the fall arrest system directly above the user to reduce the chances of a swing fall.

Fall Arrest Device: The self-retracting lifeline is utilized to reduce the arresting forces of the fall on the user and minimize the fall distance.

Retrieval System: Safety starts at the ground level. Our pulley retrieval system allows the user to access the fall arrest system before even attempting to climb the vehicle or equipment that is going to be worked on.

Full Body Harness: Only a full body harness can be used in a fall arrest system such as the freestanding fall protection system. The harness reduces the forces of the fall on the body and also keeps the user in an upright position when properly worn.

Choices for a Truck Outdoor Freestanding System

A fall protection expert will guide you in the proper selections of the anchor, horizontal lifeline and custom features to make sure that you have the right fall protection system for your needs.

Outdoor Freestanding Railcar System
Outdoor Freestanding for Truck
Outdoor Freestanding Railcar System
Outdoor Freestanding for Truck
Single Hatch Access Platform with Gangway
Access Gangways
COVERAGE LENGTH

We offer fall arrest anchors to cover everything from a single hatch tanker truck up to a forty foot flatbed truck.

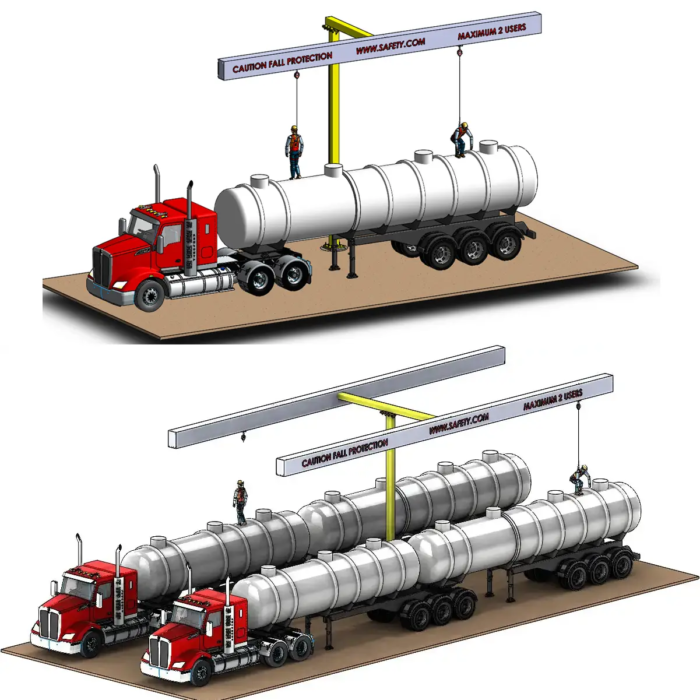

SINGLE OR DOUBLE

Our anchors can be customized to support one application or two applications in parallel to allow the servicing of two trucks simultaneously. We can configure the fall protection system to work within your space restriction to provide an effective safety system.

ACCESS PLATFORM & GANGWAY

We can retrofit our anchors to support a staircase with platform and gangway to provide safe passage to the top of the work area. By integrating the method of access and fall protection with our freestanding fall protection system we save you space and money.

Single Systems (L-Shaped):

Outdoor Freestanding L-Shaped - Reference ChartModel NumbersCoverageRated ForIdeal ApplicationsQuick LookDrawings
CA1117605 feet2 UsersSingle hatch tanker truckOverhead Outdoor Freestandingicon
CA11176120 feet2 UsersMultiple hatch tankerOverhead Outdoor Freestandingicon
CA11176240 feet2 UsersFlatbed truckOverhead Outdoor Freestandingicon
CA11176350 feet2 Users50 foot trailer truckOverhead Outdoor Freestandingicon
CA11176470 feet2 UsersTanker/Flatbed truckOverhead Outdoor Freestandingicon

Dual Systems (T-Shaped):

Outdoor Freestanding T-Shaped - Reference ChartModel NumbersCoverageRated ForIdeal ApplicationsQuick LookDrawings
CA1117655 feet4 UsersSingle hatch tanker truckOverhead Outdoor Freestandingicon
CA11176620 feet4 UsersMultiple hatch tankerOverhead Outdoor Freestandingicon
CA11176740 feet4 UsersFlatbed truckOverhead Outdoor Freestandingicon
CA11176850 feet4 Users50 foot trailer truckOverhead Outdoor Freestandingicon
CA11176970 feet4 UsersTanker/Flatbed truckOverhead Outdoor Freestandingicon
