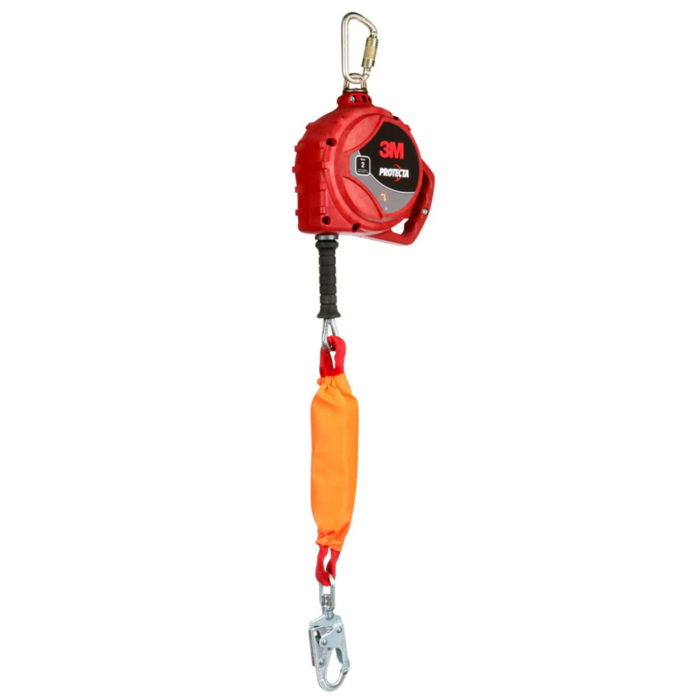

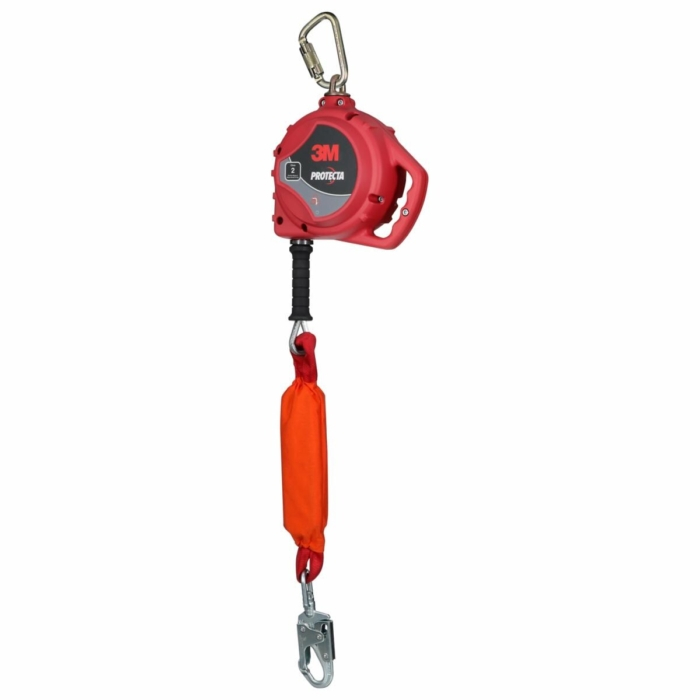

3M Protecta Rebel Leading Edge 20ft., 33ft., 50ft., 66ft. Self-Retracting Lifeline

3M Protecta Rebel Leading Edge 20ft., 33ft., 50ft., 66ft. Self-Retracting Lifeline

20ft. (6.1m), 33ft. (10m), 50ft. (15.2m) & 66 ft. (20.1m) galvanized steel wire rope with swivel snap hook and in-line shock absorber for leading edges. Effective August 1, 2023, complies with the new New ANSI/ASSP Z359.14-2021 standard with conformance to 29 CFR OSHA 1926.502 & OSHA 1910.140.

SRL Size / Length	↻ Reset selections

Availability: CAISS does not ship this product outside the continental USA (Canada, Mexico, Europe, etc.) Learn more ...

System Description
Specifications
Downloads

Description

The Leading Edge Rebel self retracting lifeline (SRL) line is built to last providing an economical fall protection solution without compromising performance or safety. It allows users to tie-off at foot level and was put through extensive sharp edge testing to ensure absolute protection against sharp, abrasive and leading edges. A robust design with a heavy-duty thermoplastic housing ensures longevity.

Rebel is designed with the worker in mind, featuring a stackable space-maximizing design and an impact indicator to provide easy verification of whether the equipment has been involved in a fall. An SRL’s lifeline will extend as the user moves away, and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed sensing brake system will activate stopping the fall and reducing the forces imposed on the user to safe levels.

Effective August 1, 2023, complies with the new New ANSI/ASSP Z359.14-2021 standard with conformance to 29 CFR OSHA 1926.502 & OSHA 1910.140.

Features & Benefits:

Designed for leading edge applications
Rugged and extremely lightweight thermoplastic housing
Stackable housing design
Built-in carrying handle
Galvanized steel cable lifeline
Internal and external energy absorption systems
Swiveling self-locking snap hook with impact indicator
Reserve lifeline system
Swiveling anchorage point
Side lifeline exit with ergonomic handle
High strength, corrosion resistant components
Self-locking anchorage carabiner

Models:

CSS-3590046 – 20 ft. (6.1m) of 7/32″ (5.5mm) galvanized steel wire rope with swivel snap hook and in-line shock absorber for leading edges
CSS-3590047 – 33 ft. (9.1m) of 7/32″ (5.5mm) galvanized steel wire rope with swivel snap hook and in-line shock absorber for leading edges
CSS-3590048 – 50 ft. (15m) of 7/32″ (5.5mm) galvanized steel wire rope with swivel snap hook and in-line shock absorber for leading edges
CSS-3590049 – 66 ft. (20.1m) of 7/32″ (5.5mm) galvanized steel wire rope with swivel snap hook and in-line shock absorber for leading edges

**CAUTION WARNING** This fall protection system is designed to ensure your safety when used correctly. To prevent serious injury or death, it is imperative that you strictly adhere to the manufacturer's instructions. Only operate this system if you have received proper training. In accordance with OSHA regulations, it is mandatory to involve a Qualified Person for the design and installation supervision of all fall arrest and restraint systems, including the product highlighted on this page. To access detailed instructions, please download the system manuals from the 'Downloads' tab on each product page. For any inquiries or clarifications, feel free to contact us. Your safety is our top priority!

Anchor Hook Material	Zinc Plated Steel
Brand	Rebel™
Case Quantity	1
Color	Red
Dimensions	(42.00×10.00×4.50)in
Housing Material	Nylon Thermoplastic
Housing Type	Thermoplastic
iSafe Equipped	No
Length	20ft. (6.1m), 33ft. (10m), 50ft. (15.2m), 66 ft. (20.1m)
Lifeline Hook Material	Zinc Plated Steel
Lifeline Material	Galvanized Cable
Mounting Type	Block to Anchor Point
Product Series	Rebel™
Product Type	Self Retracting Lifeline – Leading Edge
Recommended Industry	Construction, General Industrial
Standards/Approvals	ANSI A10.32, ANSI Z359.14, OSHA 1910.66, OSHA 1926.502
Weight	17, 17 lb.
Weight Capacity	310 lbs. (141 kg)
