Crossover Stairs Safety Bridge

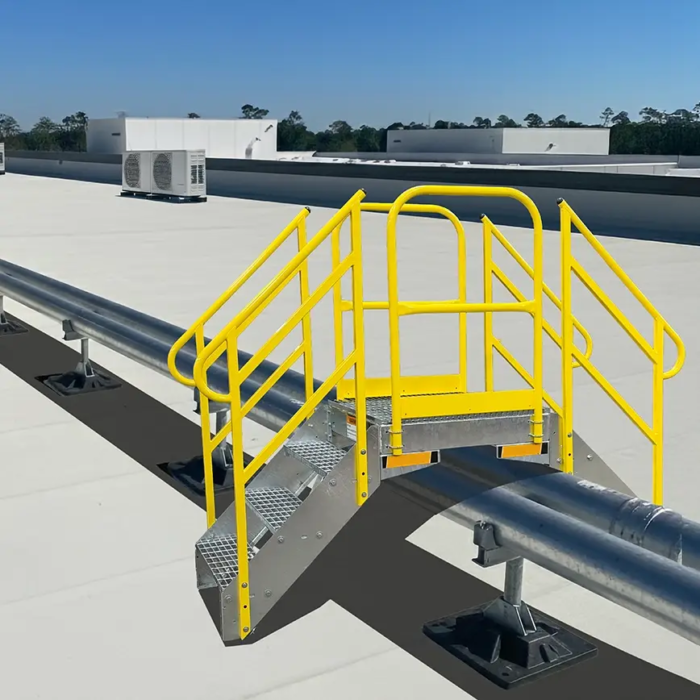

The Crossover Stair Bridge allows for safe access over pipes, expansion joints and equipment or up to elevated areas. The system uses modular, bolt-together components to construct double-sided crossover stairs. Metal stairs, platforms, heavy-duty handrails, and support towers can be combined in any number of ways to fill your unique needs. This heavy-duty bolt-together design can be quickly assembled on-site and requires no fabrication or onsite welding.

NOTE: Please refer to the tab ‘Models‘ below to better understand system measurements and dimensions for your application.
SKU: GAR-CROSSOVER Category: Tag:

Description

The Crossover Stair Bridge allows for safe access over pipes, expansion joints and equipment or up to elevated areas. The system uses modular, bolt-together components to construct double-sided crossover stairs. Metal stairs, platforms, heavy-duty handrails, and support towers can be combined in any number of ways to fill your unique needs.

This heavy-duty bolt-together design can be quickly assembled on-site and requires no fabrication or onsite welding. The components can be brought up through a hatch, so no hoisting is required. The 36” wide stairs can range from a single step up to seven steps before a connection is required to a work platform. Up to three 36” X 36” work platforms can be attached together without the need for a support tower creating a 9’ long span over large or wide obstacles. The continuous handrails meet all OSHA requirements and provides increased safety.

The system ships flat saving freight costs and are assembled with simple hand tools. Limited customization and custom sizing available.

Features & Benefits:

Aluminum Crossover Stair Bridge Aluminum Crossover Stair Bridge Aluminum Crossover Stair Bridge Aluminum Crossover Stair Bridge Aluminum Crossover Stair Bridge Aluminum Crossover Stair Bridge
Integrated holes for customer
provided anchors		 Heavy duty treads with high traction for safety Platform gussets add extra strength and stability Heavy duty slip resistant grating on 36” X 36” working surface Simple bolts and set screws to
construct OSHA compliant handrail		 Continuous handrail system for increased safety
  • Meets OSHA Requirements 1910.25, 1910.28, 1926.451(f) (16)
  • Modular system quickly bolts together for fast installation with no welding
  • Assembled on-site and components can be brought up through most hatches
  • Many configurations are possible using flexible components
  • Eliminates custom onsite fabrication where OSHA compliance can be suspect
  • Continuous handrail system provides increased safety
  • High traction open treads and platform for best in class slip resistance
  • 36” wide system accommodates people and the tools and supplies they need to carry
  • Heavy-duty steel components make rigid and stable structures
  • Hot dipped galvanized components resist the element for long life
  • Integrated anchoring locations built-in for customer supplied anchors

**CAUTION WARNING** This fall protection system is designed to ensure your safety when used correctly. To prevent serious injury or death, it is imperative that you strictly adhere to the manufacturer's instructions. Only operate this system if you have received proper training. In accordance with OSHA regulations, it is mandatory to involve a Qualified Person for the design and installation supervision of all fall arrest and restraint systems, including the product highlighted on this page. To access detailed instructions, please download the system manuals from the 'Downloads' tab on each product page. For any inquiries or clarifications, feel free to contact us. Your safety is our top priority!

Aluminum Crossover Stair Bridge - Components
  • Handrail / Kneerail
    Handrail posts constructed using 1.25” schedule 40 hot-dipped galvanized pipe with round profiled handrails and kneerails attached to posts. Set screw and bolt attachments.
  • Platform
    The platform is 36” wide, 36” long, 6” high, with the surface constructed of open grating with high traction surface and solid tread nosing. Six bolts tread to platform, 8 bolts platform to platform.
  • Staircase (2 sides)
    Heavy duty treads with high traction for safety while ascending and descending to and from the platform.
  • Support Brackets
    Stair components connected using profiled brackets secured with Simple Bolts. Simple bolts and set screws to construct OSHA compliant handrail.

2-step platform
GAR-430-212-600

3-step platform
GAR-430-313-600

4-step platform
GAR-430-414-600
Aluminum Crossover Stair Bridge - 2 Step Platform Aluminum Crossover Stair Bridge - 4 Step Platform Aluminum Crossover Stair Bridge - 3 Step Platform
Aluminum Crossover Stair Bridge - 2 Step Platform Aluminum Crossover Stair Bridge - 3 Step Platform Aluminum Crossover Stair Bridge - 4 Step Platform
Overall height
(inches)		 Lower Platform Height
(inches)		 Gusset Clearance
(inches)		 Overall Length
(inches)		 Weight
(lbs.)
2 Stair Tread 70.75 23 17.5 76.75 395
3 Stair Tread 80.38 32.5 27 95.75 485
4 Stair Tread 90 42 36.5 114.75 575

Overall System

  • Meets OSHA Requirements: 1910.25, 1910.28, 1926.451(f) (16) & ASCE 7-10 table 4-1 for catwalks
  • Component material – Hot dipped galvanized steel
  • Max number of treads – Seven treads before platform attachment required
  • Number of platforms without vertical support member – Three 36” platforms for 9’ of linear clearance
  • Anchoring – Anchoring holes provided for user-supplied anchors
  • Product weights – 2-step weighs 395 lbs., 3-step weighs 485 lbs., 4-step weighs 575 lbs.

Tread System

  • Tread dimensions – 9.625” depth, 36” wide, 1.25” high with 9.5” spacing between treads
  • Tread surface – Open grating with high traction surface and solid tread nosing

Handrail System

  • Pipe material – 1.25” schedule 40 hot dipped galvanized pipe
  • Fittings – Hot dipped galvanized with set screw and bolt attachment
  • Hand rail height – 42” top rail, field installed mid-rail at 21

Platform System

  • Dimensions – 36” wide, 36” long, 6” high
  • Platform surface – Open grating with a high traction surface
  • Fastening – Six bolts tread to the platform, 8 bolts platform to platform
