Ballast Weight (for Wind Loading)
Original price was: $439.00.$426.00Current price is: $426.00.

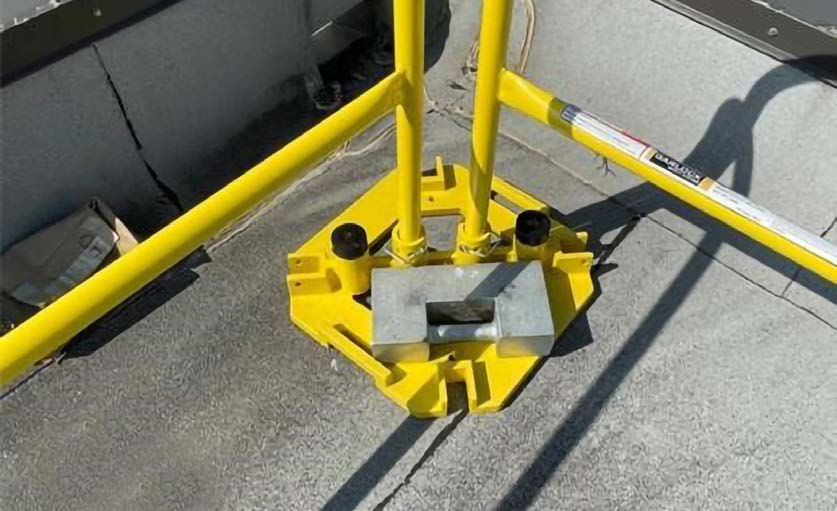

The Ballast Weight, weighing 58 lbs., is designed for additional wind loading in geographic locations with higher wind speeds. Made of cast iron with a galvanized finish.
System Description
The Ballast Weight, weighing 58 lbs., is designed for additional wind loading in geographic locations with higher wind speeds. Made of cast iron with a galvanized finish.
Ourย Steel Non-penetrating Guardrailsย enables fall protection without penetrating the floor and roof surface. When properly applied the counterweight system provides anย OSHA compliantย fall prevention system (1910.23(c)) for the roof edge, skylight, hatch, loading dock, mezzanine, elevated platform and construction site safety.
The Steel Guardrail System is a freestanding, non-penetrating railing system used for fall protection. It is designed to be a Motion Stopping Safety System thereby acting as a barrier between the worker and a fall hazard. This system will comply with all Federal OSHA standards found in 1926.500-503 and 1910.23.
Specifications
Ballast Weight:
| Weight | 58 lbs. |
| Material | Cast Iron |
| Finish | Galvanized |
Wind Load and Handling Guidelines:
CLASS 1ย covers geographic locations where winds do not historically exceedย 100 MPH. These locations should utilize our standard configuration with Return Kits no less than 5 feet long. Ballast weights are not required for this configuration.
CLASS 2ย covers geographic locations where winds do not historically exceedย 130 MPH. As with Class 1, these locations should utilize a standard configuration with Return Kits no less than 5 feet long. Ballast weights must be installed on ALL bases.
CLASS 3ย covers geographic locations where winds do not historically exceedย 150 MPH. As with Class 1 and 2, these locations should utilize a configuration of a 5-foot outrigger and base installed at 90 degrees from the run at the junction of every other rail. (2) Ballast weights must be installed on ALL bases.
Downloads
