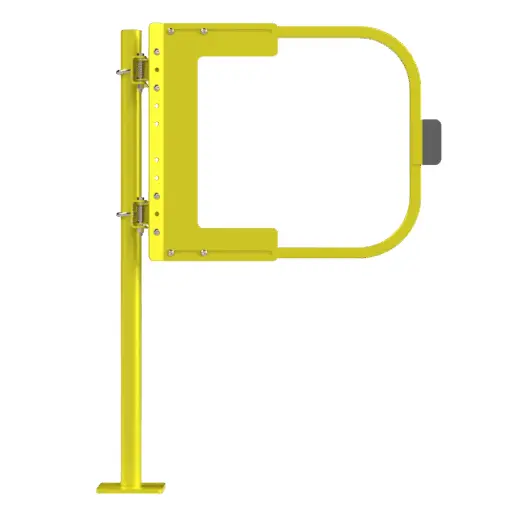

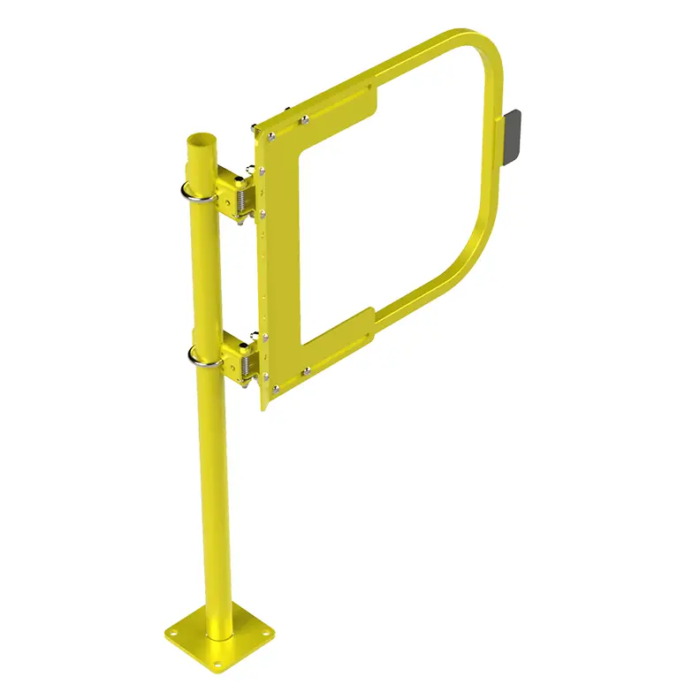

Single Self-Closing Safety Gate

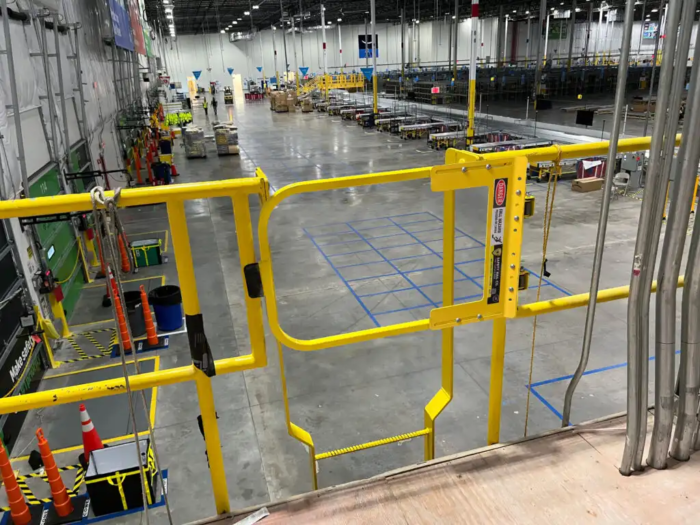

The Single Self-Closing Gate is an OSHA compliant, self-closing swing gate. This safety gate is ideal for elevated platforms, mezzanines and anywhere there is an opening in your railing system accessible by a ladder or stairway. The gate complies with OSHA railing standards and is Made in the USA.

Mounting Attachments: Universal mounting โ€” round bar, flat bar, or flat wall.
SKU: SRC-SINGLE-GATE Category: Tags: ,

System Description

The Single Ladder Safety Gate is an OSHA compliant, self-closing swing gate. This safety gate is ideal for elevated platforms, mezzanines and anywhere there is an opening in your railing system accessible by a ladder or stairway. The gate complies with OSHA railing standards and is Made in the USA.

Add a convenient entrance or exit point to your fall-protection system with this self-closing gate, able to be mounted on a round post, square post, flat post, wall, or door and made to fit openings of various widths depending on the type of mounting hardware.

Features & Benefits:

Our Single Self-Closing Safety Gates are designed for all indoor and outdoor applications that require OSHA compliant fall protection or barrier guarding – 1910.28 (b)(3)(iv) and 1910.29 (b)(13)(i). Commonly used in industrial, commercial and work-site construction environments as a permanent or portable solution. Works in conjunction with new or existing Access and Crossover Ladders, Rail Systems, Wall and Door Openings, Machine Guarding, Mezzanines, and many more applications.

  • Heavy duty construction ideal for commercial and industrial environments
  • Self-closing hinge utilizes durable stainless steel torsion springs
  • Universal hinge allows for right-hand or left-hand mounting orientation
  • Multiple mounting options available
  • All hardware included for simple installation
  • American Welding Society Certified (AWS D1.1 & D1.3)
  • 100% Made in USA
  • Powder coat, galvanized and stainless steel available
  • Custom RAL colors available (Please call us or send us a message)
  • Compliant with OSHA standard โ€“ 1910.28 (b)(3)(iv) and 1910.29 (b)(13)(i)

**CAUTION WARNING** This is a fall protection system. The system must be used in strict conformance with the manufacturerโ€™s instructions. Failure to do so may result in serious injury or death. You can download the system manuals from the โ€˜Downloadsโ€™ tab. You are also encouraged to contact us in case of any questions.

Models, Sizes & Finishes

Powder Coat Yellow โ€” 16″ to 39″
Single Self-Closing Safety Gate - Powdercoat Safety Yellow Item Number (SKU) Fits Opening Dim. – Min. to Max. Weight (lbs.)
SRC-401654 16″ to 22″ ADJUSTMENT RANGE 14
SRC-401655 19โ€ to 25โ€ ADJUSTMENT RANGE 15
SRC-401656 26โ€ to 32โ€ ADJUSTMENT RANGE 16
SRC-401657 33″ to 39″ ADJUSTMENT RANGE 17
Galvanized โ€” 16″ to 39″
Single Self-Closing Safety Gate - Galvanized Item Number (SKU) Fits Opening Dim. – Min. to Max. Weight (lbs.)
SRC-401674 16″ to 22″ ADJUSTMENT RANGE 14
SRC-401675 19โ€ to 25โ€ ADJUSTMENT RANGE 15
SRC-401676 26โ€ to 32โ€ ADJUSTMENT RANGE 16
SRC-401677 33″ to 39″ ADJUSTMENT RANGE 17

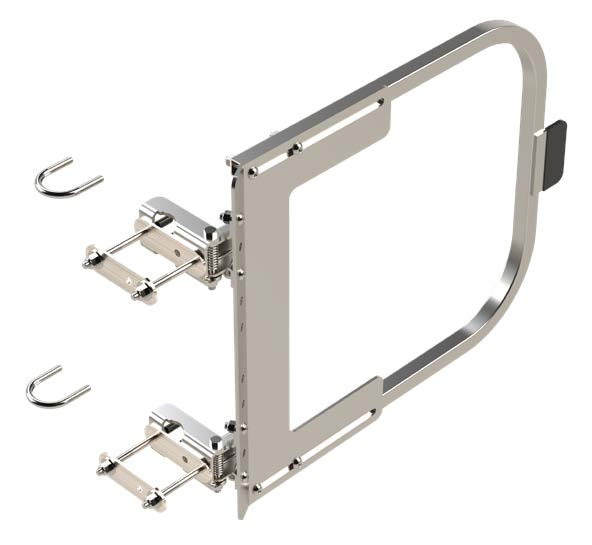

Stainless Steel โ€” 16″ to 39″
Single Self-Closing Safety Gate - Stainless Steel Item Number (SKU) Fits Opening Dim. – Min. to Max. Weight (lbs.)
SRC-401694 16″ to 22″ ADJUSTMENT RANGE 14
SRC-401695 19″ to 25″ ADJUSTMENT RANGE 15
SRC-401696 26″ to 32″ ADJUSTMENT RANGE 16
SRC-401697 33″ to 39″ ADJUSTMENT RANGE 17

Standard Technical Data

PRODUCT SPECIFICATIONS:

  • Compliant with OSHA Standard: 29 CFR 1910.23(a)(2)
  • Tested for 200 lb (90.7kg) force in outward and downward directions
  • Assembled height: 42โ€ (107cm) top rail, 21โ€ (53cm) mid-rail
  • Gate body material 3/16โ€ (4.76mm) flat steel; gate arm material 1โ€ (25.4mm) x 14GA square tube
  • Stainless steel torsion springs: Material 302SS 0.105โ€D
  • 100% Made in USA

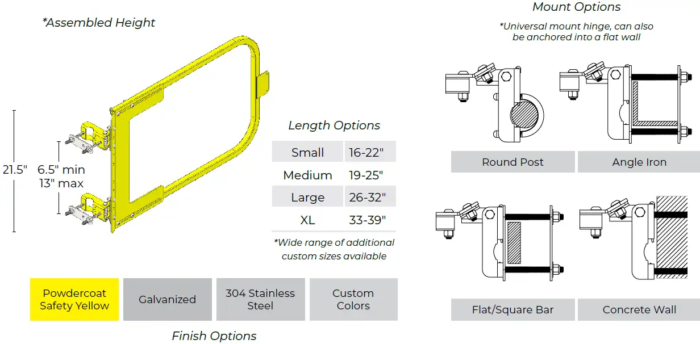

DIMENSIONS & LENGTH OPTIONS:

INSTALLATION:

  • All mounting hardware provided
  • Install top of gate at 42โ€ (107cm) resulting in 21โ€ (53cm) mid-rail height required by OSHA
  • Single person installation
  • Intended for both interior and exterior uses
  • Estimated time to completion: 15 minutes

COMPLIANCE:

  • Compliant with OSHA standards for guardrails: (29 CFR 1910.29 & 29 CFR 1926.502)
