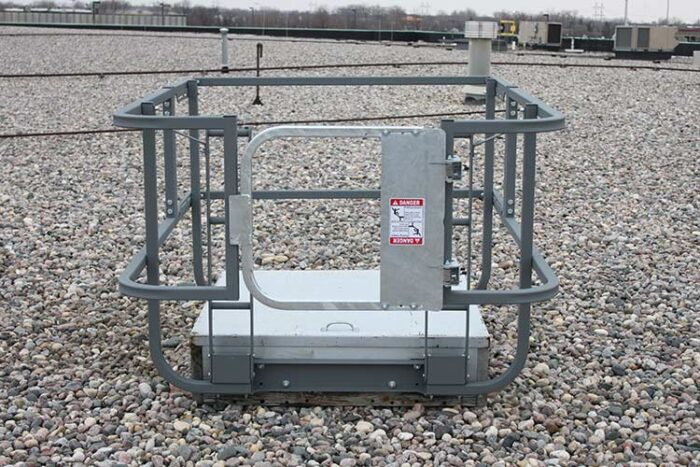

Roof Hatch Fixed Guardrail

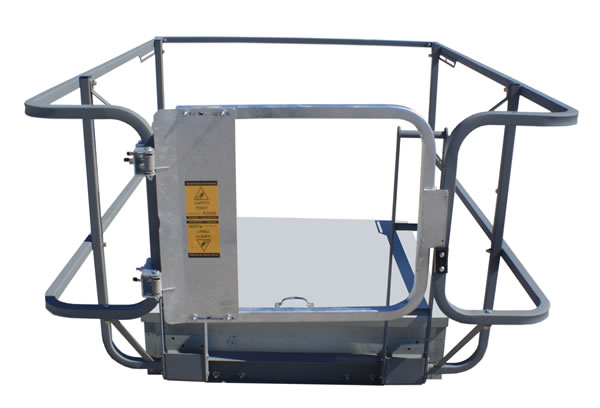

The Roof Hatch Fixed Guardrailย is a full railing system with a self-closing safety gate and integrated grab bars. This product is designed specifically for roof hatch openings. Provides roof safety with this permanent, four-sided protective railing.
System Description
The Roof Hatch Fixed Guardrail is a full railing system with a self-closing safety gate and integrated grab bars. This product is designed specifically for roof hatch openings. Provides roof safety with this permanent, four-sided protective railing.
Never leave your roof hatch opening unprotected! This is a full perimeter railing system complete with an Integrated Ladder Safety Gate and Horizontal Grab Bars. This product provides permanent, four-sided protection designed specifically for your roof hatch opening, ensuring a safe, stable grip for employees entering and exiting the roof hatch.

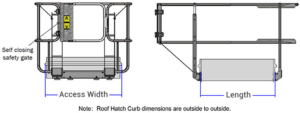

DIMENSION REFERENCE:

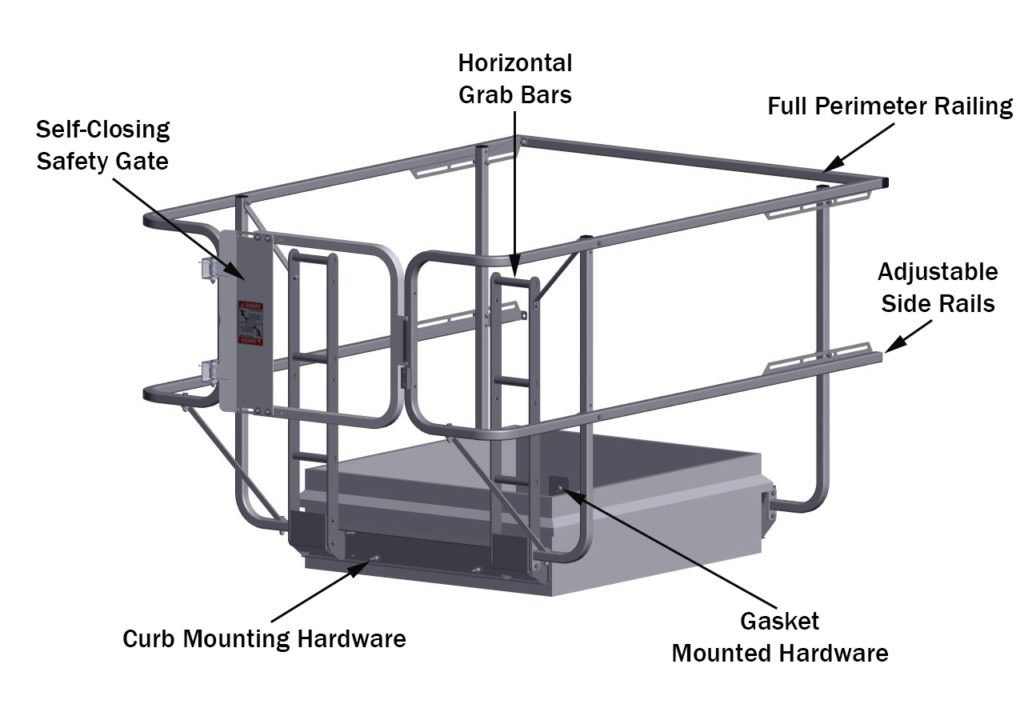

Features & Benefits:
- Adjustable to properly fit roof hatch curb irregularities, attaches to existing curb.
- Full railing around roof hatch opening.
- Increased safety and fall protection.
- Permanent, reduces the โHuman Factorโ.
- Stylish appearance.
- Ships knocked-down for easy shipping, handling and transporting to installation area. Includes all hardware for installation.
- Bolts to roof hatch curb with gasketed connection.
- Railing meets OSHA Standard 1910.23 (a) (2). Designed to meet federal OSHA safety railing requirements.
- Self-Closing Gate for added safety.
- Horizontal Grab Bars for climbing assist.
- Hot-dip galvanized finish for durability in outdoor environments.
Models
| Item Number (SKU) | Width & Length (refer to diagram below) | Weight (lbs) |
| PSD-4848MG | Width – 30″ x 48″ & Length – 30″ x 48″ (Stock size) | 225 |
| PSD-4866MG | Width – 30″ x 48″ & Length – 48″ x 66″ (Stock size) | 235 |
| PSD-4884MG | Width – 30″ x 48″ & Length – 66″ x 84″ (Non-stock size) | 245 |
| PSD-48102MG | Width – 48″ x 54″ & Length – 84″ x 102″ (Non-stock size) | 245 |
| PSD-6048MG | Width – 48″ x 60″ & Length – 30″ x 48″ (Non-stock size) | 230 |
| PSD-6066MG | Width – 48″ x 60″ & Length – 48″ x 66″ (Non-stock size) | 240 |
| PSD-6084MG | Width – 48″ x 60″ & Length – 66″ x 84″ (Non-stock size) | 250 |
| PSD-60102MG | Width – 48″ x 60″ & Length – 84″ x 102″ (Non-stock size) | 250 |
Standard Technical Data
MATERIAL:
- Railings, self-closing safety gate and posts: Formed 1-1/4″ square, 11-gauge mild steel tubing.
- Gate Operation allows for 180ยฐ travel.
FINISH:
- Railing and horizontal grab bars: All exposed surfaces to be non-skid powder coat gray.
- Self-closing safety gate: Hot-dipped galvanized.
HARDWARE:
- Gate Operation allows for 180ยฐ travel.
- Gate Hinge Plate: 10-gauge steel.
- Gate Hinge Springs: Torsion type, stainless steel. Includes two springs per gate, housed within hinge pivot.
PERFORMANCE RATING:
- The hatch railing system and self-closing safety gate meet OSHA railing standards for dimensions and loading 1910.28 and 1910.29.
INSTALLATION:
- Ships knocked-down for easy handling and transportation to installation site.
- Adjustable to properly fit roof hatch, curbing irregularities, attaches to existing curb (see measuring guide).
- Bolted into existing hatch curb.
- Includes all hardware required for installation.
Downloads
Request a Quote
By providing some basic information, we can provide you with a custom quotation or more product information.
If you prefer to speak with a fall protection expert just call us at (951) 465-7386 x 303 or email us at webstore@caisafety.com
These application and system specific forms are highly customized to help you provide system specific information about your fall protection requirements.
