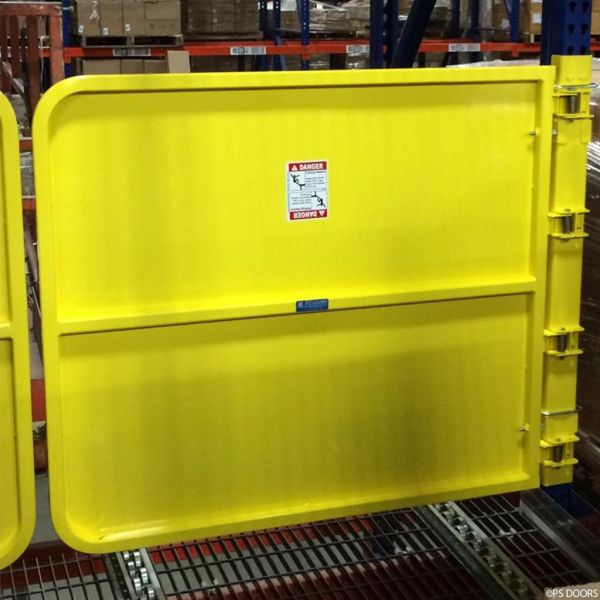

Pallet Rack Safety Gate

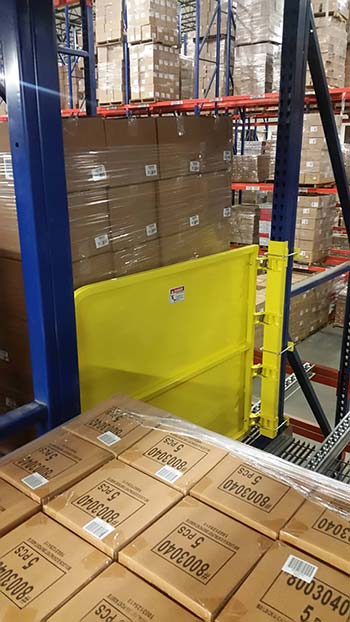

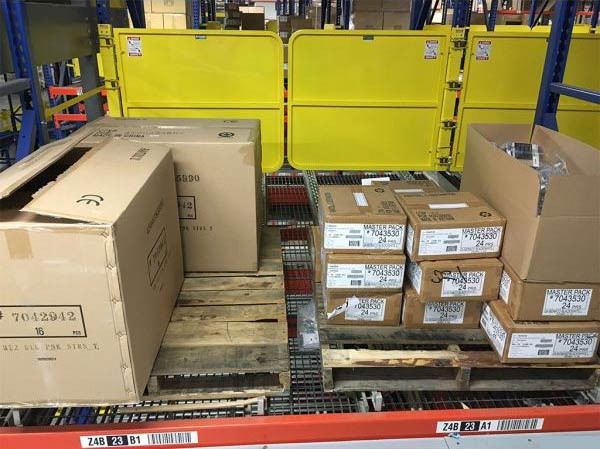

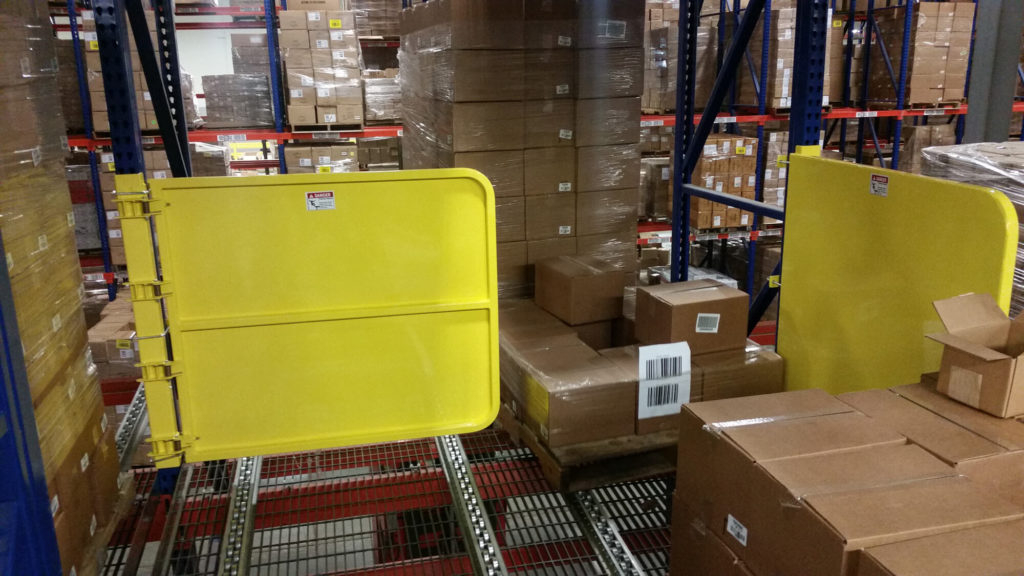

The Pallet Rack Safety Gate is a self-closing, dual gate system designed to fit existing rack systems. Simply forklift palletized material through the gates and back away. The spring loaded gate system self-closes along the platform edge, protecting personnel from dangerous falls.

NOTE: This product is currently not available for purchase online due to its complexity in configuration. Contact us for more detailed information about your application and requirements.

These application and system specific forms are highly customized to help you provide system specific information about your fall protection requirements.

CONTACT US / REQUEST QUOTE

System Description

The Safety Gate meets OSHA railing standards including a 42” high gate and safety toe board. This gate system is ideal for elevated pick modules with pallet flow systems, elevated working platforms and mezzanines.

Features & Benefit

SAFE, SELF-CLOSING GATE
Complies with OSHA Safety Railing Standard 1910.23(a)(2) including a 42″ high gate and mid-rail. Dual gate system is always in place, allowing one-way pallet flow while protecting employees from the mezzanine edge. Gates self-close by spring-loaded hinge.

QUICK INSTALLATION
Universal mounting brackets are compatible with any existing rack system and installs in minutes. Gates bolt on to railing system, no drilling required. Multi-bay configurations utilize shared mounting bracket. Available in standard sizes to fit 60″ wide and 96″ wide openings (custom sizing available).

DURABLE & ECONOMICAL
Durable mild steel gate construction with powder coat safety yellow finish. Stainless steel torsion springs are ideal for repetitive use and requires little or no maintenance. Economical cost.

**CAUTION WARNING** This is a fall protection system. The system must be used in strict conformance with the manufacturer’s instructions. Failure to do so may result in serious injury or death. You can download the system manuals from the ‘Downloads’ tab. You are also encouraged to contact us in case of any questions.

Models

INTERMEDIATE UNITS

Item Number (SKU)	Material	Opening Width	Gate Width	Gate Height
PSD-PRGAI-60-PCY	Intermediate Unit / Interior Hinge — (1) Interior Hinge unit — (2) 30″ gates	60″	30″ + 30″	42″
PSD-PRGBI-60-PCY	Intermediate Unit / Exterior Hinge — (1) Exterior Hinge unit — (2) 30″ gates	60″	30″ + 30″	42″
PSD-PRGAI-96-PCY	Intermediate Unit / Interior Hinge — (1) Interior Hinge unit — (2) 48″ gates	96″	48″ + 48″	42″
PSD-PRGBI-96-PCY	Intermediate Unit / Exterior Hinge — (1) Exterior Hinge unit — (2) 48″ gates	96″	48″ + 48″	42″

END UNITS – LEFT MOUNT

Item Number (SKU)	Material	Opening Width	Gate Width	Gate Height
PSD-PRGAL-60-PCY	End Unit / Interior Hinge / Left Mount — (1) Left Mount Interior Hinge Unit — (1) 30″ gate	60″	30″	42″
PSD-PRGBL-60-PCY	End Unit / Exterior Hinge / Left Mount — (1) Left Mount Interior Hinge Unit — (1) 30″ gate	60″	30″	42″
PSD-PRGAL-96-PCY	End Unit / Interior Hinge / Left Mount — (1) Left Mount Interior Hinge Unit — (1) 48″ gate	96″	48″	42″
PSD-PRGBL-96-PCY	End Unit / Exterior Hinge / Left Mount — (1) Left Mount Interior Hinge Unit — (1) 48″ gate	96″	48″	42″

END UNITS – RIGHT MOUNT

Item Number (SKU)	Material	Opening Width	Gate Width	Gate Height
PSD-PRGAR-60-PCY	End Unit / Interior Hinge / Right Mount — (1) Right Mount Interior Hinge Unit — (1) 30″ gate	60″	30″	42″
PSD-PRGBR-60-PCY	End Unit / Exterior Hinge / Right Mount — (1) Right Mount Interior Hinge Unit — (1) 30″ gate	60″	30″	42″
PSD-PRGAR-96-PCY	End Unit / Interior Hinge / Right Mount — (1) Right Mount Interior Hinge Unit — (1) 48″ gate	96″	48″	42″
PSD-PRGBR-96-PCY	End Unit / Exterior Hinge / Right Mount — (1) Right Mount Interior Hinge Unit — (1) 48″ gate	96″	48″	42″

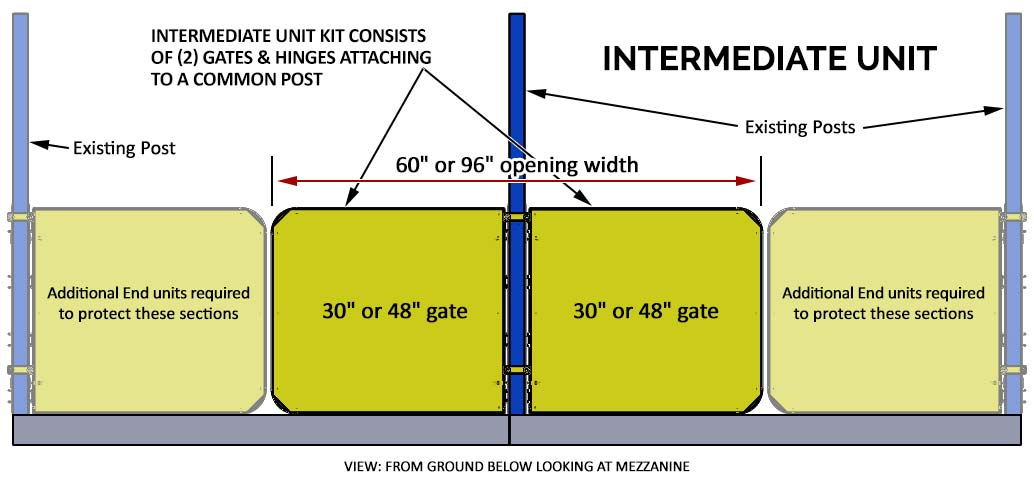

Intermediate Units

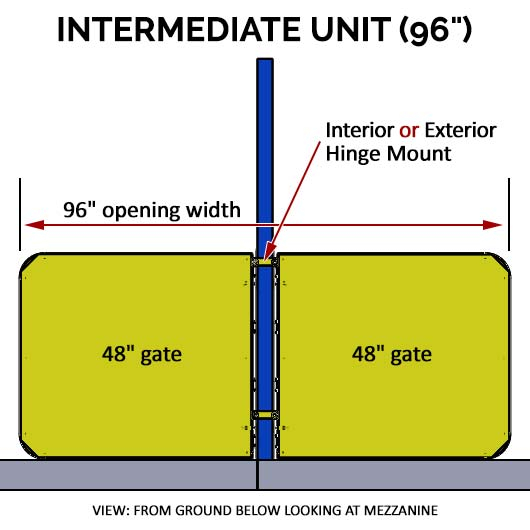

Intermediate Unit

End Units

End Unit (Left Mount)	End Unit (Right Mount)

STEP 1: Choose type of Unit – Left Mount or Right Mount. STEP 2: Choose how you would like the Hinges to be mounted onto your existing post – Interior Mount or Exterior Mount. STEP 3: Measure and select the Opening Width you wish to cover (60″ or 96″). STEP 4: Order the appropriate *quantities* required to set up the Pallet Rack Gate for your fall protection needs.

End Unit (Left Mount)

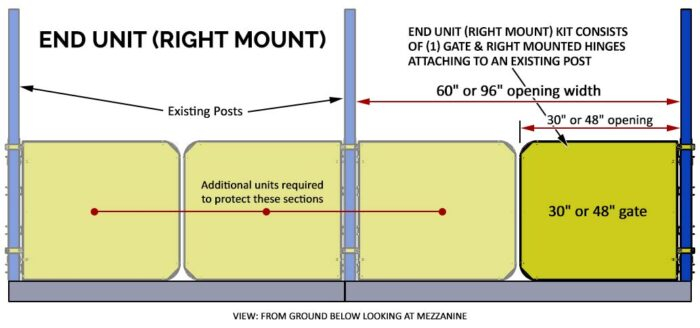

End Unit (Right Mount)

STEP 1: Choose type of Unit – Left Mount or Right Mount.
STEP 2: Choose how you would like the Hinges to be mounted onto your existing post – Interior Mount or Exterior Mount.
STEP 3: Measure and select the Opening Width you wish to cover (60″ or 96″).
STEP 4: Order the appropriate quantities required to set up the Pallet Rack Gate for your fall protection needs.

Interior & Exterior Hinge Mounts

Interior Hinge Mount	Exterior Hinge Mount
The interior hinge allows the gate to be mounted by penetrating the existing rivets of your safety rack posts.	The exterior hinge allows the gate to be mounted around the intermediate or existing post, without penetrating the post.
