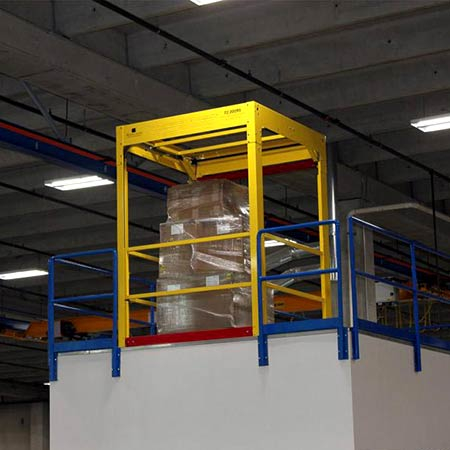

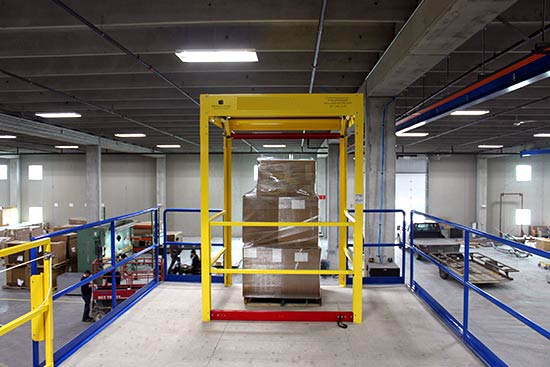

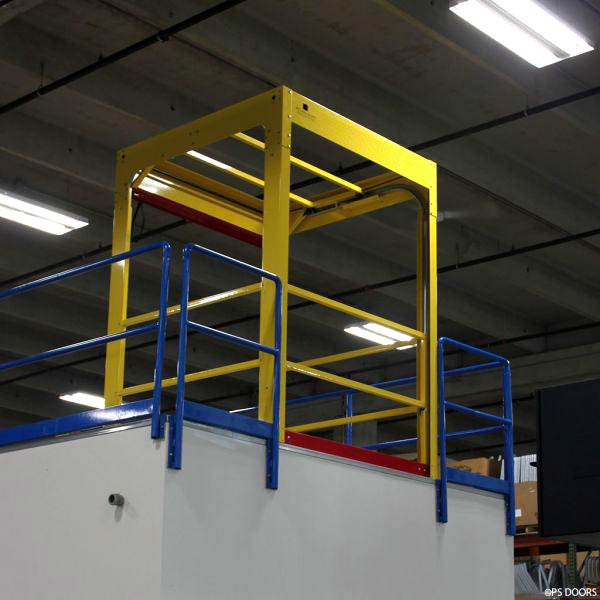

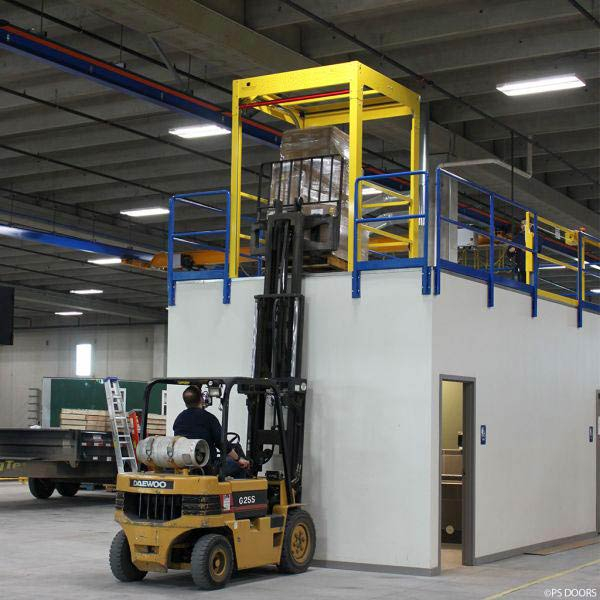

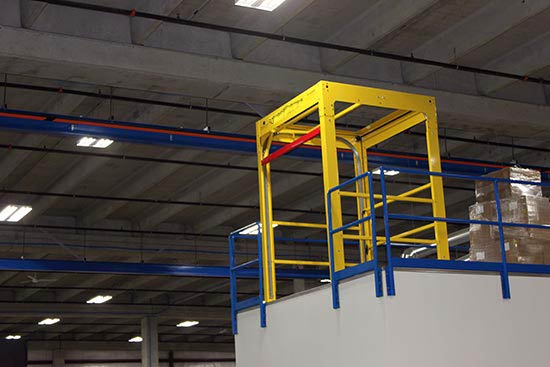

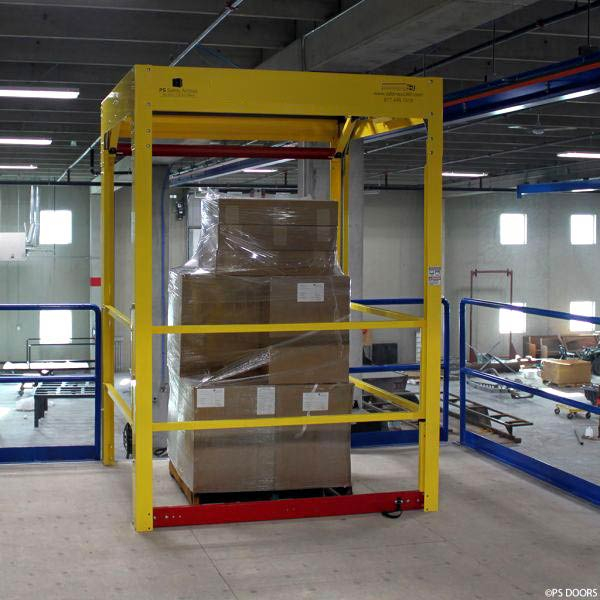

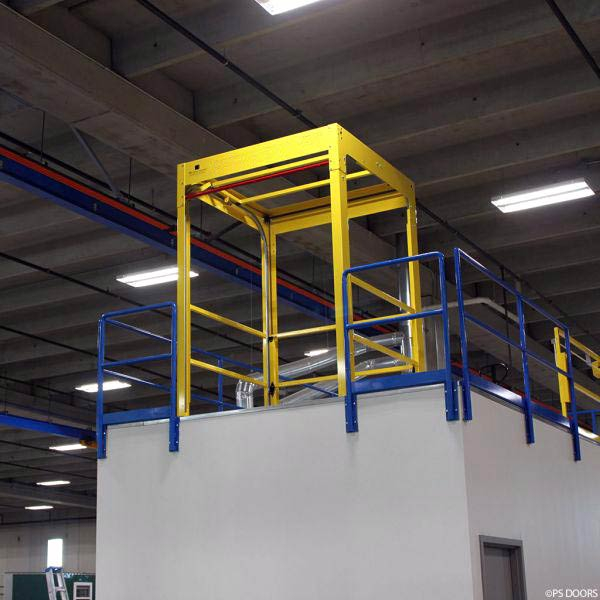

Mega Dual Mezzanine Safety Gate

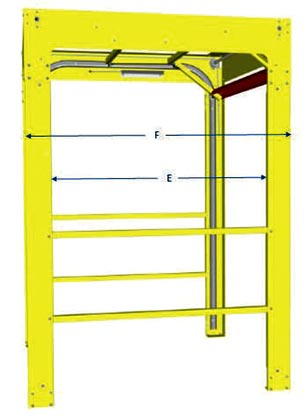

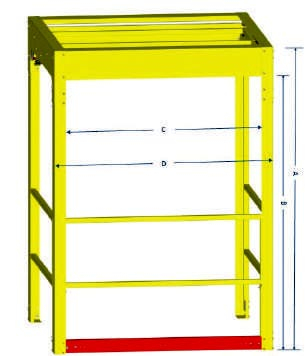

What makes the Mega Dual Mezzanine Safety Gate unique is that you can protect single or multiple pallet loading areas simultaneously. Ranges vary from loading zone dimensions of 60″ x 59″ all the way to 100″ x 169″. The Mega Dual safety gate allows you to maintain a fully contained loading area to protect employees who are working on top of elevated surfaces such as mezzanines and platforms.

The OSHA and ANSI Compliant mezzanine gate creates a foolproof enclosed area that keeps workers safe from the elevated mezzanine edge.

Features & Benefits:

SAFE TO OPERATE & REDUCES ACCIDENTS

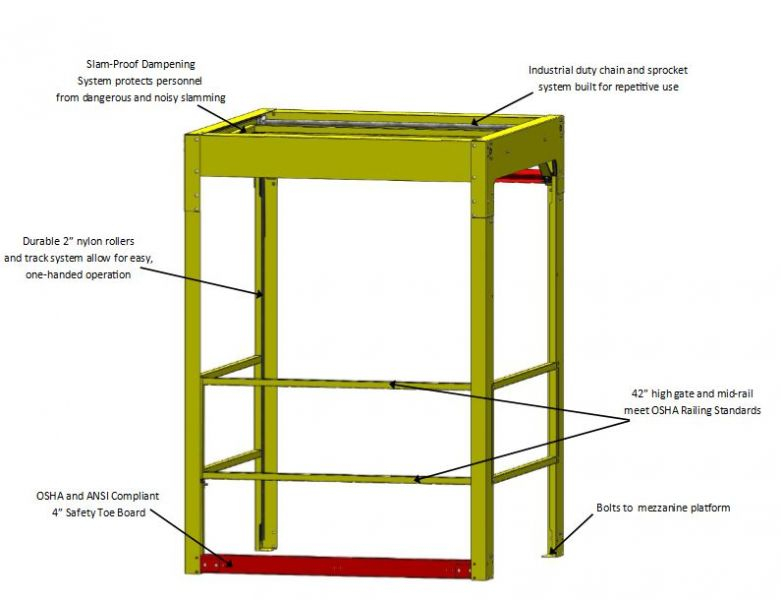

The Counterbalanced gate system means that the pallet loading area is always fall protection protected and provides 360 degrees of mezzanine ledge protection. The chances of foot injuries are reduced due to the slam-proof cushioned dampening system that prevents the harmful and noisy slamming.

ROBUST CONSTRUCTION
Constructed with heavy gauge steel ideal for industrial and frequent operation. Industrial-duty chain and sprocket operating system supports repetitive use. Durable, safety yellow powder coat finish on all exposed, non-prefinished components.

USER FRIENDLY

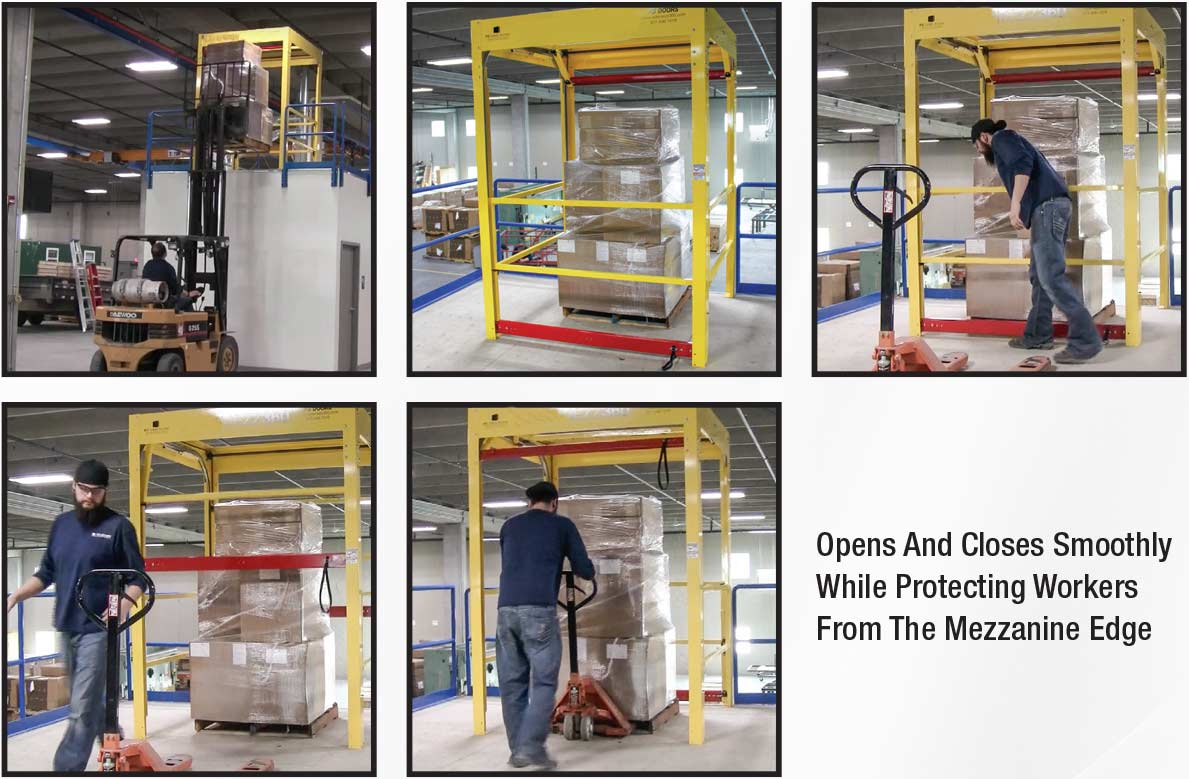

Durable 2″ nylon rollers and track system allow for smooth, one handed operation. Counteracting design means the gate is always lowered over the inbound or leading edge area when loading zone needs to be accessed by personnel. This feature intended to reduce the possibility of operator error and increase productivity. System ships fully fabricated and installed by bolting to the mezzanine platform.

COMPLIES WITH OSHA & ANSI STANDARDS
We go beyond the standards including the stringent ANSI MH28.3 Section 6.4.3 that states: “A work platform shall be designed such that the elevated surface is protected by the guards at all times. Gates that swing open, slide open or lift out, leaving an unprotected opening in the guarding, are not acceptable.” Includes 4-inch safety toe board. 42″ high gate and guardrail meets OSHA Safety Railing Standards.
