Fixed Vertical Ladders – Upto 20ft.
$1,266.00
The Fixed Vertical Ladders are constructed of high tensile strength aluminum, which make them lightweight, sturdy, and non-corrosive. The welded, serrated rungs and their splice-joined ladder bodies create a product with maximum safety that will last for years to come. Cut this unit to the exact size and assemble it on-site for a perfect fit.
NOTE: Please note that if you are looking for a ladder above 20ft. in length, a Fall Arrest system is required. Please visit Fixed Vertical Ladders (with Fall Arrest) page to purchase your ladder with a Fall Arrest system.

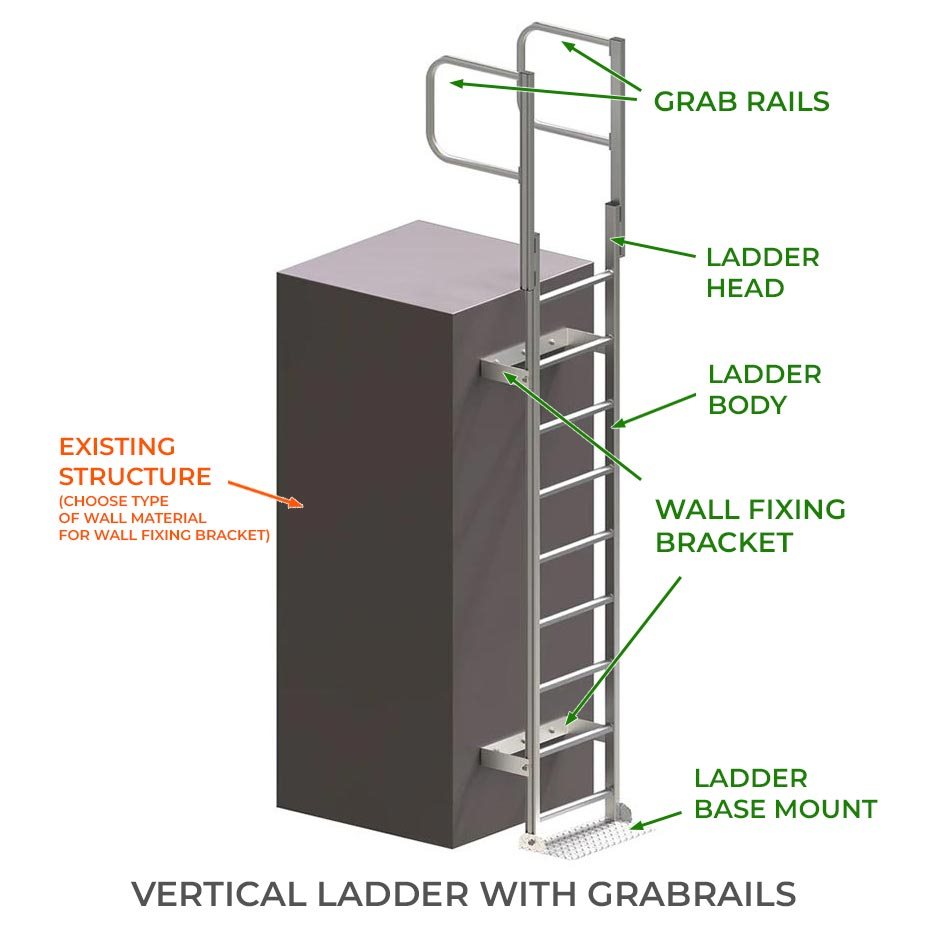

What components does this kit include ?
| Ladder with Grabrails | Ladder with Parapet Platform | Roof Hatch Ladder with Extensions |
|---|---|---|
| VERTICAL LADDER: Ladder Head (includes end caps), Ladder Body 94in., Ladder Module Kit 47in., Splice Join 24in. w/hardware, Grabrail Set, Wall Fixing Bracket 11in. and Kit, Ladder Base Mount, Ladder Fixing Kit. | VERTICAL LADDER: Ladder Head (includes end caps), Ladder Body 94in., Ladder Module Kit 47in., Parapet Platform – 39in L x 24in W, Parapet Guardrail Kit – Top Rail and Mid Rail, Splice Join 24in. w/hardware, Ladder Small Adjustable Fixing Bracket, Non-penetrating Base Plate – 24″ x 12″ (for Parapet Platform only), Wall Fixing Bracket 11in. and Kit, Ladder Base Mount, Ladder Fixing Kit. | VERTICAL LADDER: Ladder Body 94in., Ladder Module Kit 47in., Splice Join 24in. w/hardware, Retractable Stile Set, Wall Fixing Bracket 11in. and Kit, Ladder Base Mount, Ladder Fixing Kit. |
- System Description
- Components & Specifications
- Accessories
- Selections Explained
- Downloads
- REQUEST A QUOTE
- Videos
System Description

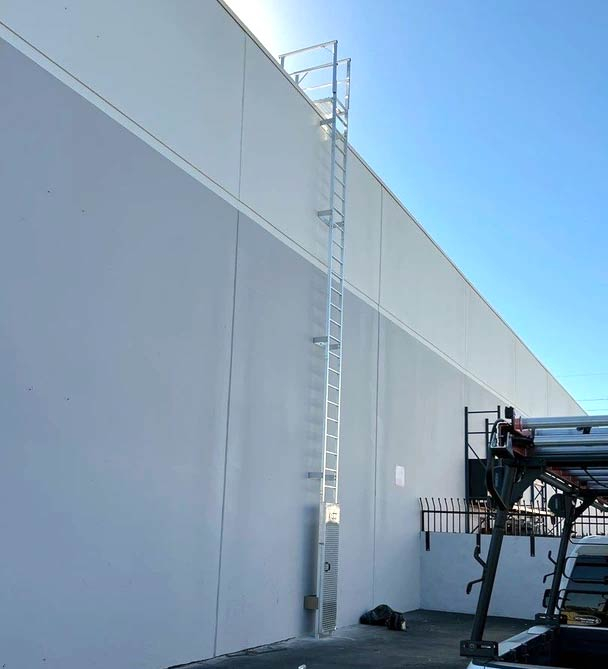

Experience the epitome of safety and efficiency with Fixed Vertical Ladders from CAI Safety Systems. They are constructed of high tensile strength aluminum, which make them lightweight, sturdy, and non-corrosive. The welded, serrated rungs and their splice-joined ladder bodies create a product with maximum safety that will last for years to come.

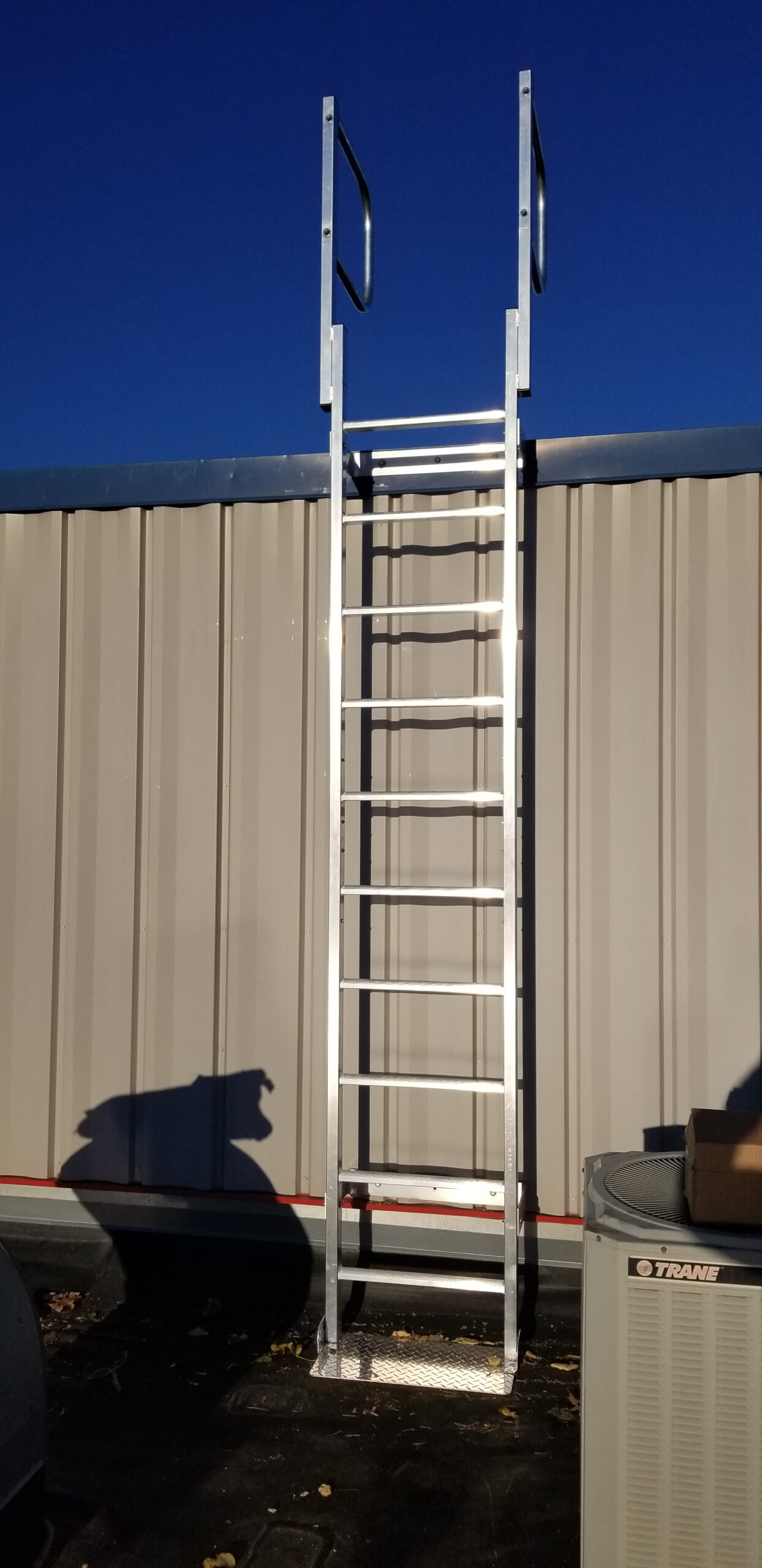

Grab rails mount at the ladder’s head, and another rail bolts at the top to ensure more safety when exiting the ladder.
Cut this unit to the exact size and assemble it on-site for a perfect fit. Plus, they deliver exceptional safety ratings and meet or exceed guidelines from OSHA and ANSI. CAI Safety Systems’ Fixed Vertical Ladders are available in multiple configurations to meet the needs of demanding applications.
Features & Benefits:
- Maximum flexibility: The Vertical Fixed Ladders feature modular construction for maximum flexibility. Each includes 1 ¼-inch serrated rungs welded to the stiles and ladder bodies connected with splice joints.
- Superior durability and strength: Constructed from high-grade structural aluminum, our vertical fixed ladders provide exceptional strength and durability, capable of supporting up to 1000 lbs. without failure.

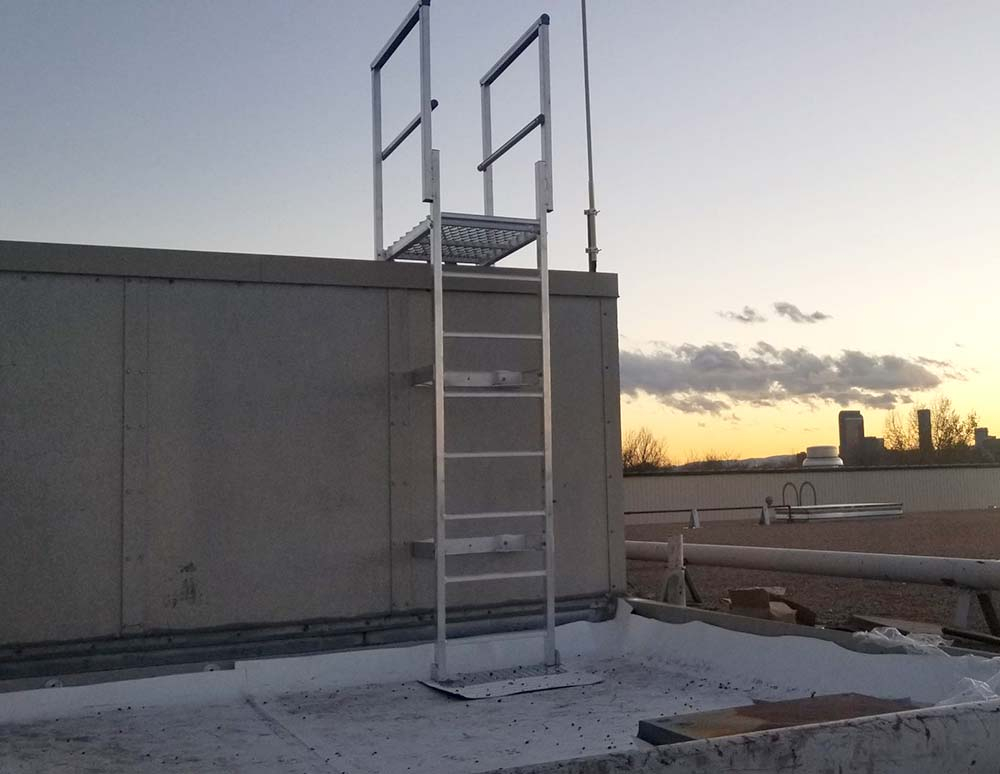

- Versatile design: With diverse designs, finding a great fit for your space has never been easier. The configurations include vertical fixed ladders with grab rails, vertical fixed ladders with parapet platforms and vertical fixed ladders with walkway systems.
- Excellent ergonomics: We prioritize safety and keep comfort in mind. Kattsafe Vertical Fixed Ladders are ergonomically designed to facilitate smooth ascents and descents. With optimal rung spacing and sturdy construction, workers can navigate with minimal risk of accidents.
- Easy installation: Minimize downtime and maximize productivity with our hassle-free installation process. Our lightweight ladders come with easy-to-follow instructions and components engineered to precision for a quick and efficient setup.
- Minimal maintenance: Thanks to their non-corrosive materials and robust build, there is no need to worry about costly maintenance with our vertical fixed ladders. Enjoy peace of mind knowing your ladder will provide reliable performance for years.
- Ordering is easy: All components are kitted into a single SKU.
- OSHA & ANSI Compliance: Designed to meet the requirements of the new ANSI standards, along with OSHA standards.
| Feature | Benefit |
|---|---|
| Aluminum Construction | Made out of durable, non-corrosive, high-tensile strength aluminum. Aluminum manufacturing allows for the below benefits |
| Ergonomic, Serrated Rung Design | Allows for higher levels of comfort and grip while climbing |
| Minimum Lead Time | In stock and ready to ship within 1-3 business days |
| Aesthetics | Our sleek aluminum fixed ladder systems enhance building aesthetics with a mill-finish or can be powder-coated to match your facade |
| Flatpack Shipping Kit | To facilitate ease of handling and bigger savings on freight costs |
| OSHA & ANSI Compliant | Our fixed ladder systems are designed and manufactured to meet and exceed OSHA and ANSI standards |
| Market Leading Warranty | Our 5-year warranty surpasses industry standards, offering greater long-term cost savings |
Components & Specifications

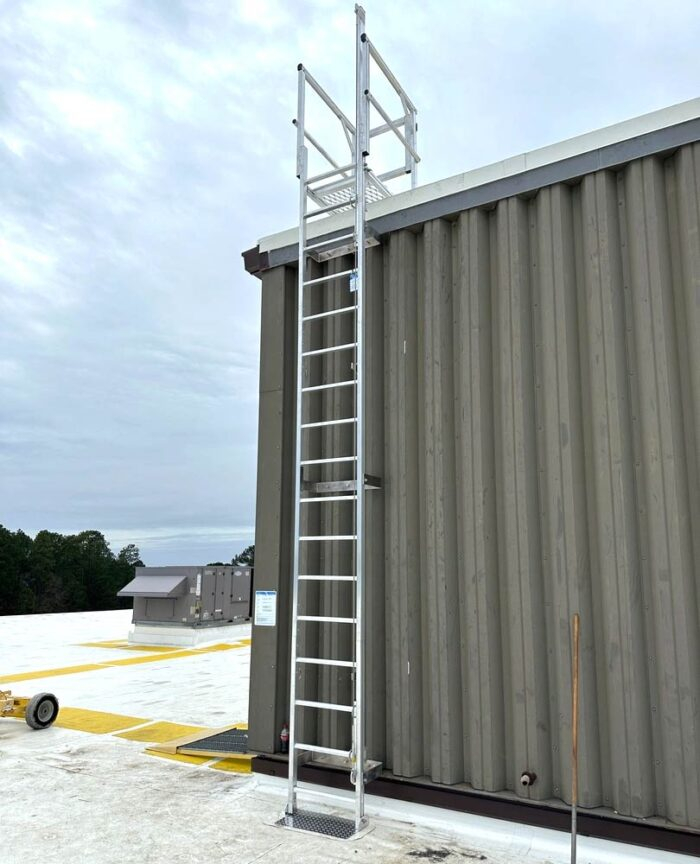

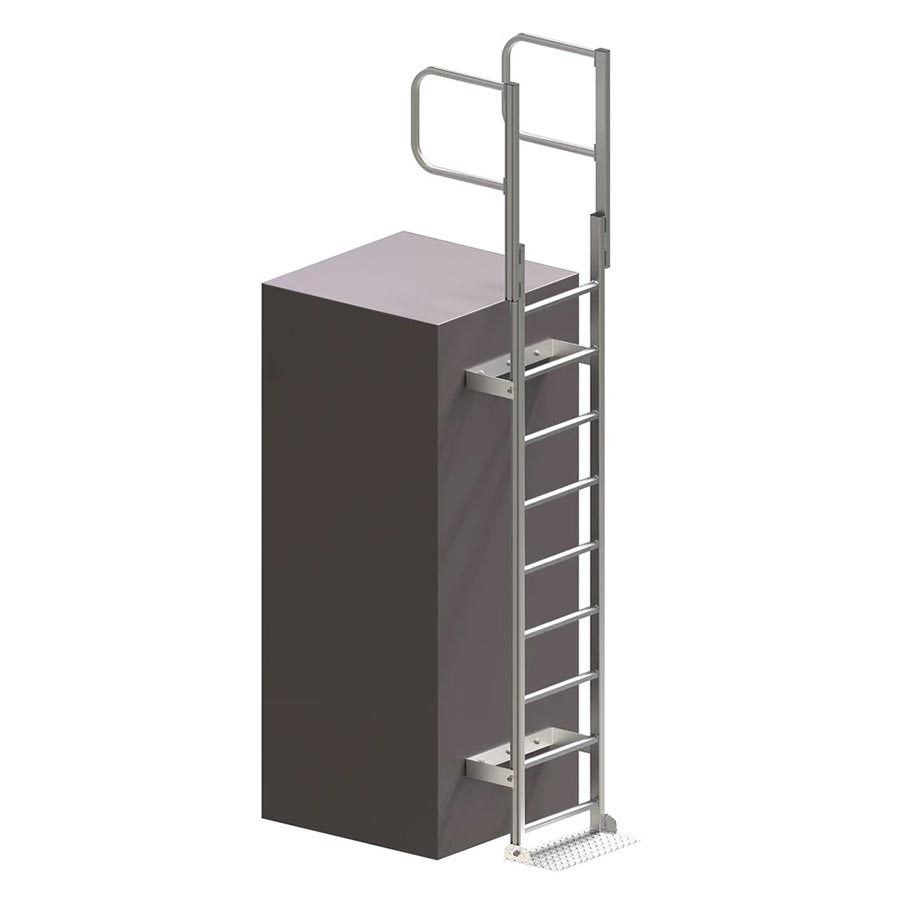

Ladder with Grabrails |

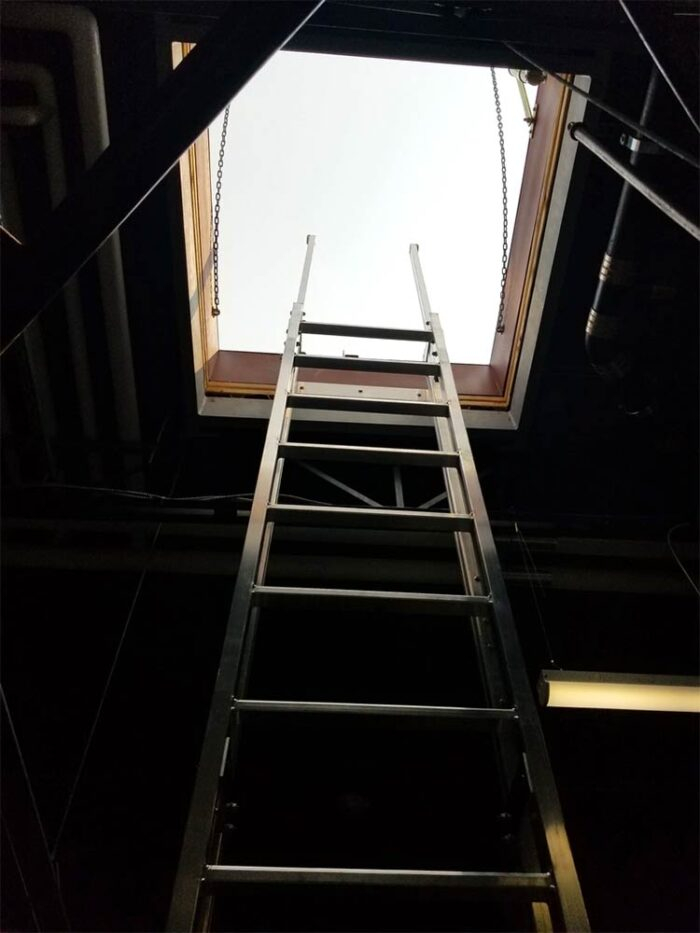

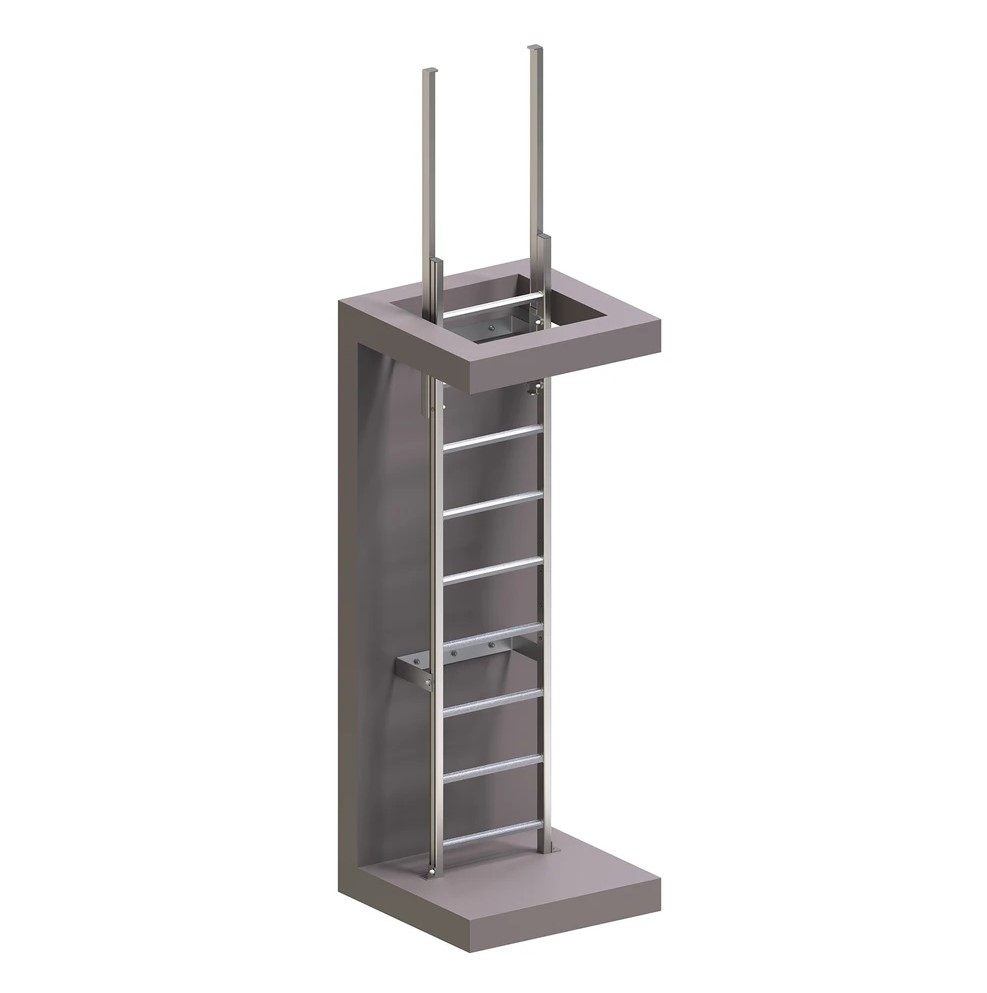

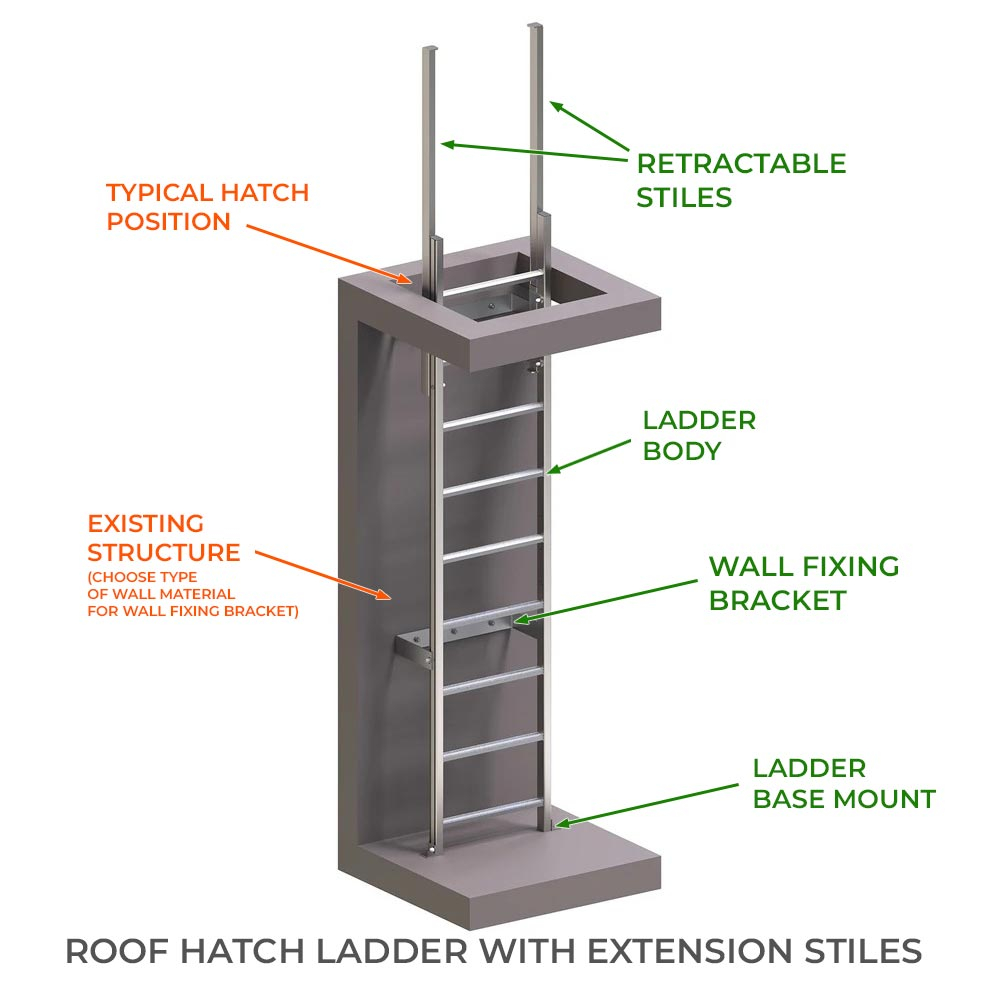

Roof Hatch Ladder with Extensions |

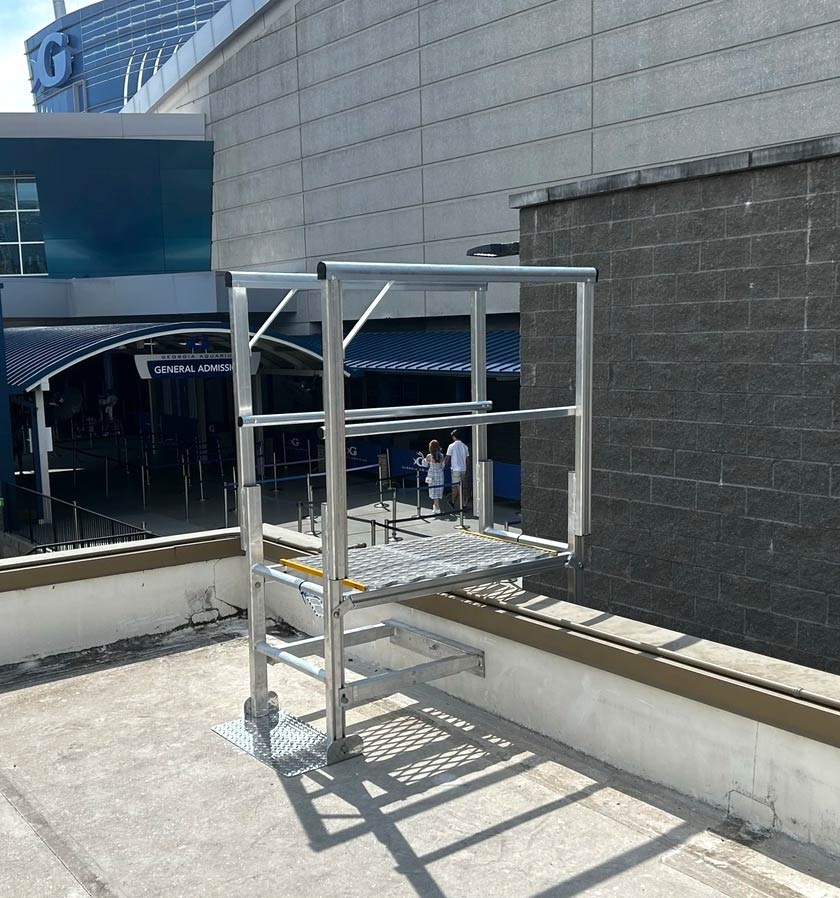

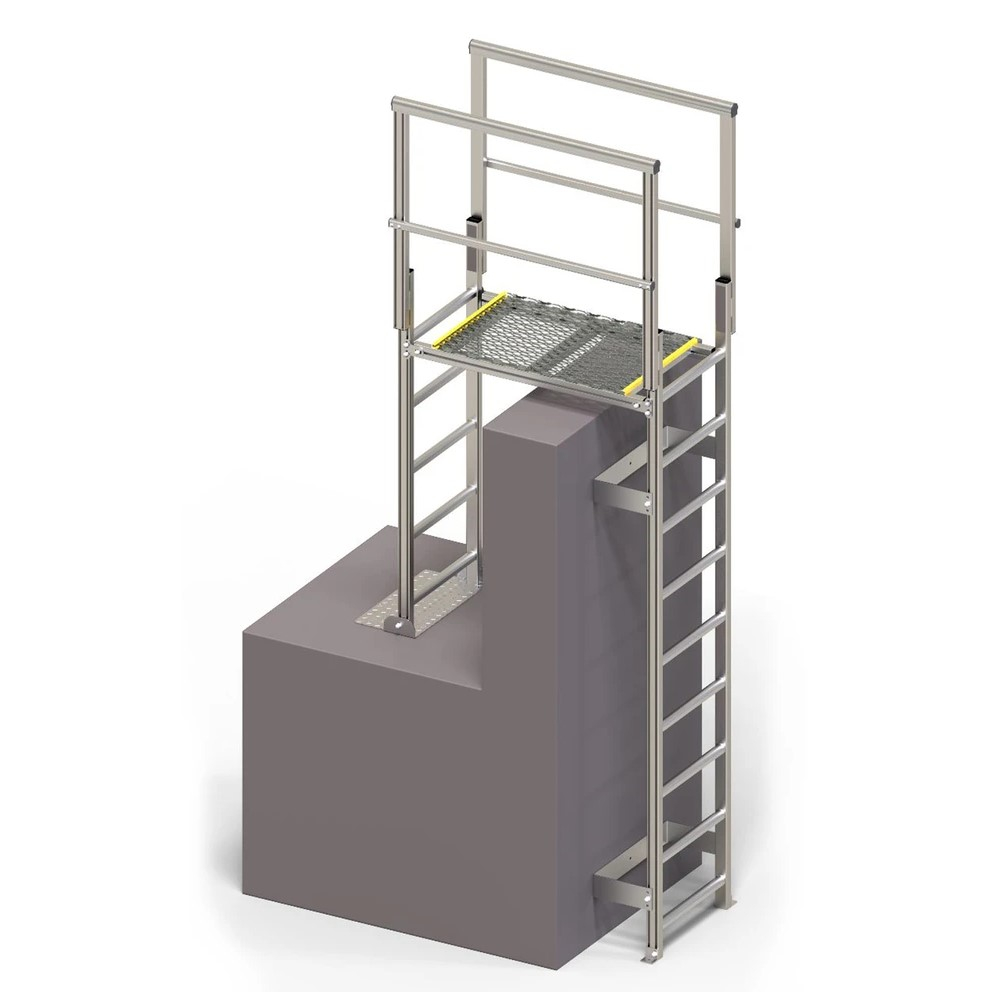

Ladder with Parapet Platform |
||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||
Material (Common to all ladders) |
||||||||||||||||||||||
|
||||||||||||||||||||||
Dimensions (Common to all ladders) |
||||||||||||||||||||||
|
||||||||||||||||||||||
Weight (Common to all ladders) |
||||||||||||||||||||||
|
||||||||||||||||||||||
Working Load Limit (Common to all ladders) |
||||||||||||||||||||||
| Unit shall support a 1000 lbs. loading without failure and individual treads shall withstand a 1000 lbs. loading without failure. Support structure integrity, suitability and fixing method to be assessed and determined by an engineer unless it is clear to a qualified person prior to installation. | ||||||||||||||||||||||
Compliance (Common to all ladders) |
||||||||||||||||||||||
| Designed and manufactured to meet and exceed OSHA standard 1910.23, 1910.28, CAL-OSHA 3277, and ANSI A14.3 requirements | ||||||||||||||||||||||
Product Warranty (Common to all ladders) |
||||||||||||||||||||||
| 5 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations. Failure to supply and/or install product in accordance with above standards and codes, specifications, and instructions voids complete system certification and/or warranty. | ||||||||||||||||||||||
Accessories
-
Sale!
Fixed Vertical Ladder + Fall Arrest System Accessories, Fixed Vertical Ladder & Ladder Cable Fall Arrest System Accessories, System Specific Trolleys, Ladder Fall Arrest AccessoriesCable Trolley/Traveler Device
Original price was: $475.00.$452.00Current price is: $452.00.FXF-SL228Add to cart -
Sale!
Fixed Vertical Ladder + Fall Arrest System Accessories, Fixed Vertical Ladder & Ladder Cable Fall Arrest System Accessories, Full Body Harnesses, Ladder Fall Arrest Accessories
Kattsafe Full-body Climbing Harness, Front & Back D-Rings, All Sizes
FXF-HARNESSSelect Options This product has multiple variants. The options may be chosen on the product page -
Sale!
Fixed Vertical Ladder + Fall Arrest System Accessories, Fixed Vertical Ladder & Ladder Cable Fall Arrest System Accessories

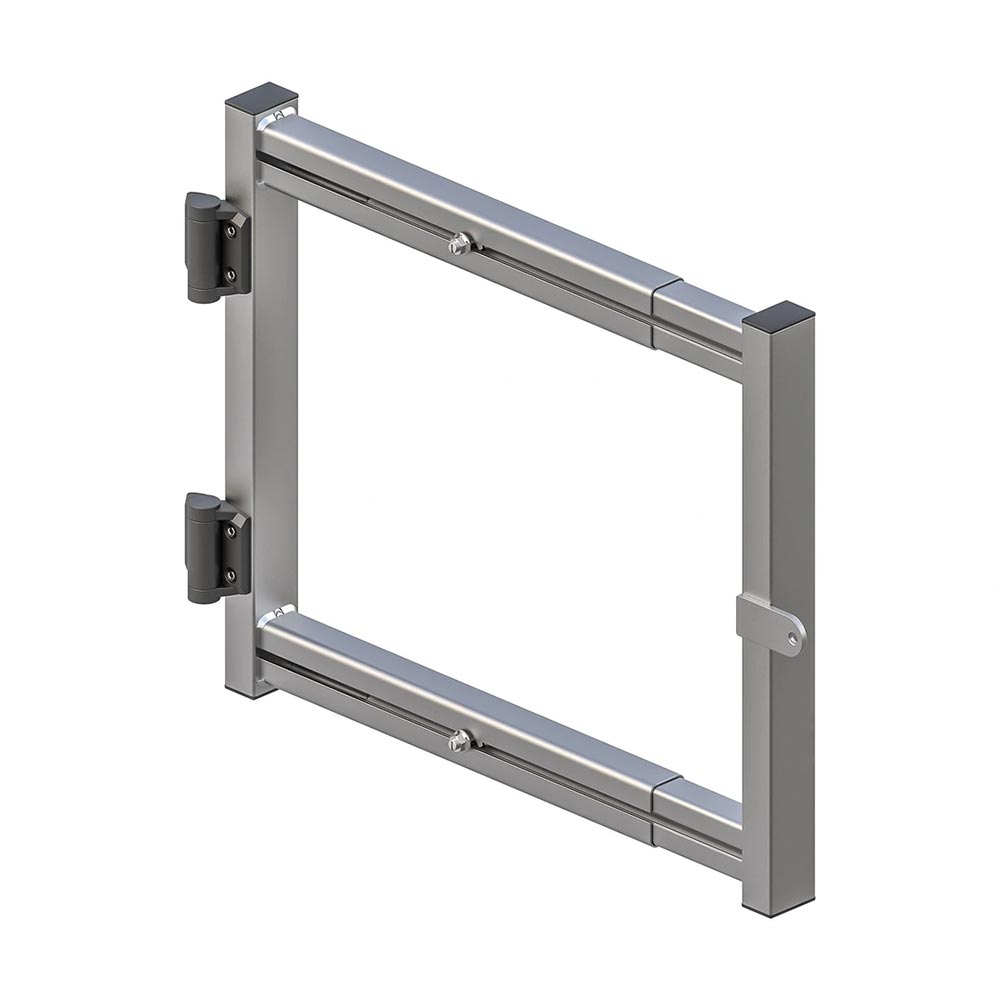

Self-closing Safety Gate – Adjustable 20in. to 35in.
Original price was: $359.00.$342.00Current price is: $342.00.FXF-GW390AAdd to cart
Selections Explained
Below is only an excerpt of the requirements for use. Please refer to the Manufacturer’s User & Instruction Manual in the ‘Downloads’ tab to find full and complete information about the Fixed Vertical Ladder & Ladder Cable Fall Arrest System.
Step 1 – Type Of Ladder
|
|
|

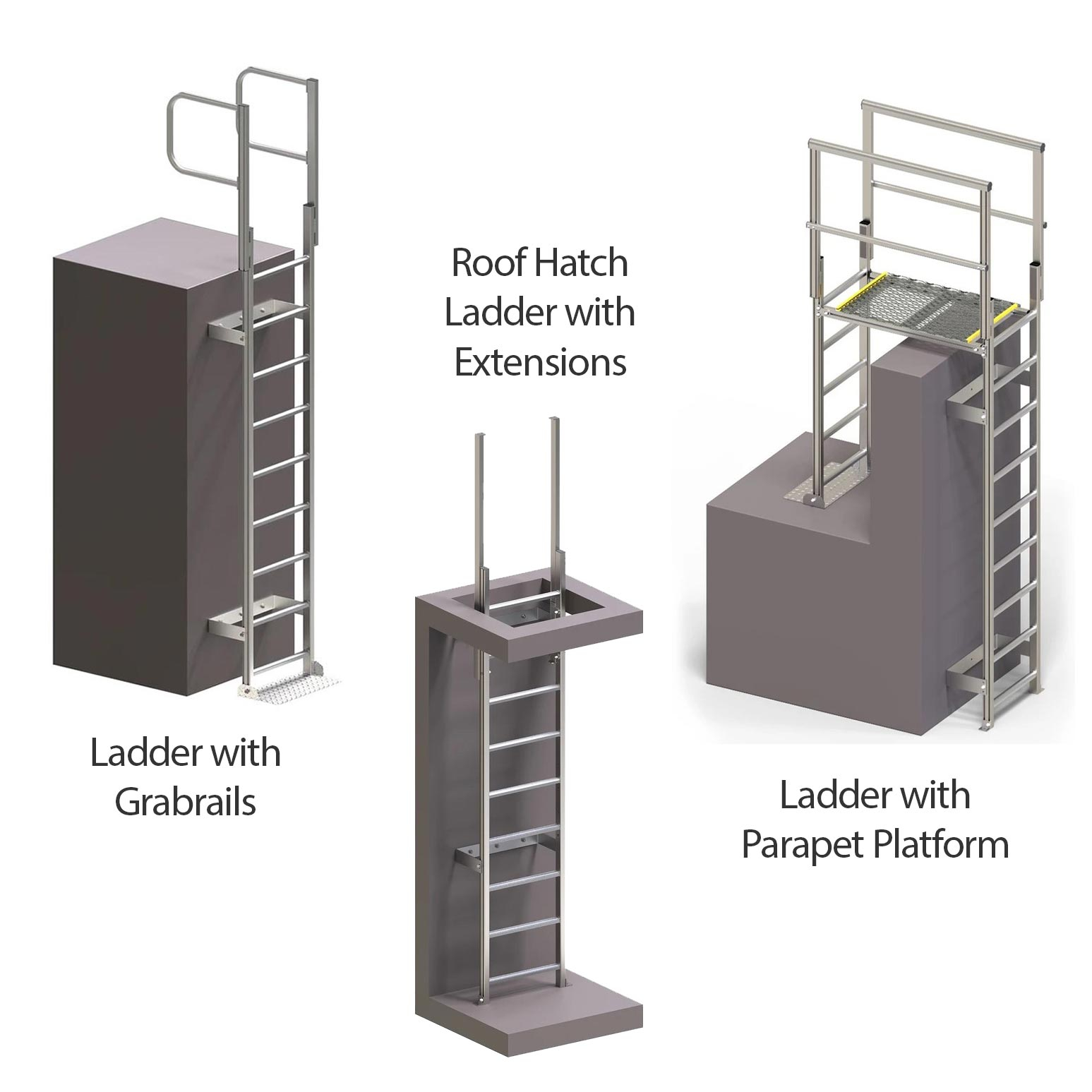

| Ladder with Grabrails | Roof Hatch Ladder with Extensions | Ladder with Parapet Platform |
Step 2 – Length Of Ladder

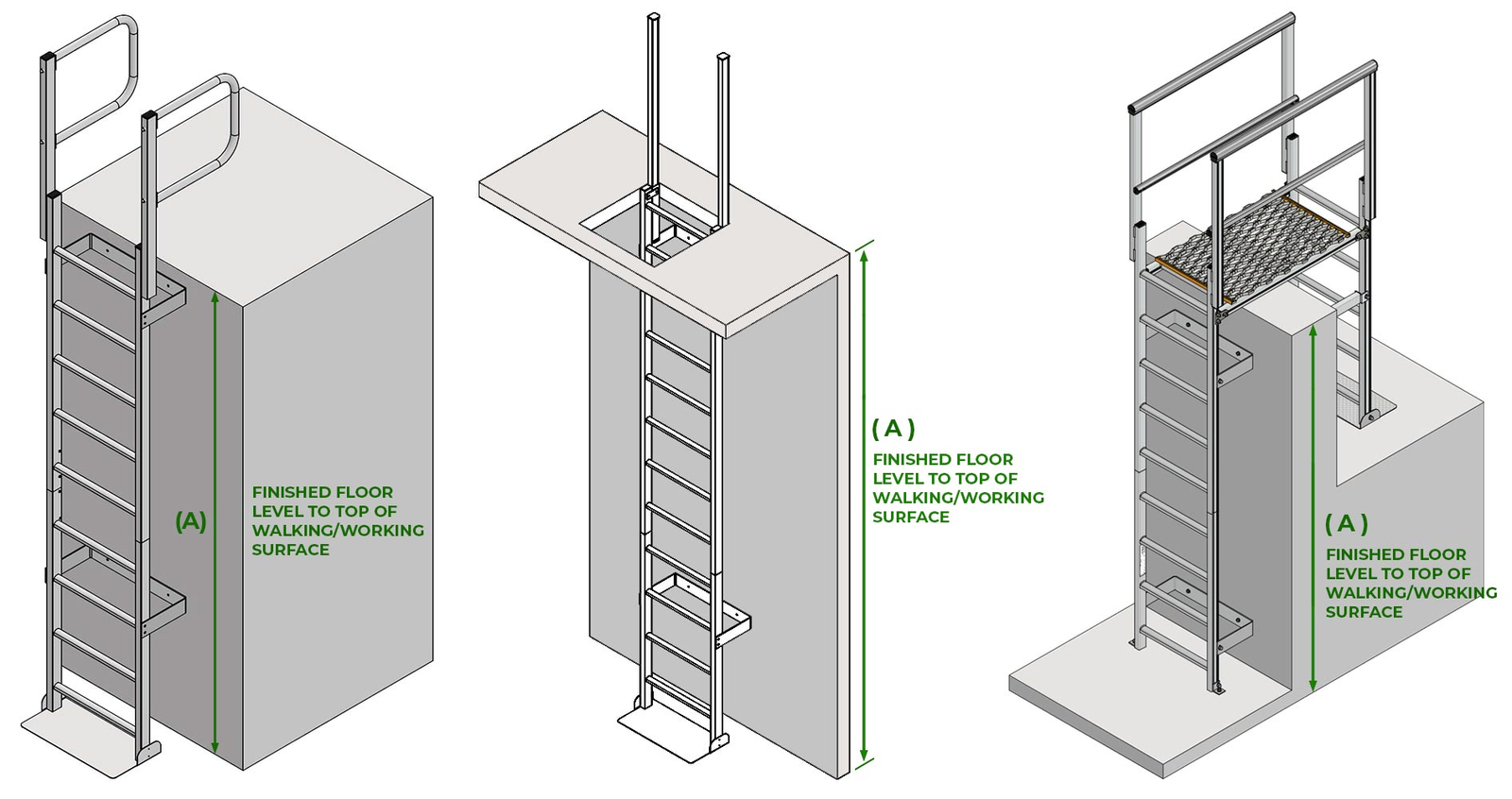

Firstly, determine the length of the existing structure, measure the (A) dimension shown in the picture above. Measure from FINISHED FLOOR LEVEL to TOP OF WALKING/WORKING SURFACE.
For example, if your measurement for (A) is 15′, you can choose the closest size larger than this measurement, 16′-3″ (195″). Ladder can be adjusted/field-cut for exact height.
Step 3 – Type Of Wall Material
 |
 |
 |
 |
 |
| Solid Concrete Wall | Hollow Block/Brick Wall | Metal Siding Wall | Wood Structured Wall | Stucco Siding Wall |
Step 4 – Ladder Base Mount Options
|
|

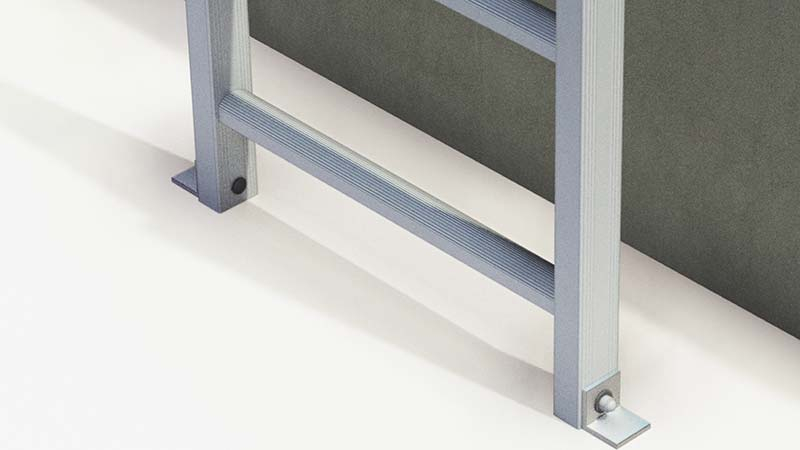

| Floor Mount Ladder Angle Kit | Non-penetrating Base Plate 24″ x 12″ |

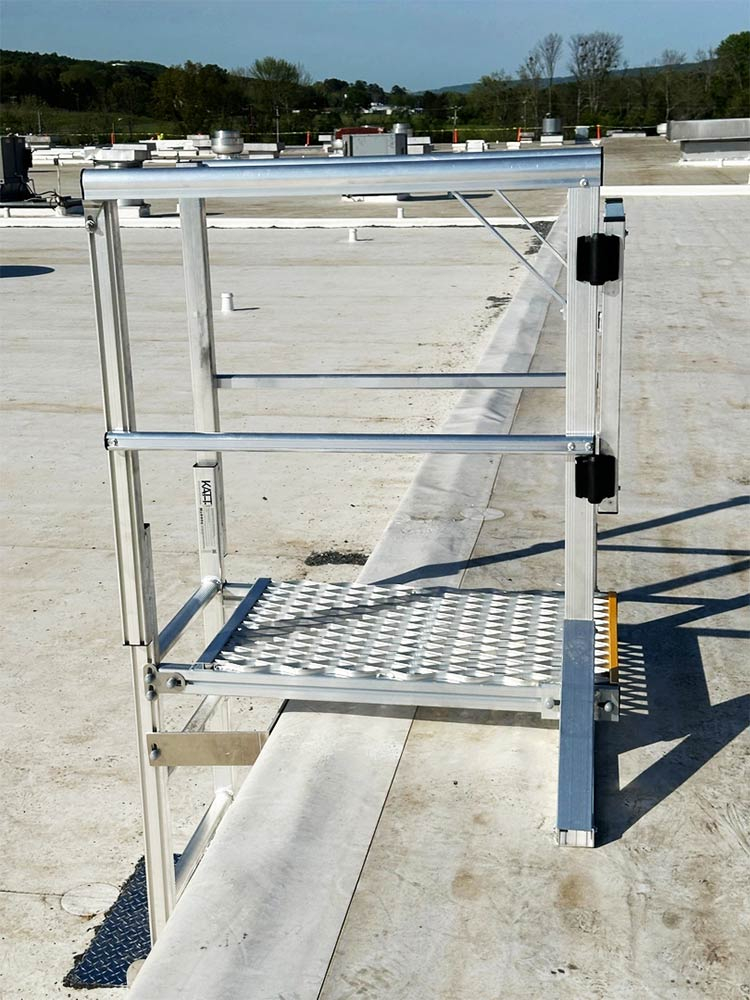

Step 5 – Existing Parapet Structure (for Ladder with Parapet Platform only)
 |
 |
 |

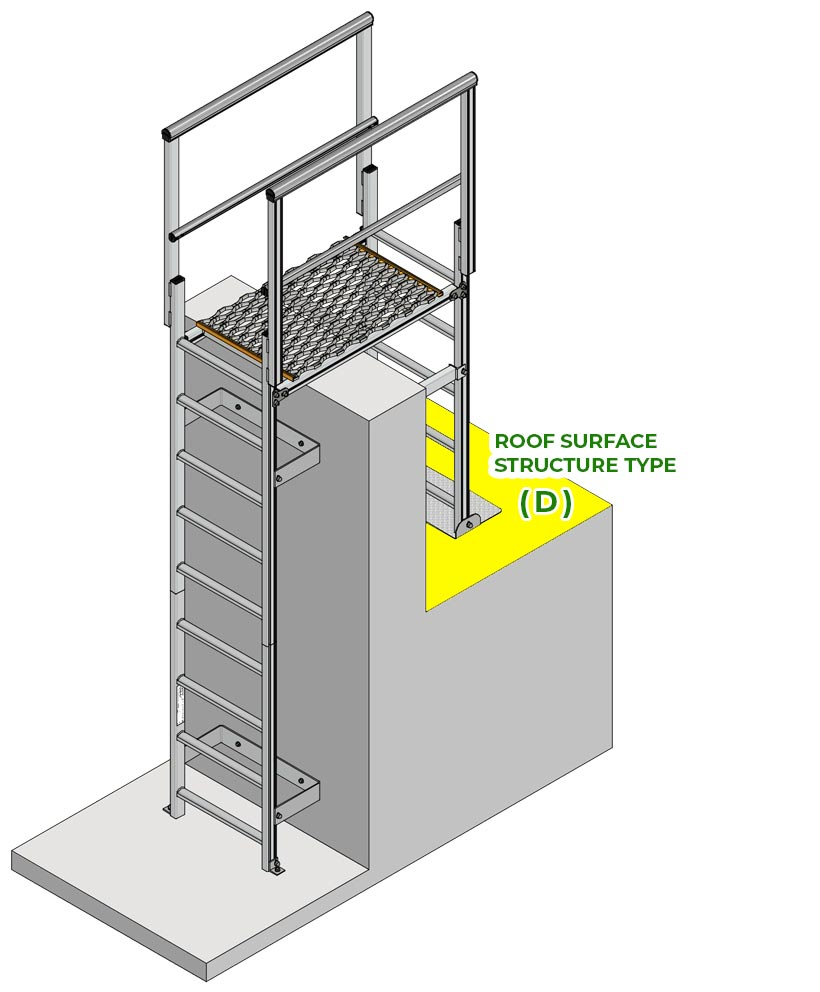

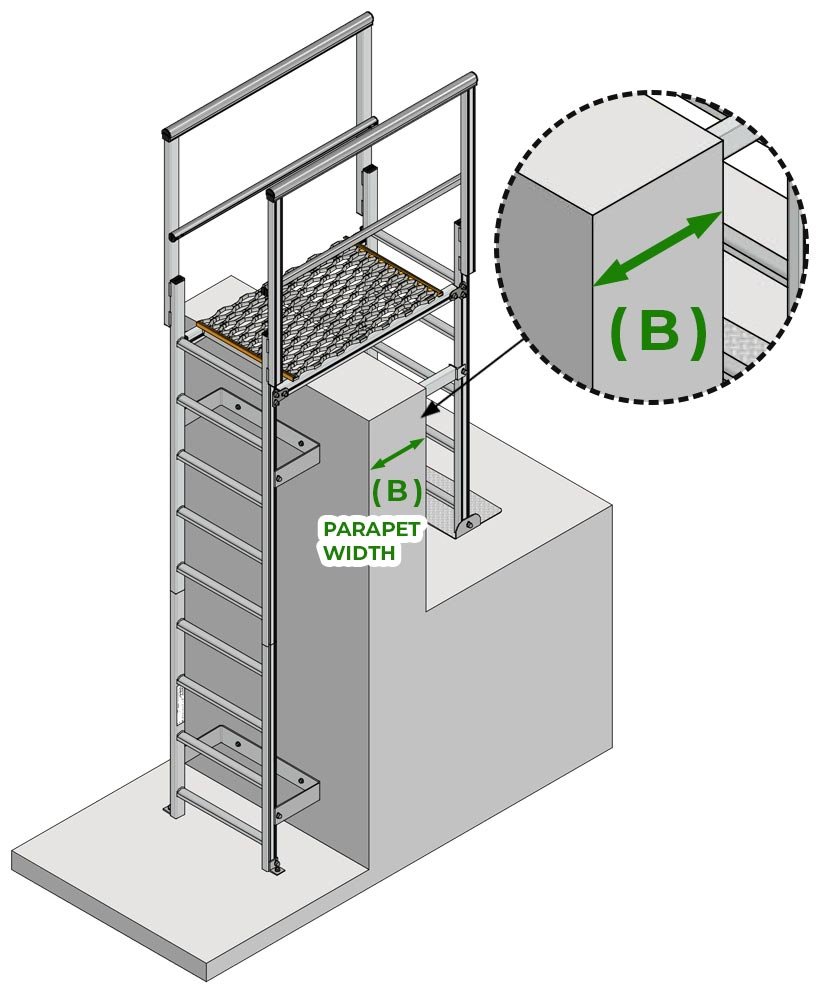

| Parapet Width (B) Max. Width 3′-10″ (measurement of the thickness of your parapet wall) | Parapet Height (C) Max. Height 3′-7″ (measurement of the height of your parapet wall from the work platform surface) | Roof Surface Structure Type (D) Concrete Slab, Metal, Wood, etc. Other (please specify…) |
Step 6 – Safety Gate & Security Door
 |
 |

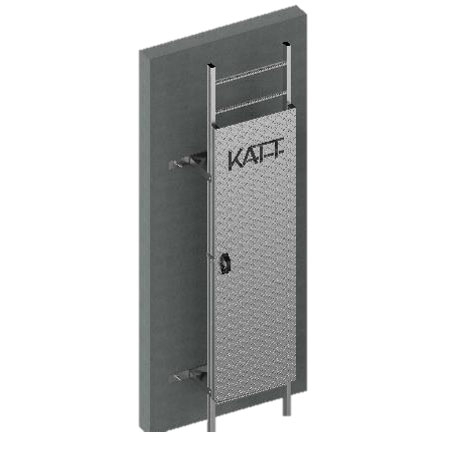

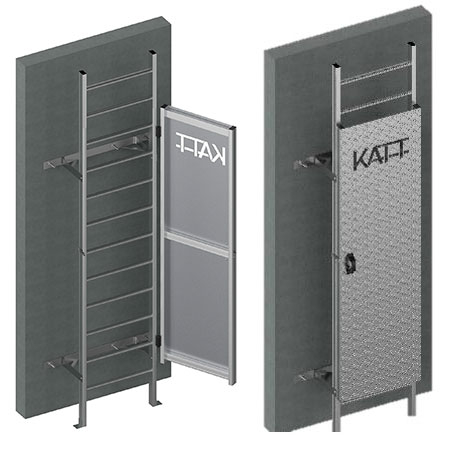

| Safety Gate (FXF-GW390A) Adjustable 20″ to 35″ | Security Door (FXF-LD427) Ladder Hinged Security Door |
Size Of “Wall Fixing Bracket” Explained
 |
The Wall Fixing Bracket (B), is shown in the picture on the left. If your ladder is going to be installed 12in. or more away from the Existing Structure, please refer to the sizing below.Size:
Please note:
|
Downloads
REQUEST A QUOTE
By providing some basic information, we can provide you with a custom quotation or more product information. If you prefer to speak with a fall protection expert just call us at (951) 465-7386 x 303 or email us at webstore@caisafety.com These application and system specific forms are highly customized to help you provide system specific information about your fall protection requirements. REQUEST QUOTE
Videos
Video links to help you with your ladder installation:
