Fixed Roof Anchors

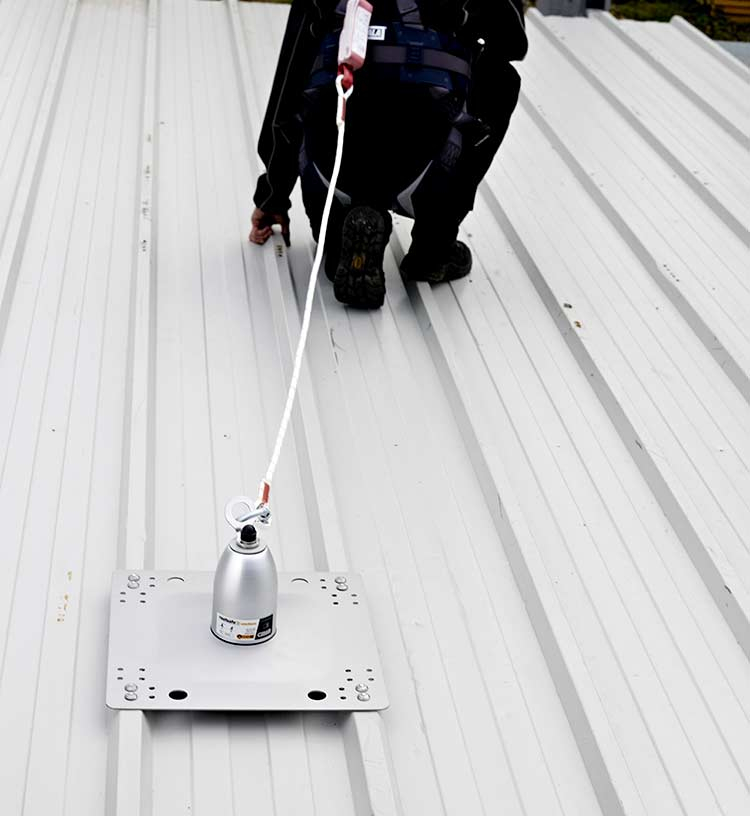

Our OSHA-compliant Fixed Roof Anchor Systems can be used on a variety of roofs for the purpose of providing fall restraint and fall arrest around roof leading edges and openings. The roof anchors are used as single point anchors that the user can tie-off to, securing the user on the roof or roof edge at all times.
System Description
Our OSHA-compliant Fixed Roof Anchor Systems can be used on a variety of roofs for the purpose of providing fall restraint and fall arrest around roof leading edges and openings. The roof anchors are used as single point anchors that the user can tie-off to, securing the user on the roof or roof edge at all times. We can provide permanent, temporary and mobile roof fall protection anchors that are ANSI Z359.1 compliant.
Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.
Features & Benefits:
COMPACT
The Mobile Fall Protection Anchor consists of one single component – no multiple parts and components to get lost or misplaced.
PORTABLE
Mobile Fall Arrest Anchor weighs a lightweight 24 lbs, making attachment and transport effortless. Unit can be used indoors or outdoors.
SELF-CONTAINED
The Mobile Fall Protection Anchor can operate on a compressed air bottle totally independent of all external power sources. No tripping on air or power lines!
GREATER COVERAGE
The Mobile Fall Protection Anchor can be used in conjunction with secondary pad to create up to a 40′ horizontal lifeline. In this configuration the system can be used to provide fall protection for up to 2 persons.
FLEXIBLE
Mobile Fall Arrest Anchor can be mounted horizontally or vertically. Surface can be flat or have a curve up to 30″ min. radius.

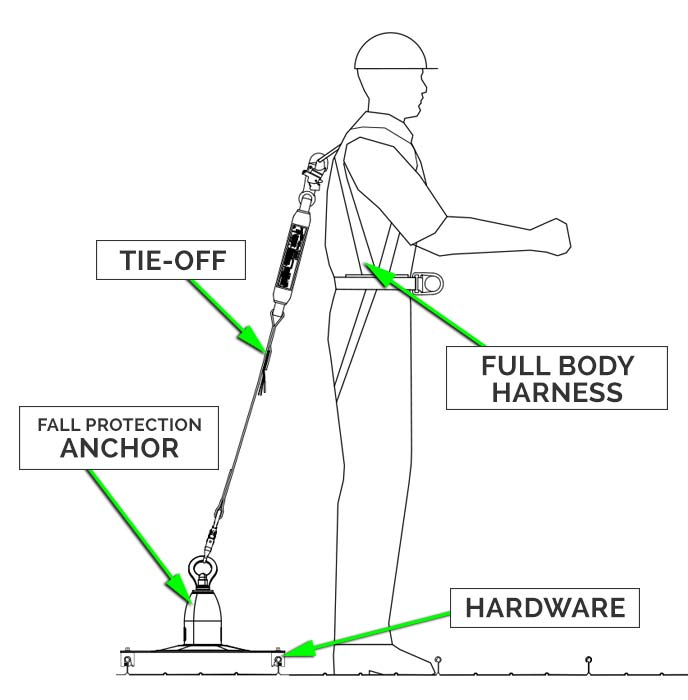

System Components
 |
Hardware: Secures anchor to the roof structure. |
| Fall Protection Anchor: Stops fall in progress and reduces fall arrest forces on roof structure. | |
| Tie-Off: Use a shock absorbing lanyard or a leading edge SRL that is compatible with anchor and application. | |
| Full Body Harness: In a fall disperses the energy of fall arrest forces on body and keeps user in a upright position. |
Specifications
| Standing Seam Roofs | |
|---|---|
| Attachment Type Info | Clamp |
| Install Type | Reusable |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | Standing Seam |
| Model | CSS-2100138 |
| Physical Dimensions | 13.80×17.30×9.00 (in) |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |

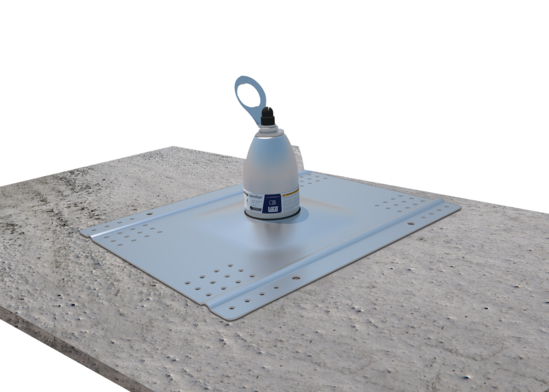

| Metal, Concrete, Wood Roofs | |
|---|---|
| Attachment Type Info | Rivet/Fablok/Teks Screw |
| Install Type | Permanent |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA |
| Velocity Ship | Yes |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | CDX Plywood 5/8″ (1.6cm) Minimum |
| Roof Installation | Concrete |
| Roof Installation | Steel Decking 24 Gauge Minimum |
| Model | CSS-2100133 |
| Physical Dimensions | 21.70×17.70×10.00 (in) |
| Physical Weight | 0.00 Unknown |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | ANSI Z359.1, OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |

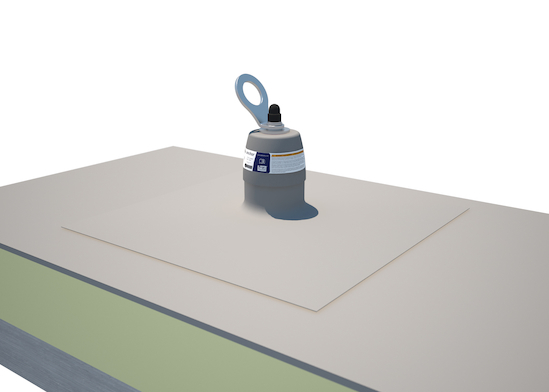

| Standard Membrane Roofs | |
|---|---|
| Attachment Type Info | Toggle Bolt |
| Install Type | Permanent |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | Single-Ply Membrane |
| Model | CSS-2100139 |
| Physical Dimensions | 16.00×16.00×9.00 (in) |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |

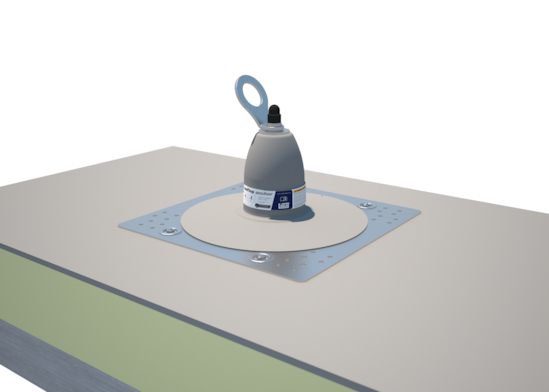

| PVC Roofs | |
|---|---|
| Attachment Type Info | Toggle Bolt |
| Install Type | Permanent |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | PVC Membrane |
| Model | CSS-2100140 |
| Physical Dimensions | 16.00×16.00×9.00 (in) |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |

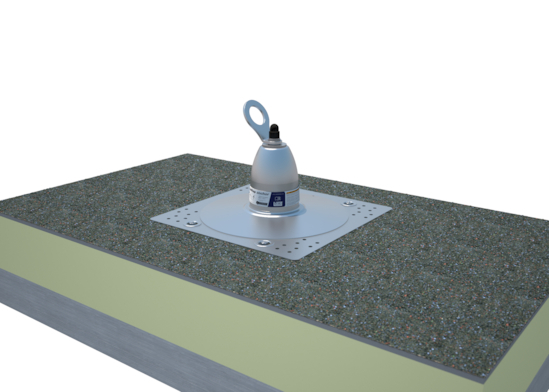

| Bitumen Roofs | |
|---|---|
| Attachment Type Info | Toggle Bolt |
| Install Type | Permanent |
| Capacity | 310 lbs. (141 kg) |
| Brand | DBI-SALA |
| iSafe Equipped | No |
| Label | Vinyl |
| Roof Installation | Bitumen Built-Up |
| Roof Installation | Built-Up |
| Model | CSS-2100142 |
| Physical Dimensions | 16.00×16.00×9.00 (in) |
| Product Styles | Fixed |
| Product Types | Anchors for Roofs |
| Standards | OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |
Models
| Anchor Types | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Attachment Hardware | ||||||||||||
|
||||||||||||
| Item # (SKU) | Product Variations | WEIGHT (LBS.) | ||||||||||
| Anchor only | ||||||||||||
| CSS-2100138 | Roof Top Anchor only – For Standing Seam Roofs | 12 | ||||||||||
| CSS-2100133 | Roof Top Anchor only – For Metal, Concrete, Wood Roofs | 18 | ||||||||||
| CSS-2100139 | Roof Top Anchor only – For Standard Membrane Roofs | 18 | ||||||||||
| CSS-2100140 | Roof Top Anchor only – For PVC Roofs | 12 | ||||||||||
| CSS-2100142 | Roof Top Anchor only – For Bitumin Roofs | 13 | ||||||||||
| Anchor + Attachment Hardware | ||||||||||||

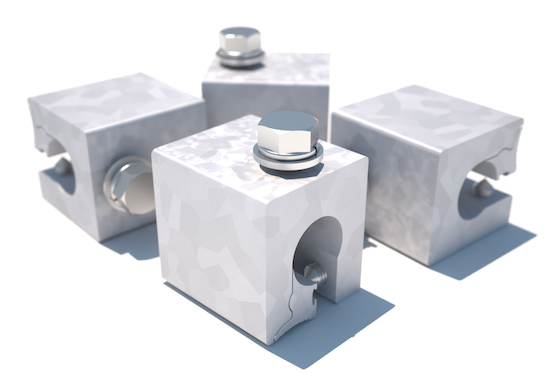

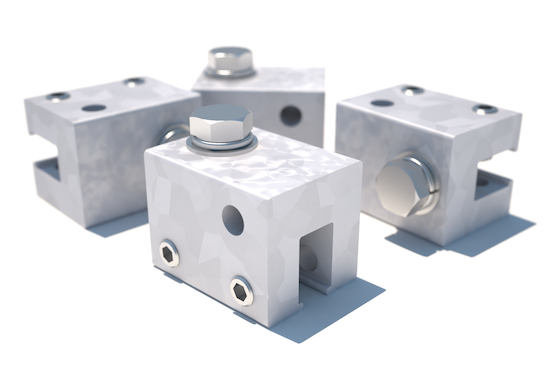

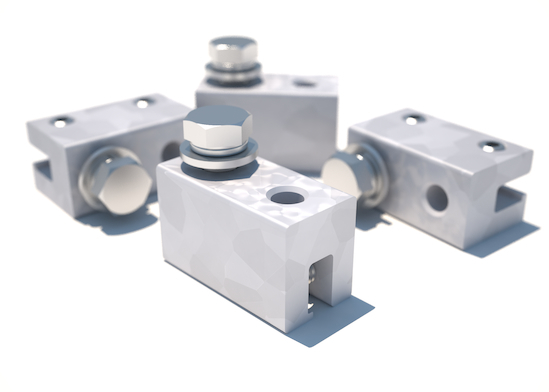

| CSS-2100138-1KIT | For Standing Seam Roofs + Clamp Z (2.37 lbs) | 15 | ||||||||||
| CSS-2100138-2KIT | For Standing Seam Roofs + Clamp E (2.2 lbs) | 15 | ||||||||||
| CSS-2100138-3KIT | For Standing Seam Roofs + Clamp U (21 lbs) | 34 | ||||||||||

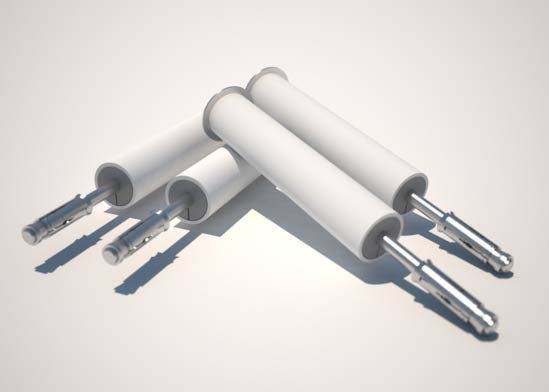

| CSS-2100133-1KIT | For Metal, Concrete, Wood Roofs + Concrete Bolt Kit 6″ (1.8 lbs) | 20 | ||||||||||
| CSS-2100133-2KIT | For Metal, Concrete, Wood Roofs + Concrete Bolt Kit 12″ (2.2 lbs) | 21 | ||||||||||

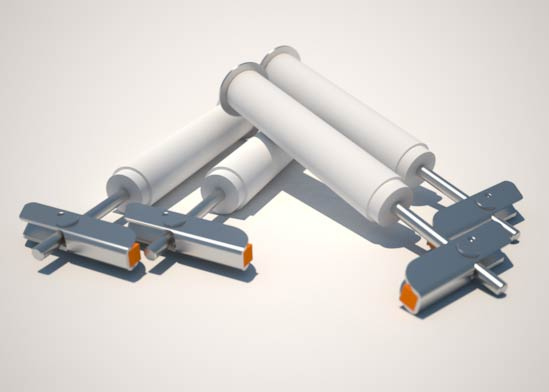

| CSS-2100133-3KIT | For Metal, Concrete, Wood Roofs + Toggle Bolt Kit 6″ (1.8 lbs) | 20 | ||||||||||
| CSS-2100133-4KIT | For Metal, Concrete, Wood Roofs + Toggle Bolt Kit 12″ (2.2 lbs) | 21 | ||||||||||
| CSS-2100139-1KIT | For Standard Membrane Roofs + Concrete Bolt Kit 6″ | 20 | ||||||||||
| CSS-2100139-2KIT | For Standard Membrane Roofs + Concrete Bolt Kit 12″ | 21 | ||||||||||
| CSS-2100139-3KIT | For Standard Membrane Roofs + Toggle Bolt Kit 6″ | 20 | ||||||||||
| CSS-2100139-4KIT | For Standard Membrane Roofs + Toggle Bolt Kit 12″ | 21 | ||||||||||
| CSS-2100140-1KIT | For PVC Roofs + Concrete Bolt Kit 6″ | 14 | ||||||||||
| CSS-2100140-2KIT | For PVC Roofs + Concrete Bolt Kit 12″ | 15 | ||||||||||
| CSS-2100140-3KIT | For PVC Roofs + Toggle Bolt Kit 6″ | 14 | ||||||||||
| CSS-2100140-4KIT | For PVC Roofs + Toggle Bolt Kit 12″ | 15 | ||||||||||
| CSS-2100142-1KIT | For Bitumin Roofs + Concrete Bolt Kit 6″ | 15 | ||||||||||
| CSS-2100142-2KIT | For Bitumin Roofs + Concrete Bolt Kit 12″ | 16 | ||||||||||
| CSS-2100142-3KIT | For Bitumin Roofs + Toggle Bolt Kit 6″ | 15 | ||||||||||
| CSS-2100142-4KIT | For Bitumin Roofs + Toggle Bolt Kit 12″ | 16 | ||||||||||
