Fixed Mounted Guardrails

Name: Fixed Mounted Guardrails
SKU: SRC-FIXEDMOUNTED
Availability: InStock

$0.00

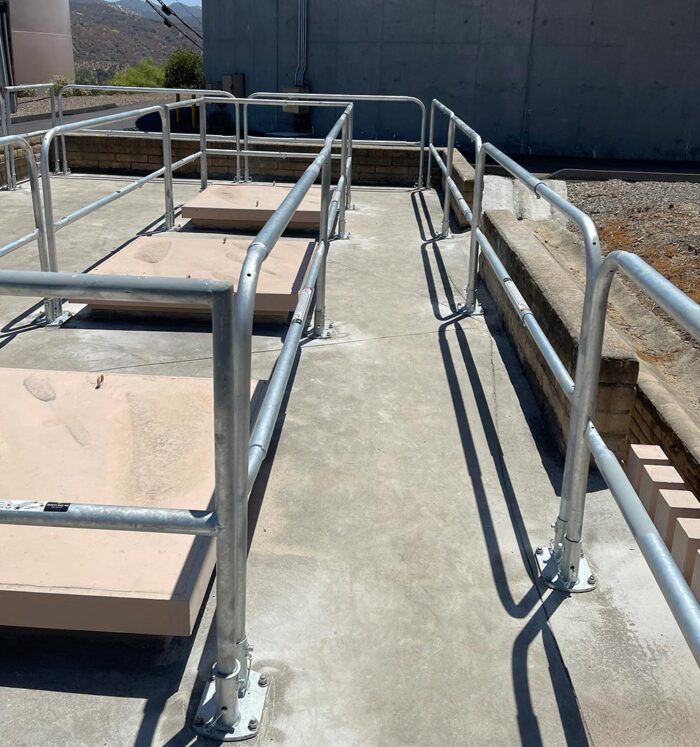

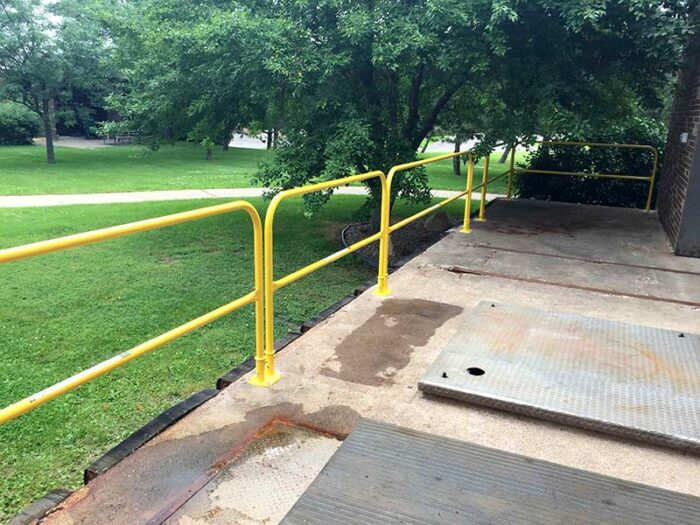

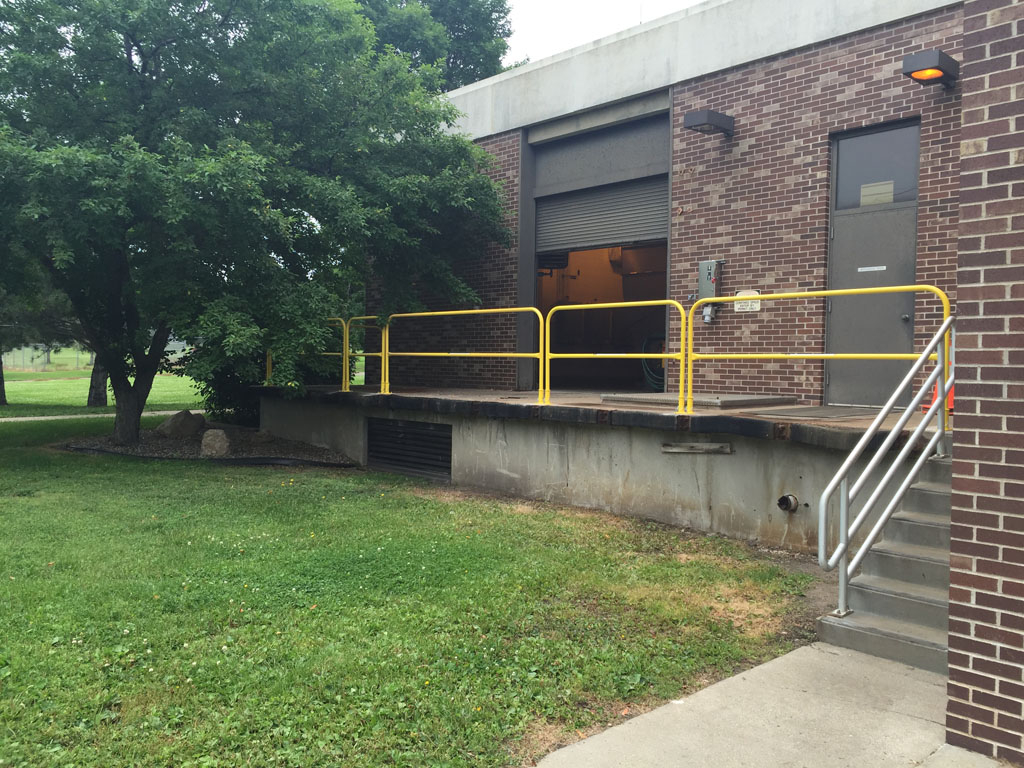

Our Fixed Mounted Guardrails are ideal choices for fall prevention at loading docks, roof parapet walls and many other leading edge hazards. This system is OSHA, CAL-OSHA, & WA-OSHA Compliant.

TIP: Please refer to the tab ‘Selections Explained‘ & ‘Correct Usage‘ tabs on this page below for help and information with the selections below.

SKU: SRC-FIXEDMOUNTED Category: Guardrails Tags: guardrails, safetyrail

System Description

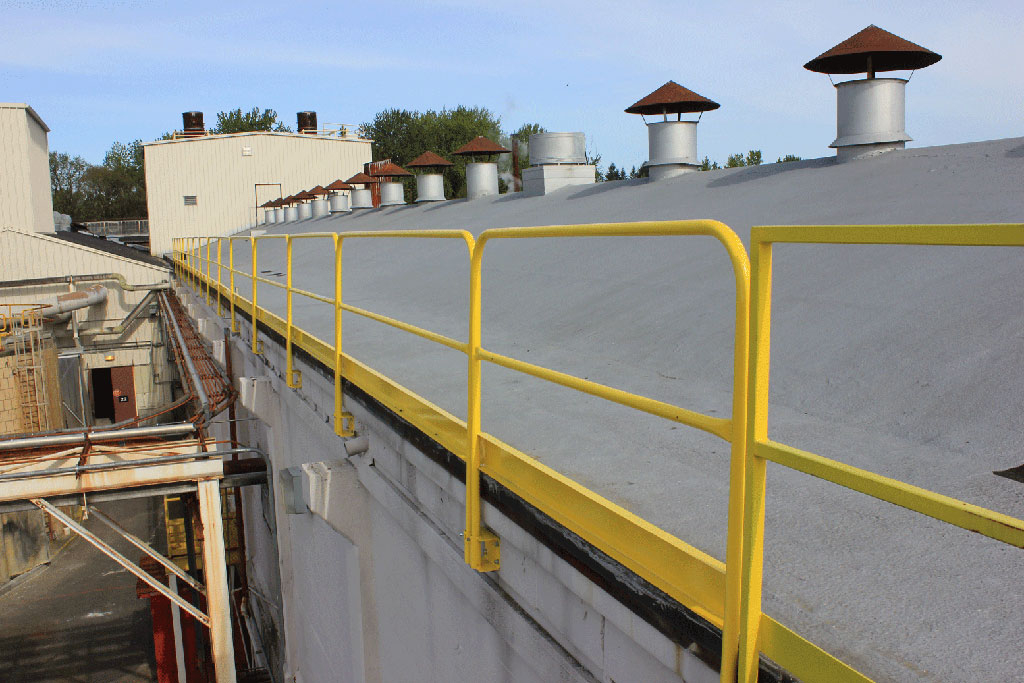

CAI Safety Systems offers permanent safety guardrails for fall protection that comes in different lengths and mounting options to address worksite needs. Our Fixed Mounted Guardrails are ideal choices for fall prevention at loading docks, roof parapet walls and many other leading edge hazards. This system is OSHA, CAL-OSHA, & WA-OSHA Compliant.

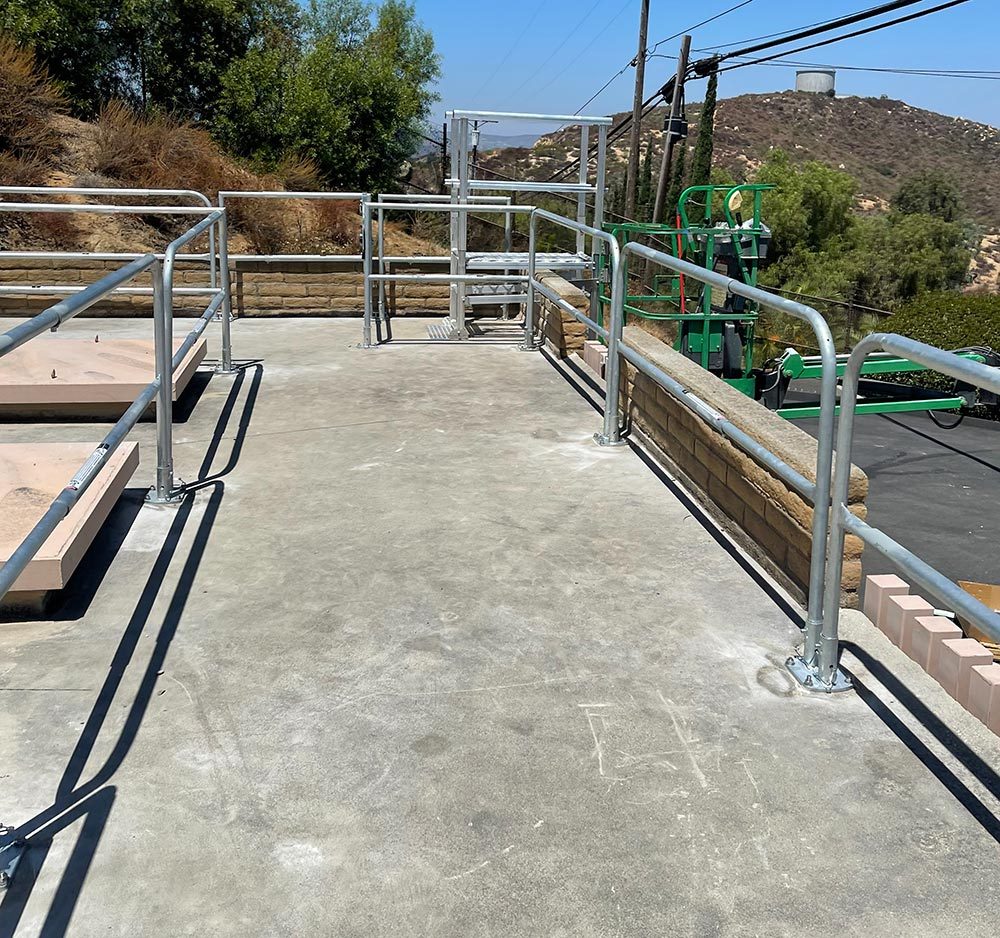

Our fixed guardrail system can be top or side mounted to your surface. A variety of finishes are also available along with safety gates to allow for safe access.

OSHA COMPLIANCE: This guardrail system requires to meet a force of at least 200 pounds (890 N), and has a maximum spacing between uprights/stanchions of 10 feet on center (120 inches or 3.04 meters). OSHA 1910.29(b) and 1926.502(b).
CAL/OSHA COMPLIANCE: This guardrail system if installed in the state of California or Washington, requires a maximum spacing between uprights/stanchions of 8 feet on center (96 inches or 2.44 meters). Cal-OSHA Title 9, 1620 and 3209. WA-OSHA WAC 296-24-75011.

Features & Benefits:

Powder-coated safety yellow for visibility and high corrosion resistance.
Meets and exceeds OSHA regulations for fall protection. Tested and independently certified to be in accordance with OSHA fall protection for guardrail regulations.
OSHA Regulations – 29 CFR 1910.23, 29 CFR 1926.502
Cal-OSHA Regulations – 1620, 1621, 1633, 3209, 3210, 3211, 3212, 3213, 3214
WA-OSHA Regulations – WAC 296-24-75011
Simple installation — prefabricated railing sections means no custom fabrication of guard rails.

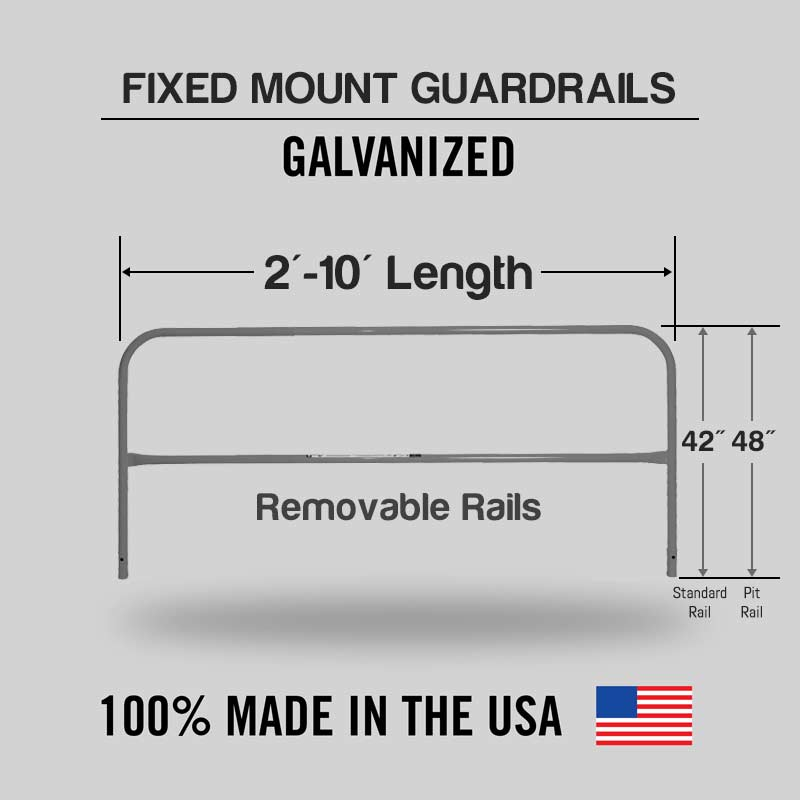

Railing will be 42″ tall in the base. Railing length is available in 1-foot increments ranging from 2 feet to 10 feet, measured to the center of each leg.

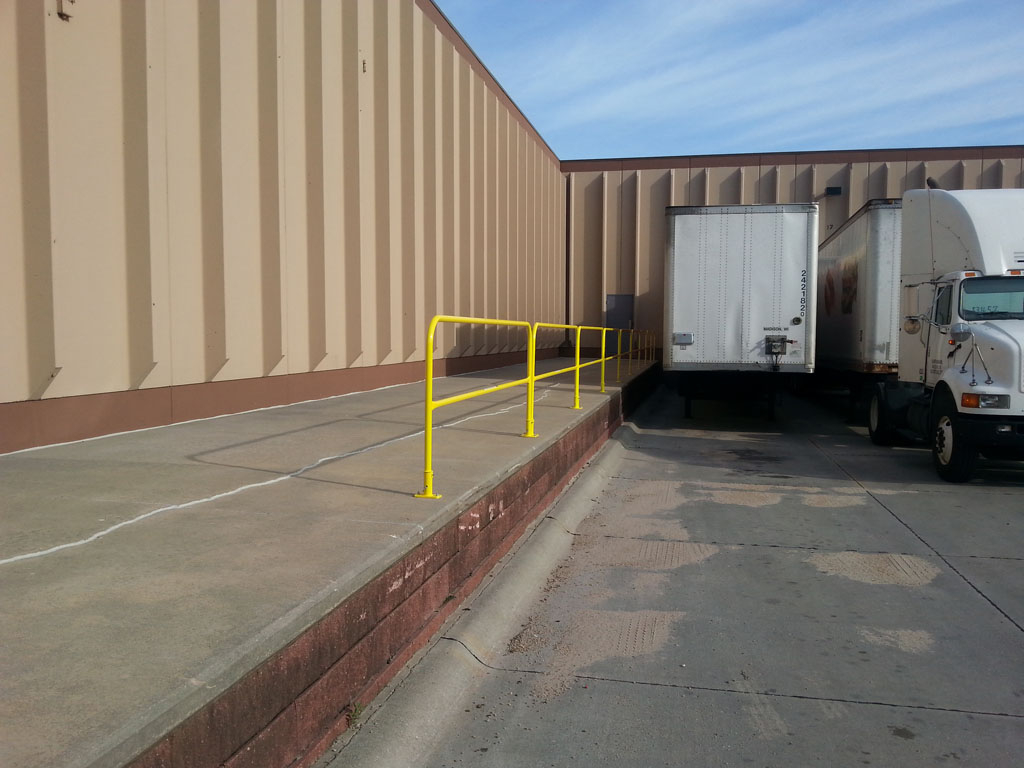

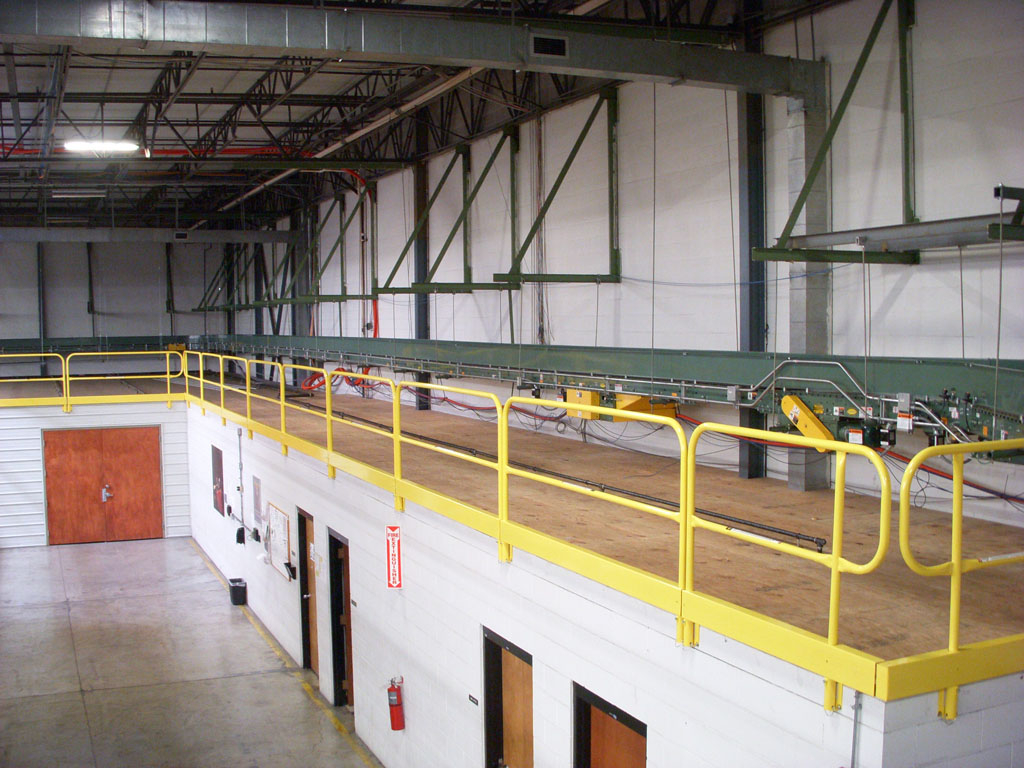

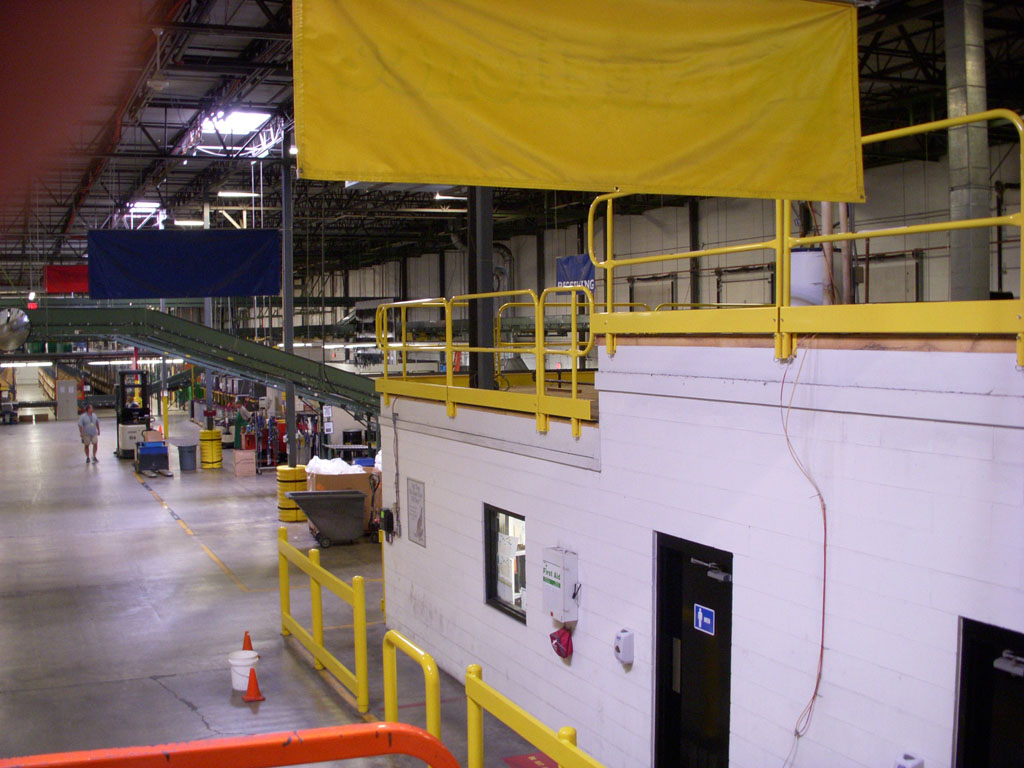

Highly effective as hazard barriers. Commonly used at dock doors and truck pits, warehouse traffic lanes, construction excavation sites, new building construction, mezzanines, pier and rail yards, crowd control, and more.
American Welding Society certified welders ensure the highest standard of quality construction.

What are Standard Rails & Pit Rails?

Standard Rails mount onto the ‘Top Floor Mount Bracket‘ and are 42 inches tall to meet OSHA requirements.

Pit Rails mount onto either the ‘Side Flush Mount Bracket‘ or ‘Wrap-Over-Edge Mount Bracket‘ and are 48.06 inches tall. The reason for these rails being taller is because about 6 inches of the rail is tucked into the bracket mount on the side wall or parapet. Thus, the height of the rail from floor/roof level up is 42 inches which meets OSHA requirements.

See ‘Downloads’ tab for Rail Specifications.

**CAUTION WARNING** This is a fall protection system. The system must be used in strict conformance with the manufacturer’s instructions. Failure to do so may result in serious injury or death. You can download the system manuals from the ‘Downloads’ tab. You are also encouraged to contact us in case of any questions.

Selections Explained

STEP 1 – CHOOSE A FINISH


Powder Coated Safety Yellow	Galvanized

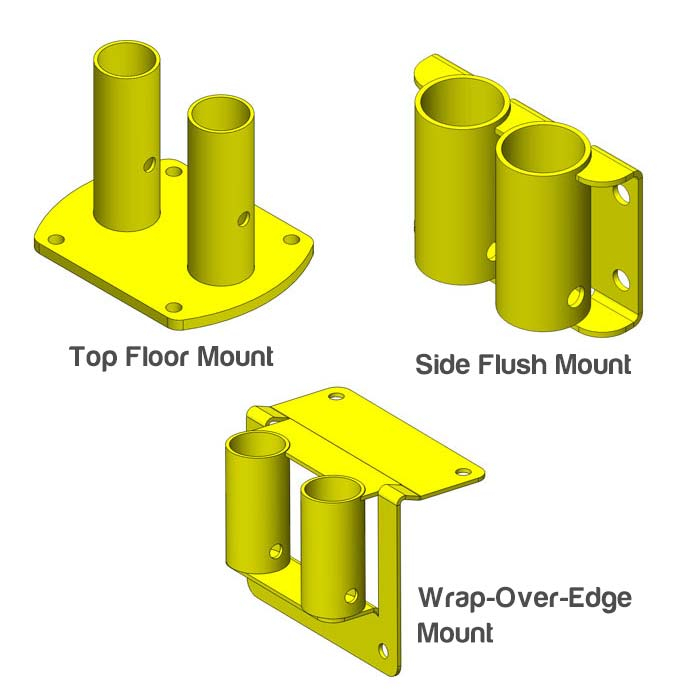

STEP 2 – CHOOSE TYPE OF MOUNT

Top Floor Mount (for Standard Rails)

Side Flush Mount (for Pit Rails)

Wrap-Over-Edge Mount (for Pit Rails)

What are Standard Rails & Pit Rails?

Standard Rails mount onto the ‘Top Floor Mount Bracket‘ and are 42 inches tall to meet OSHA requirements.

Pit Rails mount onto either the ‘Side Flush Mount‘ or ‘Wrap-Over-Edge Mount‘ and are 48.06 inches tall.

The reason for these rails being taller is because about 6 inches of the rail is tucked into the bracket mount on the side wall or parapet.

STEP 3 – CHOOSE NUMBER OF RAILS & LENGTHS

Calculate the Total Length of System (in ft.)
Decide how many rails and length of rails you require to cover the total span of your system from start to end (refer to pic on the left)
As per OSHA regulations in some states such as California (CA) and Washington (WA), posts must be spaced not more than 8 feet (96 inches or 2.44 meters) on centers. Please choose rails no more than 8ft. in length if you are installing this system in CA or WA.
Input into the boxes provided above, enter the total number of rails required as per rail lengths decided.
Rail lengths from 2ft. to 10 ft. provided.
For adjustable rails, please visit ‘Accessories’ tab to purchase individually.

STEP 4 – CHOOSE QUANTITY OF DOUBLE MOUNTS

STEP 5 – CHOOSE QUANTITY OF SINGLE MOUNTS (FINISHING KIT)

If the guardrail system is going to have an open end, you must install a Finishing Kit. The finishing kit shown below, will provide you with the Single Mounts to close these open ends.
For a single run system with one open end, you will need (1) finishing kit (single mount).


Top Floor Mount Finish Kit (Single Mount)	Side Flush Mount Finish Kit (Single Mount)	Wrap-Over-Edge Mount Finish Kit (Single Mount)

Correct Usage

	Cal-OSHA Regulations	WA-OSHA Regulations	Federal OSHA Regulations
Maximum Post Spacing	8ft.	8ft.	10ft.
Wind-Load Return Required	No	No	No
End Return Rails (Finishing Kits)	No	No	No
Roof Parapet Required	No – Top Mount Yes – Side & Wrap-over-edge Mount	No – Top Mount Yes – Side & Wrap-over-edge Mount	No – Top Mount Yes – Side & Wrap-over-edge Mount
Compliance Codes	Cal-OSHA Title 9, 1620 and 3209	WA-OSHA WAC 296-24-75011	OSHA 1910.29 and 1926.502

Cal-OSHA & WA-OSHA Compliance: As per OSHA regulations in some states such as California (CA) and Washington (WA), posts must be spaced not more than 8 feet (96 inches or 2.44 meters) on centers. Please choose rails no more than 8ft. in length if you are installing this system in these states.
Each Fixed Rail component you choose in the product calculator comprises of:
- (1) rail (preferred finish)
- (2) locking pins (required to anchor the railing to the base mount.
Railings are 1-5/8 inch (41 mm) O.D.
Double mounts, Single mounts, Individual Rails, Finish Rails, and Toeboards can be purchased separately in the ‘Accessories’ tab or Fixed Mounted Guardrails Accessories page.
Single mount brackets are used as a Finishing Kit for your system to close open ends. Please refer to the ‘Finishing Kits’ tab.
Toeboards are not included with this system and can be purchased separately in the ‘Accessories’ tab or Fixed Mounted Guardrails Accessories page.
3/8 x 2.5” expansion anchor bolts may be used to anchor the bracket to your application. You may also use 3/8 x 2.75” expansion anchors depending on the which bolt works best with your application.
Please note that Anchor bolts for securing the Mounts to your application are not included with this system. Instructions have been provided in the user manual.

Finishing Kits

If the guardrail system is going to have an open end, you must install a Finishing Kit. The finishing kit shown below, will provide you with the Single Mounts to close these open ends. For a single system with one open end, you will need (1) finishing kit. To purchase Individual Railings, please visit Individual Railings for Fixed Mounted Guardrail.

(click to enlarge)

SELECT OPTIONS

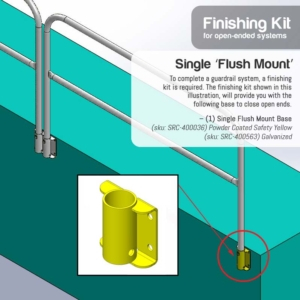

Finishing Kit – Single ‘Flush Mount’ Base

(click to enlarge)

SELECT OPTIONS

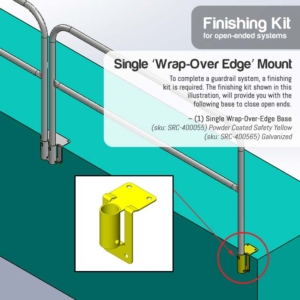

Finishing Kit – Single ‘Wrap-Over-Edge’ Base

(click to enlarge)

SELECT OPTIONS

** Please note that Anchor bolts for securing the Mount/Bracket to your application are not included with this kit. Refer to ‘Correct Usage‘ tab to see specifications for Anchor Bolts.

Mounting Options & Dimensions

MOUNTING TYPE

SINGLE BRACKET

DOUBLE BRACKET

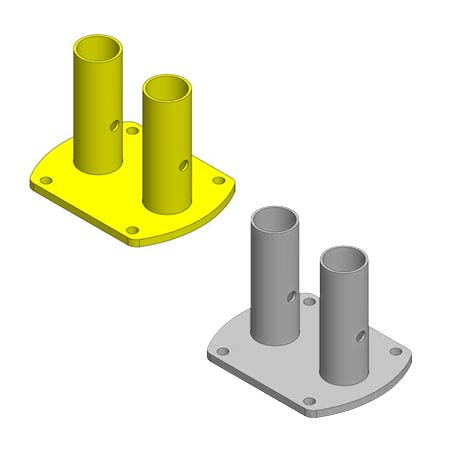

Top Floor Mount (for Standard Railings)

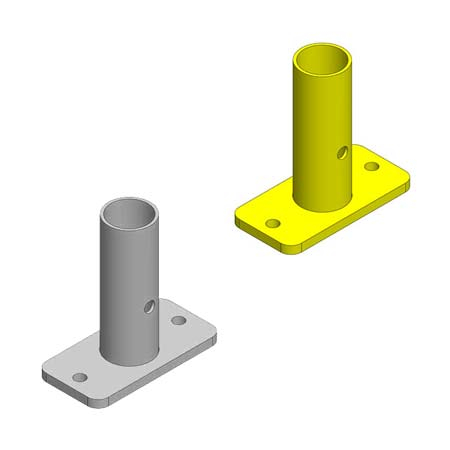

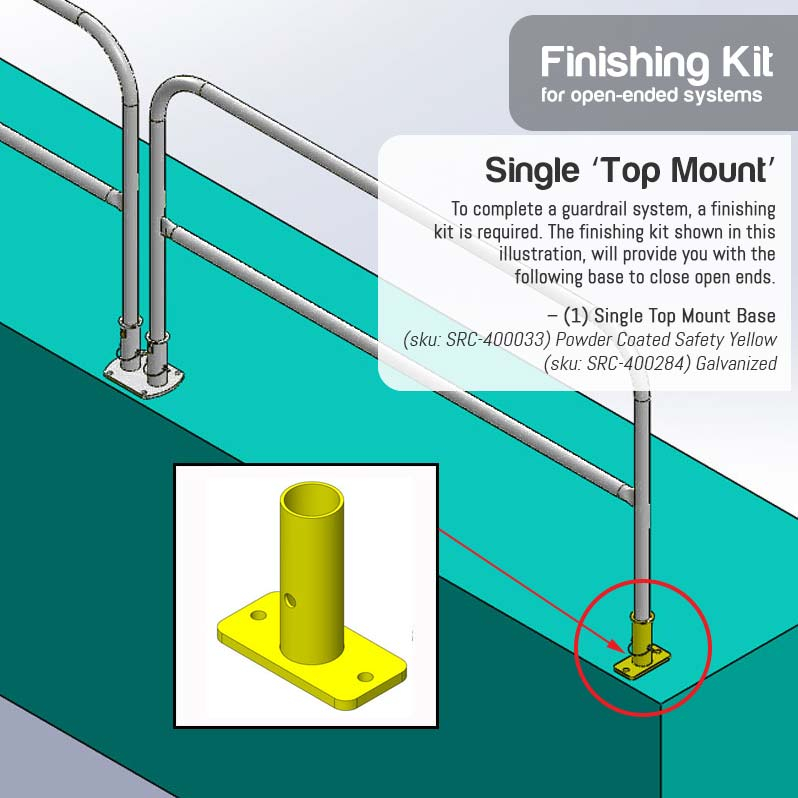

Finishing Kit – Single 'Post Rail' Base Mount

Drawing [PDF Download]

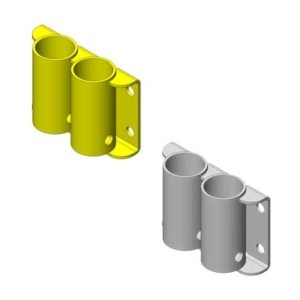

Side Flush Mount (for Pit Railings)

Drawing [PDF Download]

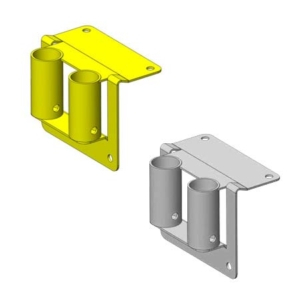

Wrap-Over-Edge Mount (for Pit Railings)

Finishing Kit – Single 'Wrap-Over-Edge' Mount Base

Drawing [PDF Download]
