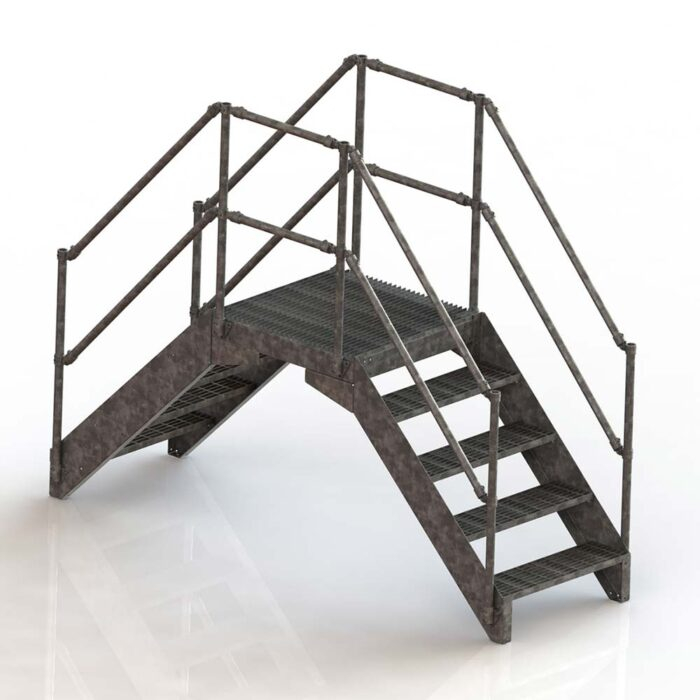

Crossover Stairs Safety Bridge

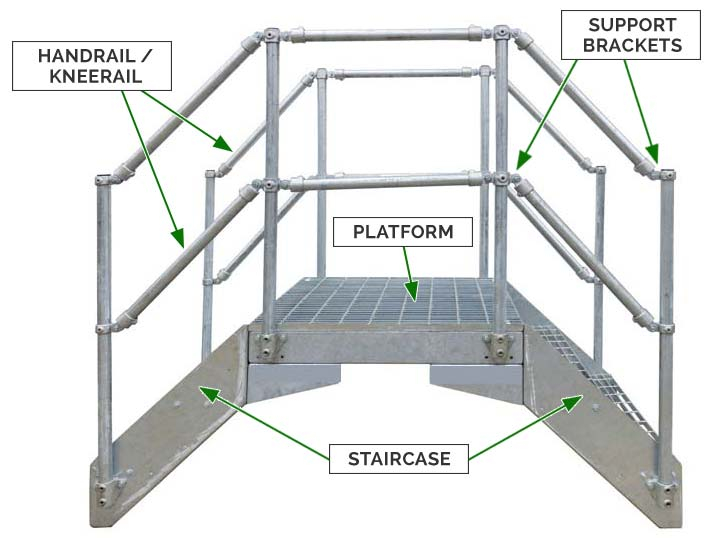

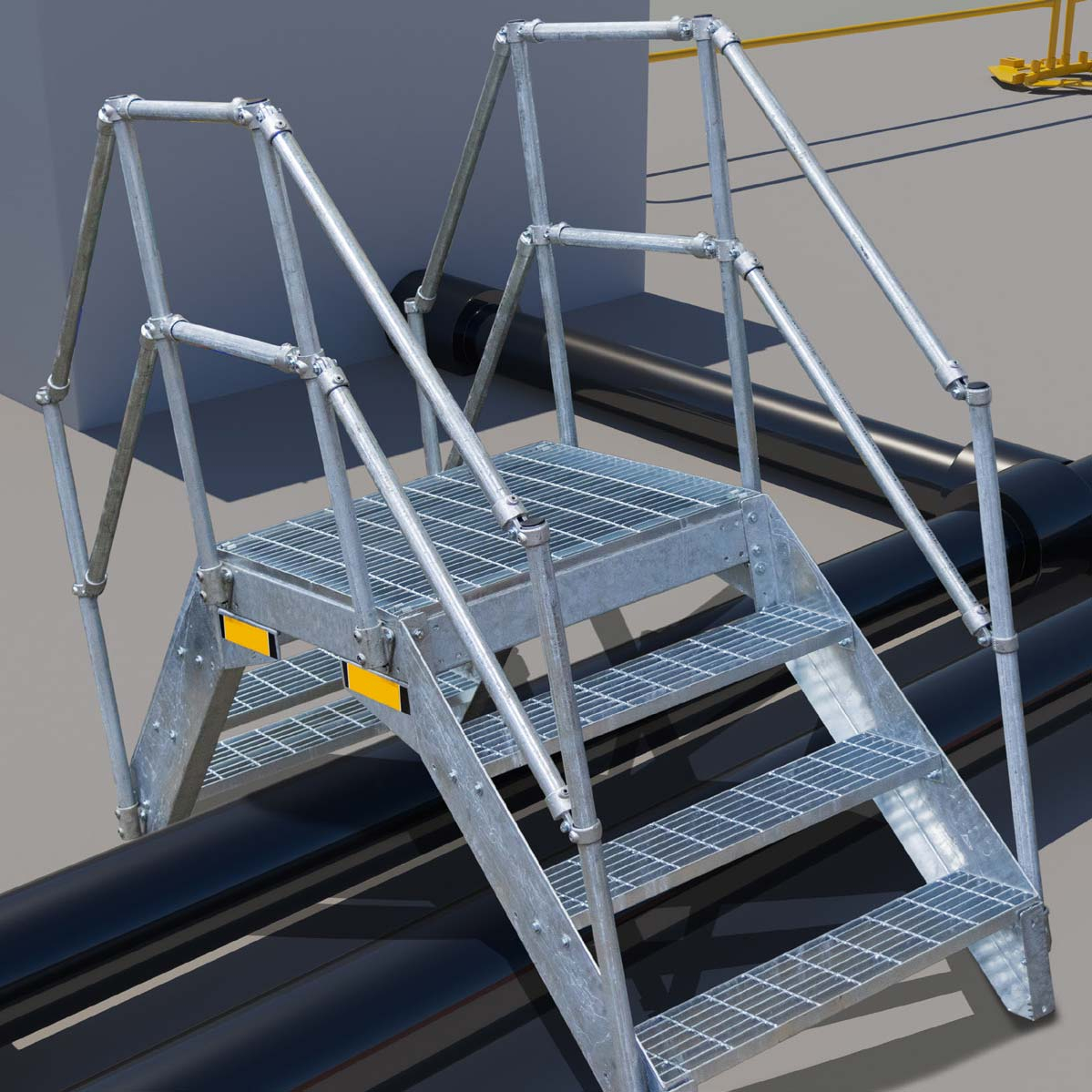

The Crossover Stair Bridge allows for safe access over pipes, expansion joints and equipment or up to elevated areas. The system uses modular, bolt-together components to construct double-sided crossover stairs. Metal stairs, platforms, heavy-duty handrails, and support towers can be combined in any number of ways to fill your unique needs.

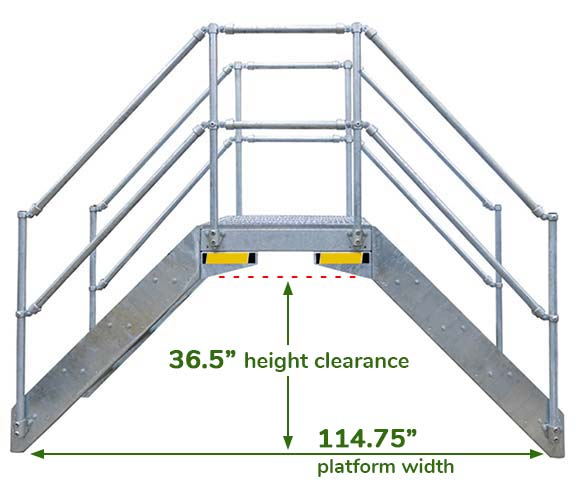

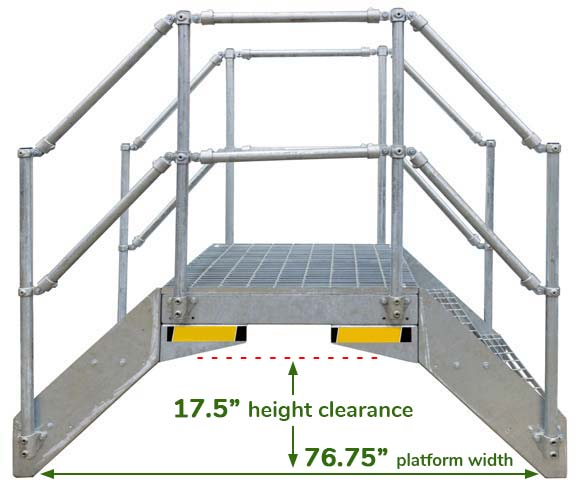

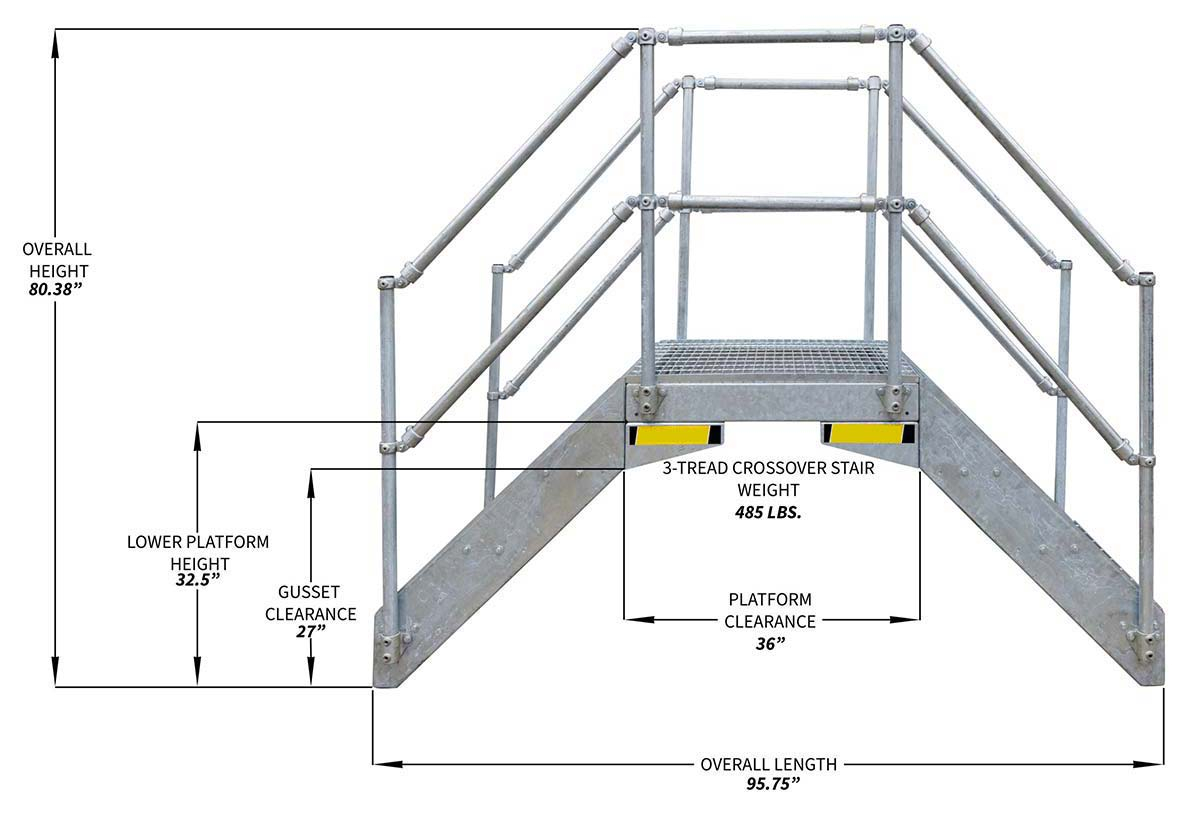

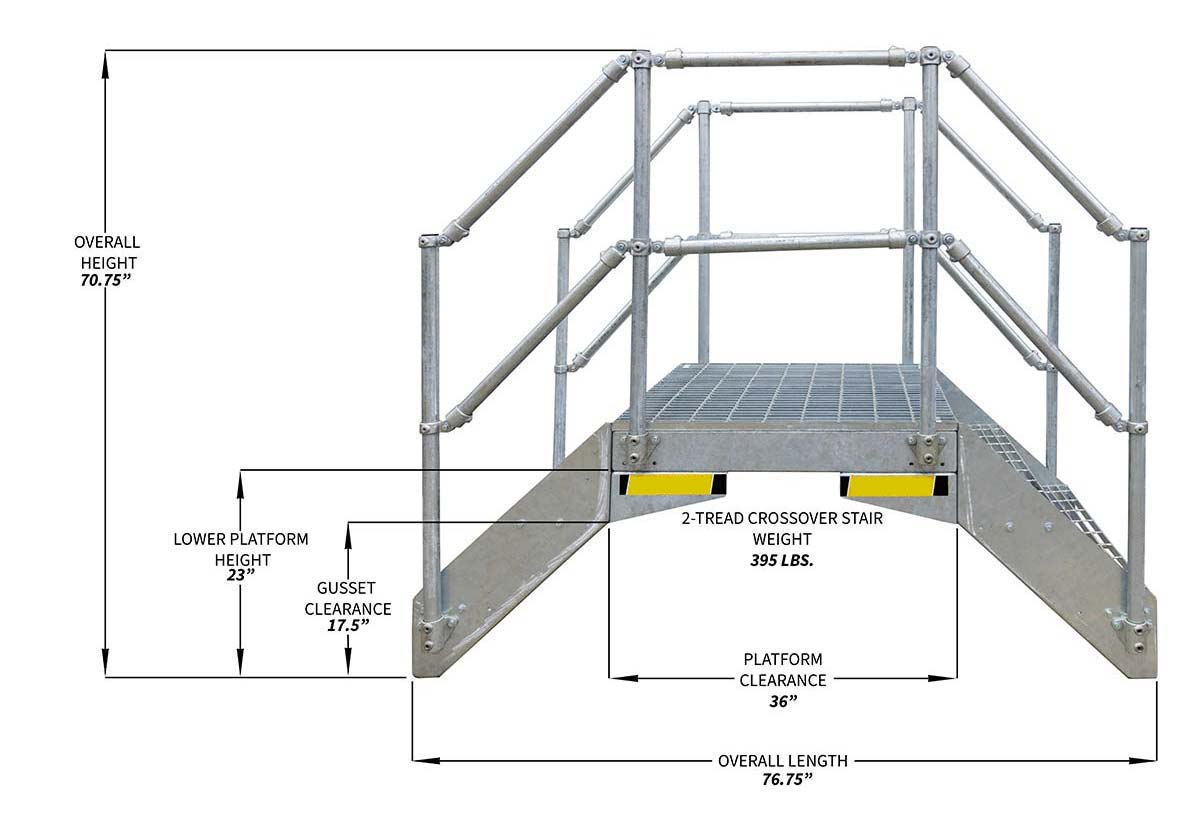

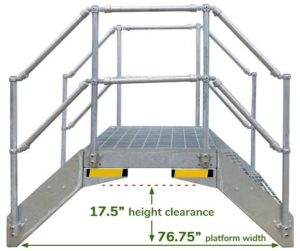

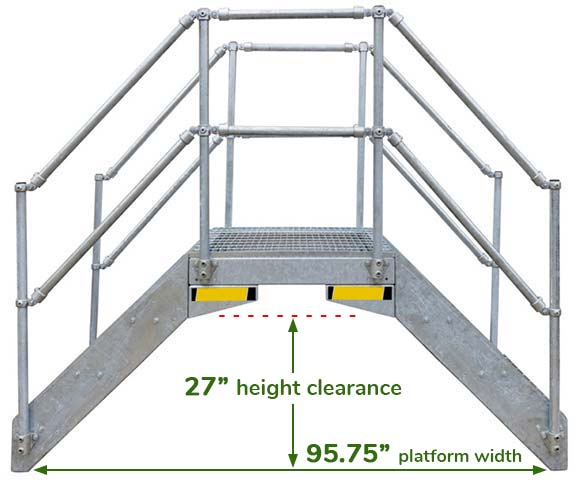

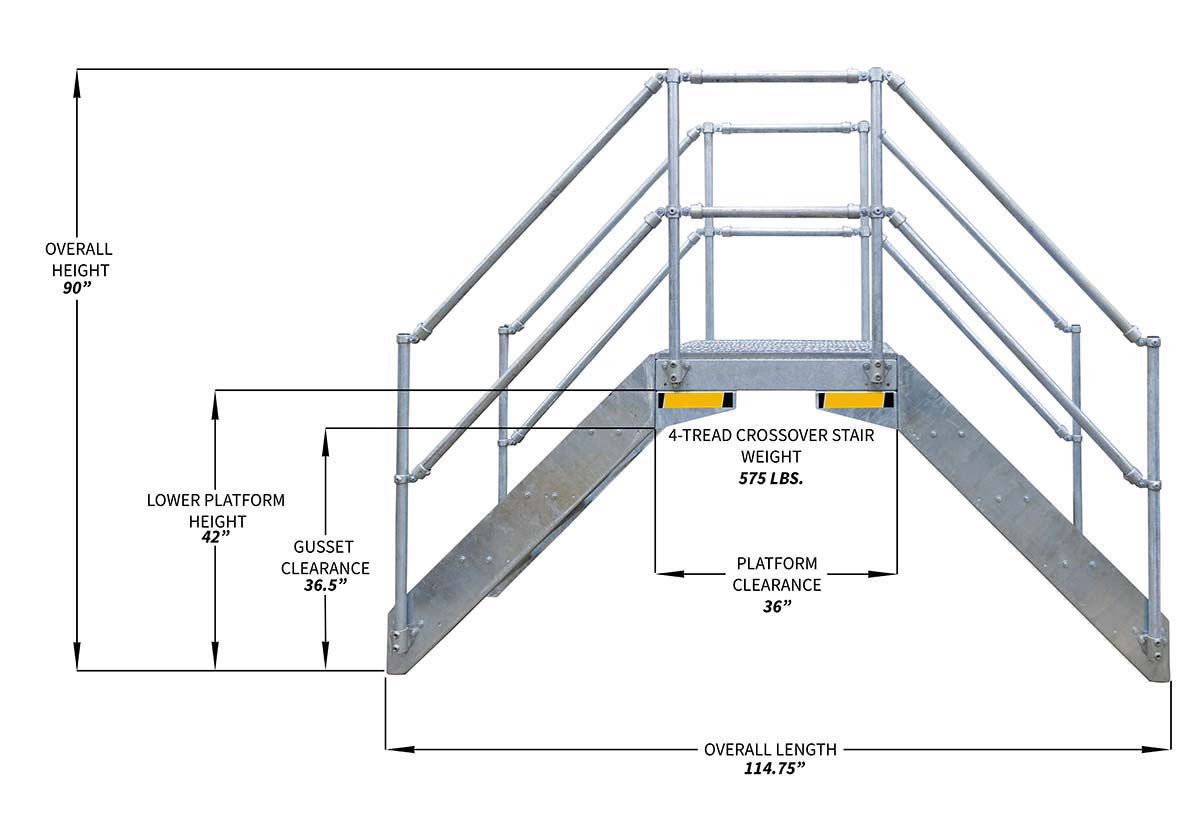

This heavy-duty bolt-together design can be quickly assembled on-site and requires no fabrication or onsite welding. The components can be brought up through a hatch, so no hoisting is required. The 36” wide stairs can range from a single step up to seven steps before a connection is required to a work platform. Up to three 36” X 36” work platforms can be attached together without the need for a support tower creating a 9’ long span over large or wide obstacles. The continuous handrails meet all OSHA requirements and provides increased safety.

The system ships flat saving freight costs and are assembled with simple hand tools. Limited customization and custom sizing available.

Features & Benefits:

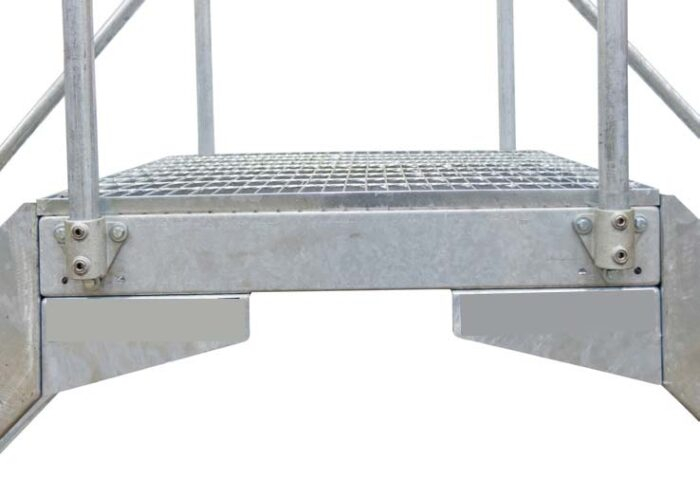

Integrated holes for customer provided anchors	Heavy duty treads with high traction for safety	Platform gussets add extra strength and stability	Heavy duty slip resistant grating on 36” X 36” working surface	Simple bolts and set screws to construct OSHA compliant handrail	Continuous handrail system for increased safety

• Meets OSHA Requirements 1910.25, 1910.28, 1926.451(f) (16)
• Modular system quickly bolts together for fast installation with no welding
• Assembled on-site and components can be brought up through most hatches
• Many configurations are possible using flexible components
• Eliminates custom onsite fabrication where OSHA compliance can be suspect
• Continuous handrail system provides increased safety
• High traction open treads and platform for best in class slip resistance
• 36” wide system accommodates people and the tools and supplies they need to carry

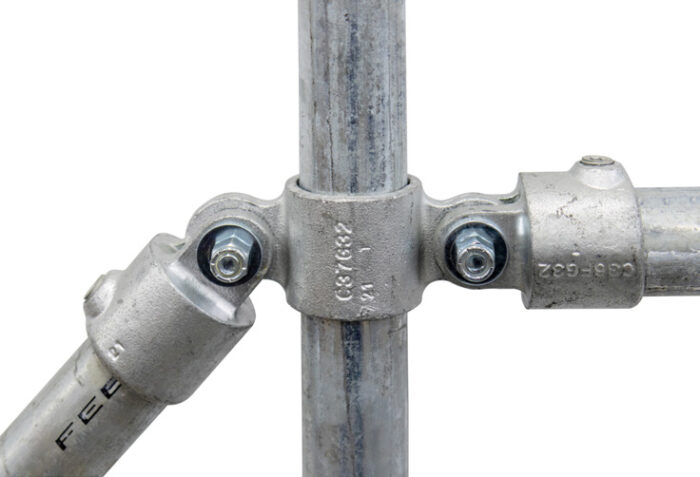

• Heavy-duty steel components make rigid and stable structures
• Hot dipped galvanized components resist the element for long life
• Integrated anchoring locations built-in for customer supplied anchors
