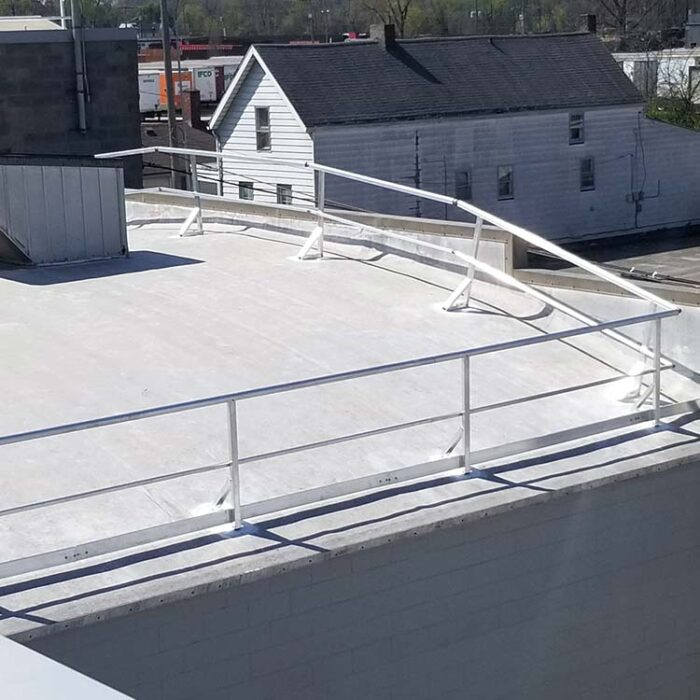

Aluminum Fixed Top Mounted Guardrails
$0.00

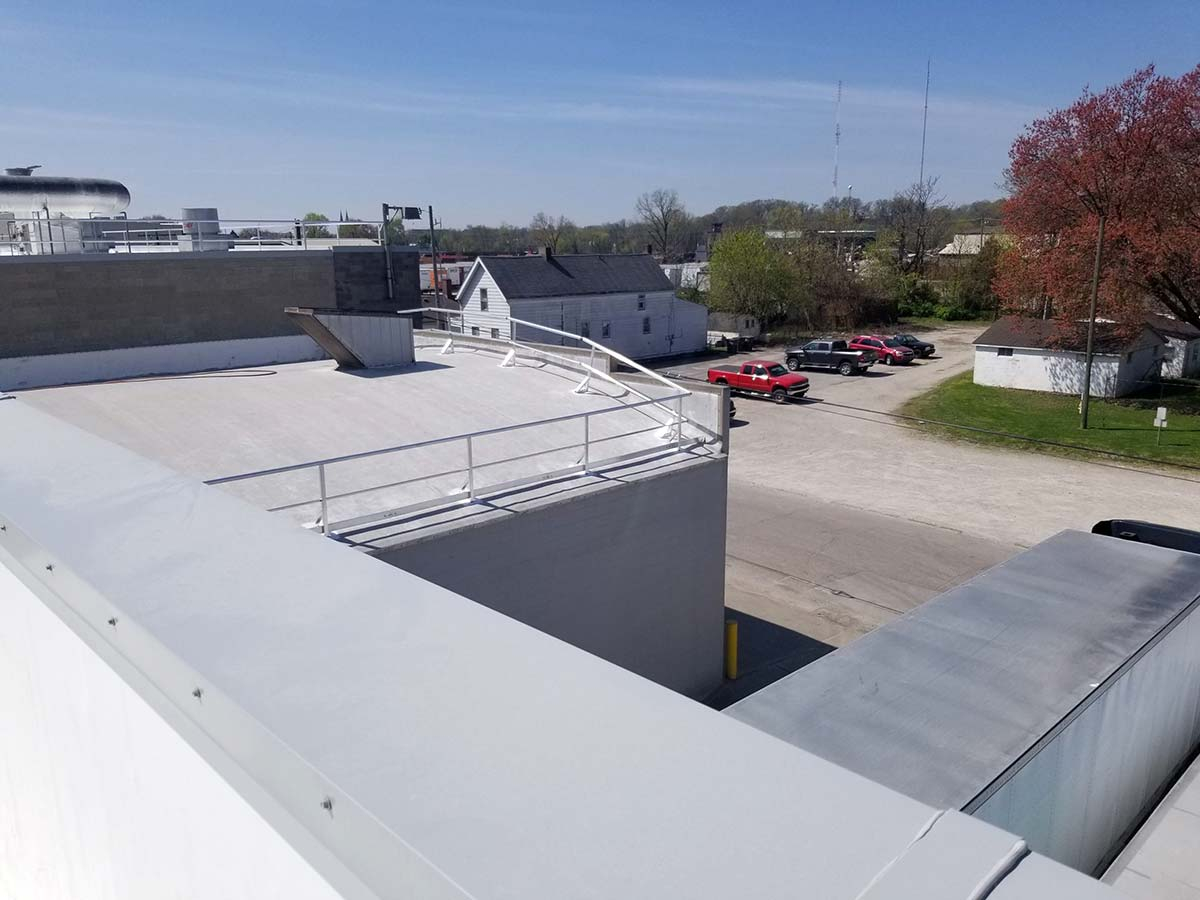

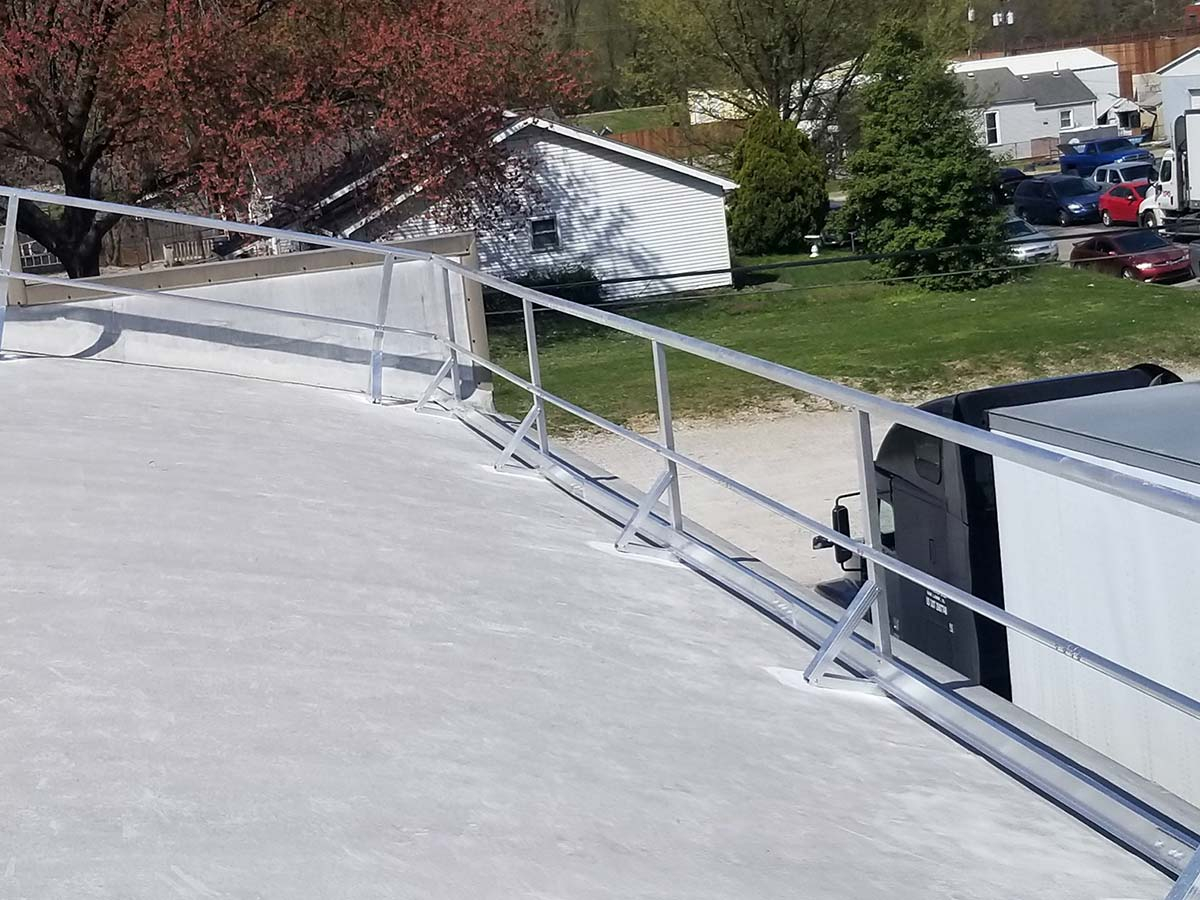

CAI Safety’s Aluminum Fixed Top Mounted Guardrails is designed for sloped roof projects and applications where higher wind loads, ice build-up and snow loads are typical. The Aluminum Top Mounted system can be fastened down with the KATTPOINT Anchor System. The KATTPOINT Anchor is supplied with project specific roof membrane pre-attached to ensure a waterproof connection and maintain the warranty. This system is OSHA, Cal-OSHA, and WA-OSHA compliant.
What components does this kit include ?

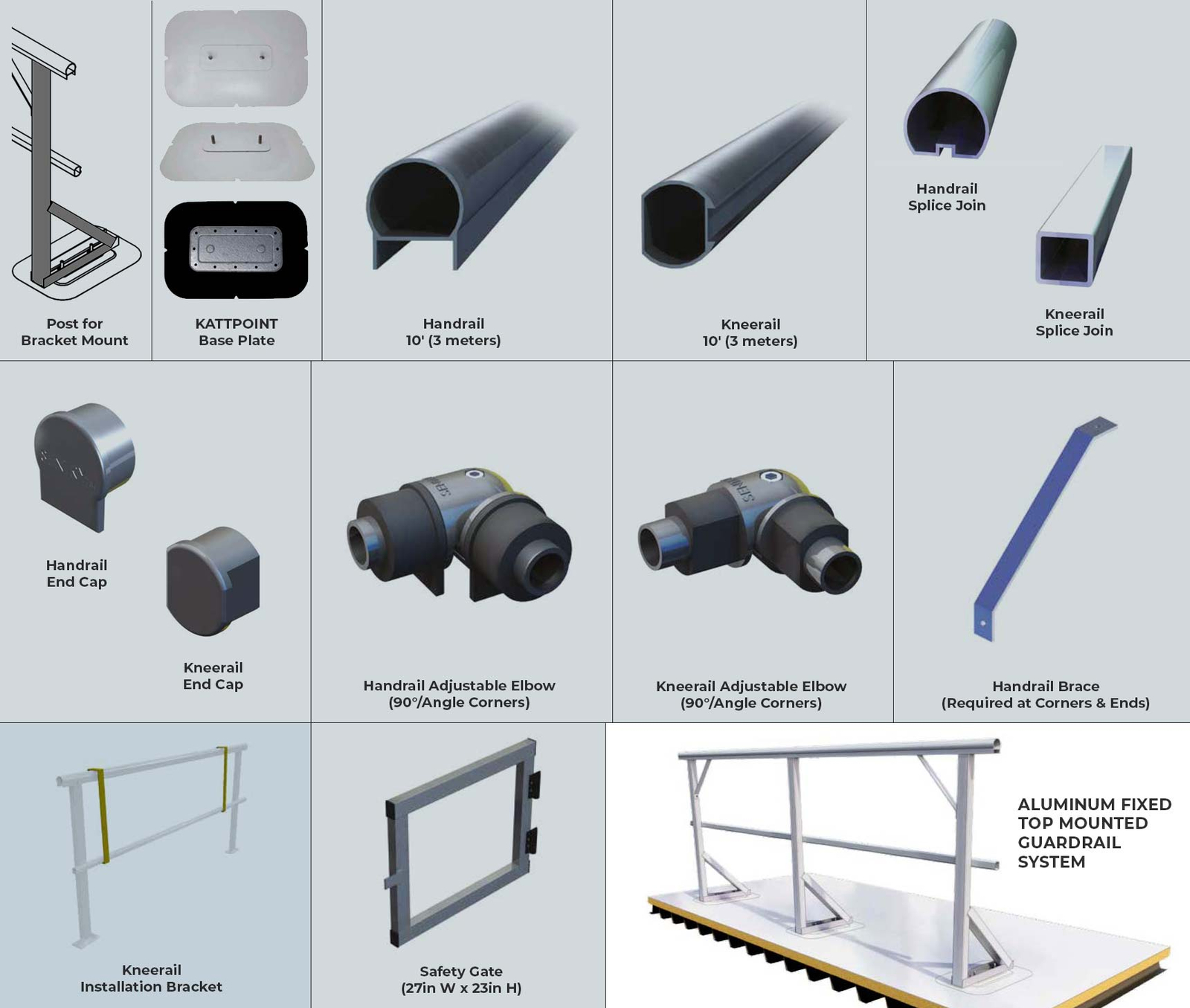

Kit Components: Kattpoint/Base Plate (choice of roof surface), Post for Bracket Mount, Handrail/Kneerail – 10′, Handrail/Kneerail splice join, Handrail/Kneerail end cap, Handrail/Kneerail adjustable elbow (if chosen), Handrail brace, Kneerail Installation Bracket, Safety Gate – 20″ to 35″ Adjustable (if chosen), Toeboards (if chosen), All supported hardware included like screws, anchors, manual, install kit, etc. (except roofing fasteners)
Total Length of System (Approx. ft.): 10
- System Description
- Selections Explained
- Specifications, Correct Usage & Components
- Install Video
- Downloads
- REQUEST QUOTE
System Description

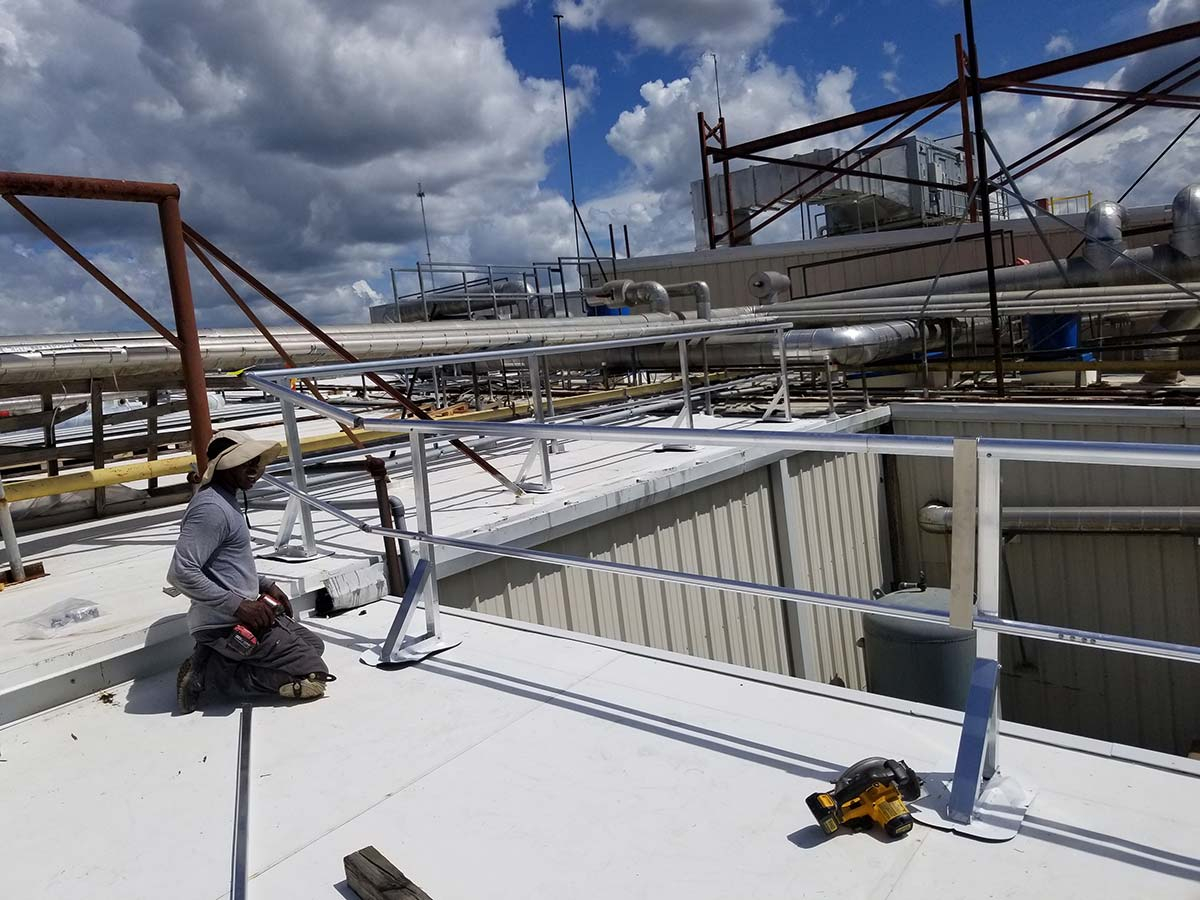

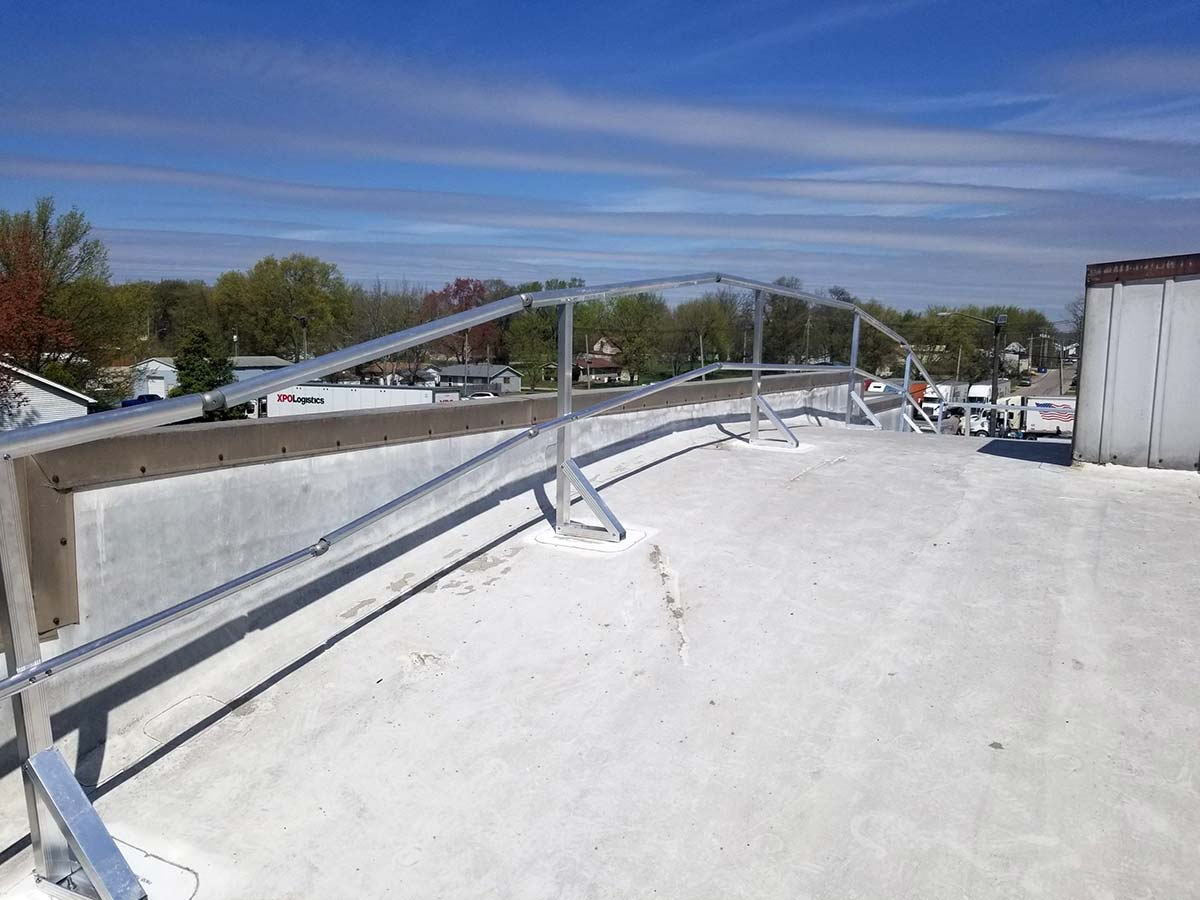

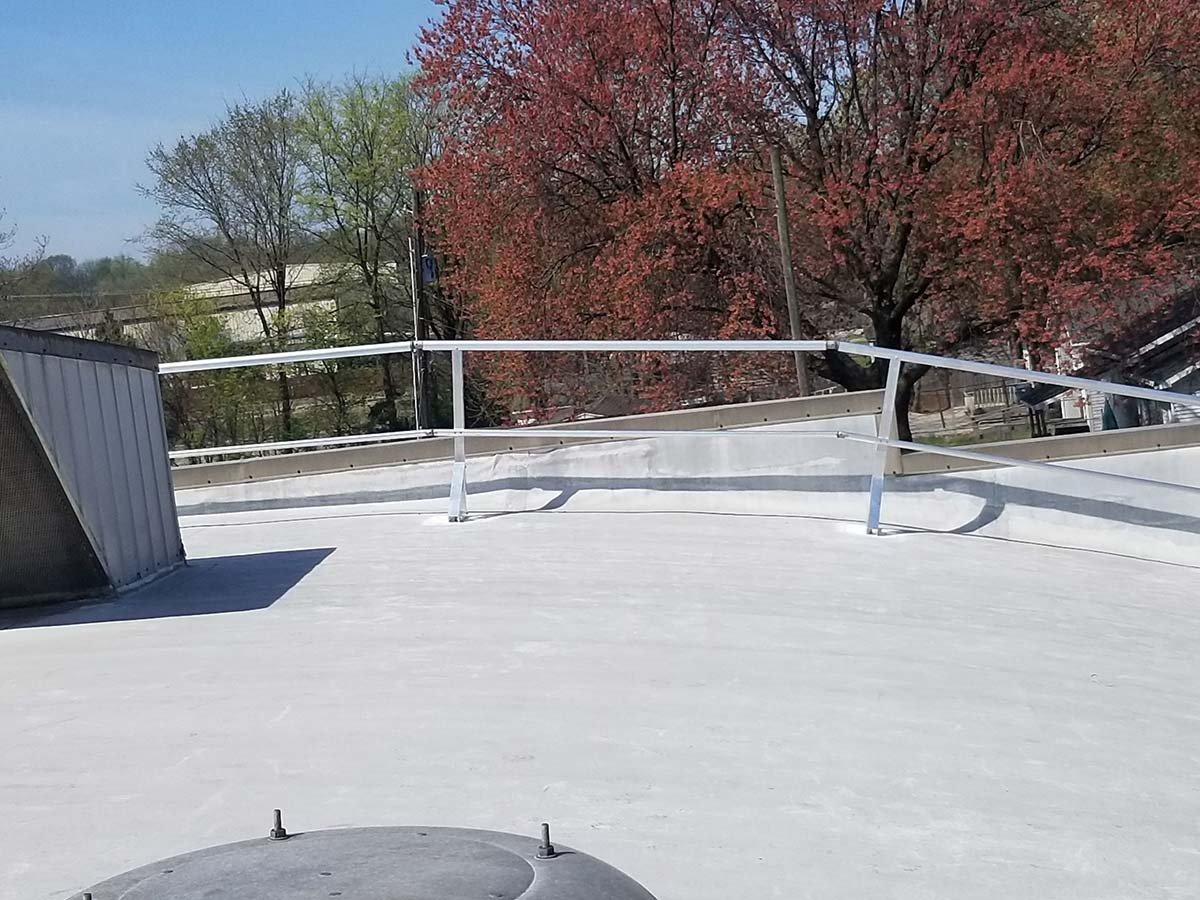

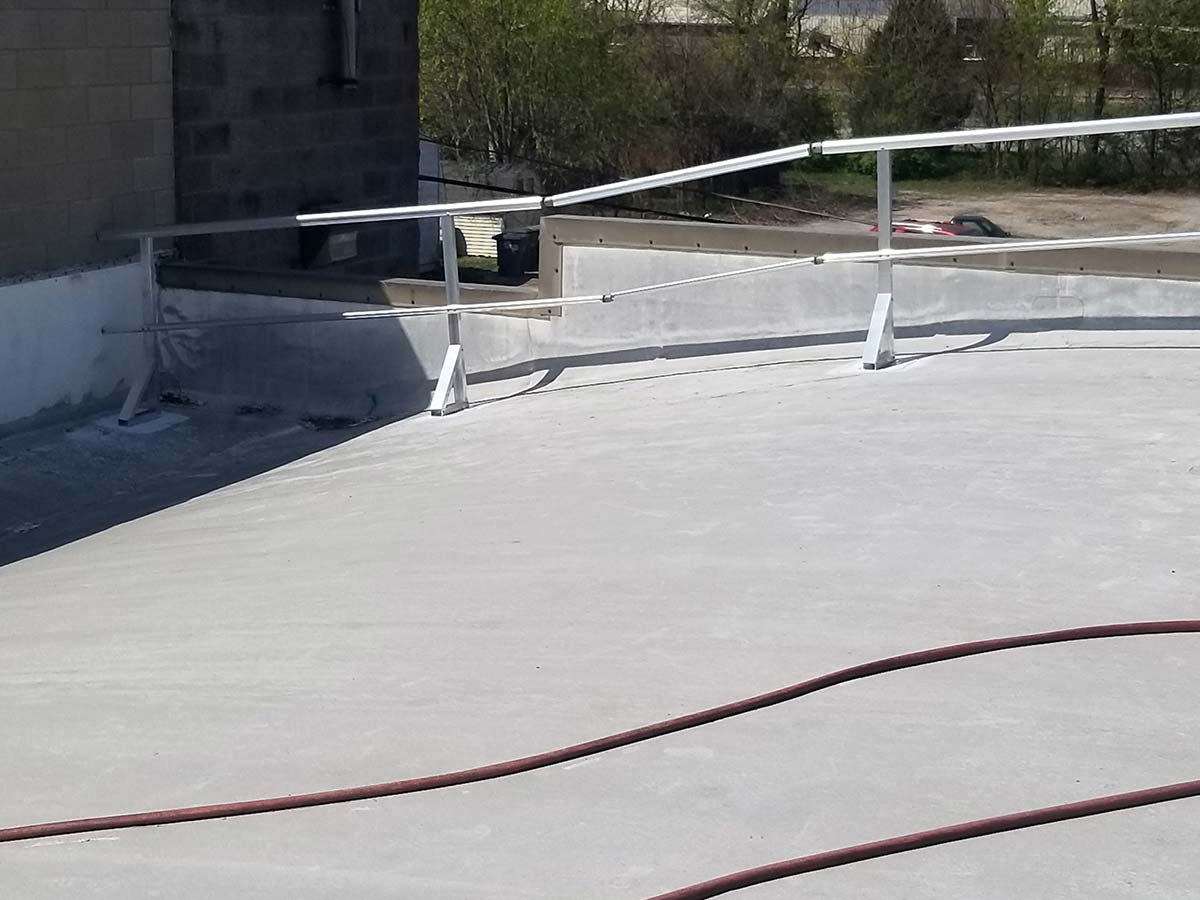

CAI Safety’s Aluminum Fixed Top Mounted Guardrails is designed for sloped roof projects and applications where higher wind loads, ice build-up and snow loads are typical. The Aluminum Top Mounted system can be fastened down with the KATTPOINT Anchor System. The KATTPOINT Anchor is supplied with project specific roof membrane pre-attached to ensure a waterproof connection and maintain the warranty. The KATTPOINT is approved by all major manufacturers. This system can be easily customized on-site to suite specific site requirements.
Working on rooftops is a dangerous endeavor that requires maximum safety. Thankfully, this aluminum guardrail system provides complete passive fall protection and help your business stay OSHA, Cal-OSHA, and WA-OSHA compliant. The aluminum guardrail system has a clean aesthetic appeal and can be easily customized by color, size and length.
Features & Benefits:
- Fixed Base Plates: KATTPOINT plates, are approved by major membrane manufacturers to uphold your roof warranty
- Cost Effective: Eliminates the cost of steel
- Sturdy Design: Fastening into the roof deck provides the most sturdy guardrail system on the market
- OSHA, Cal-OSHA, and WA-OSHA Compliant: The Aluminum Fixed Top Mounted Guardrail system is designed and manufactured to meet and exceed safety regulations as applicable.
- Modular system: Each kit can be customized for color, size and fit.
- Appearance: The sleek aluminum rails can be made in custom colors that match your building’s façade.
- Minimum lead time: With CAI Safety’s tight turnaround times, you can receive your system in just a few business days.
- Easy delivery: The lightweight aluminum nature makes it easy to ship and handle so you can put it to use as soon as possible.
Selections Explained
STEP 1 – TYPE OF ROOF SURFACE
**Please note: Roofing fasteners are not included with the guardrail system kit
 |
 |
 |
| Concrete Deck | Metal Deck | Wood Deck |
STEP 2 – ROOF MEMBRANE TYPE
** Please note: Roofing fasteners are not included with the guardrail system kit
 |
PVC Roofing (Polyvinyl Chloride)PVC is flexible roofing membrane manufactured using a UV-resistant Polyvinyl chloride. It’s designed for low slope roofing applications. The PVC membrane is reinforced with polyester fabric which creates a tear resistant membrane. |
 |
EPDM Roofing (Ethylene Propylene Diene Monomer)EPDM is a thermo-set roofing membrane made from rubber-polymer and is often referred to as “rubber roofing”. This lightweight synthetic material has been a popular choice since the early 1970s for its long-term durability and low maintenance needs. |
 |
TPO Roofing (Thermoplastic Polyolefin)TPO is the leading and most preferred roofing system product in the commercial sector for its resistance to ultraviolet rays, installation advantages, LEED points, and energy savings. TPO can be used in new construction and re-roofing applications. |
 |
SBS Roofing (Styrene Butadiene Styrene)SBS modified bitumen roofing is a material made out of asphalt and synthetic rubber, making it an exceptionally flexible material for flat roofs. Thanks to its rubber composition, the material is less prone to cracking and sustaining damage from elements like ice and sun. |
STEP 3 – MEMBRANE TYPE BRAND & COLOR
|
Example: Brand – Polyglass USA Color – Black |
STEP 4 – TOTAL LENGTH OF SYSTEM (in ft.)
 |
| Total Length of System (in ft.) This is the total span of your system from start to end. Minimum system length is 8 ft. |
STEP 5 |
STEP 6 |
 |
 |
| Corners To bend the guardrail system at a 90-degree angle or any other angle (restrictions apply) If no selection is made, a Corner Kit will not be included. | Open Ends Number of open ends that require to be closed with End Caps. One Handrail end cap and one Kneerail end cap is included for each end. If no selection is made, brackets will not be included. |
STEP 7 |
STEP 8 |
 |
|
| Safety Gate The safety gate (27″ x 23″) fitted between two uprights and used as an access door. Can be cut in field to adjust required width.If no selection is made, safety gate and additional uprights will not be included. | Toeboards Toeboards are necessary when there is no parapet on the roof. This is optional |
Specifications, Correct Usage & Components
| Cal-OSHA Regulations | WA-OSHA Regulations | Federal OSHA Regulations | |
|---|---|---|---|
| Maximum Post Spacing | 8ft. | 8ft. | 8ft. |
| Maximum Wind Speed | N/A | N/A | N/A |
| Wind-Load Return Required | No | No | No |
| End Return Rails (Finishing Kits) | No | No | No |
| Roof Parapet Required | No | No | No |
| Maximum Roof Pitch or Slope | 1.5/12 or 7.13° | 1.5/12 or 7.13° | 1.5/12 or 7.13° |
| EPDM Base Required | N/A | N/A | N/A |
| Compliance Codes | Cal-OSHA Title 9, 1620 and 3209 | WA-OSHA WAC 296-24-75011 | OSHA 1910.29 and 1926.502 |
CORRECT USAGE (!! IMPORTANT !!)
- OSHA, CAL-OSHA, & WA-OSHA COMPLIANCE: This guardrail system has a maximum spacing between uprights/stanchions of 8 feet on center (96 inches or 2.44 meters). OSHA 1910.29 and 1926.502. Cal-OSHA Title 9, 1620 and 3209. WA-OSHA WAC 296-24-75011.
- Use #15 roofing screws to attach the Kattpoint Base to the roof surface or membrane.
- Finish: All aluminum sections are supplied mill finish as standard. Safety Yellow option in stock for an upcharge.
- Wall Mounts: To attach your guardrail system ends to a Wall, Wall mounts are available.
- Please send us a Request or call us at (951) 465-7386.
MATERIAL & DIMENSIONS
 |
Bolt | (2) 3/8″-16 x 1.5″ Bolt(2) 3/8″-16 x 1.5″ Bolt |
|---|---|---|
| Bolt Material Type | 304 Stainless Steel | |

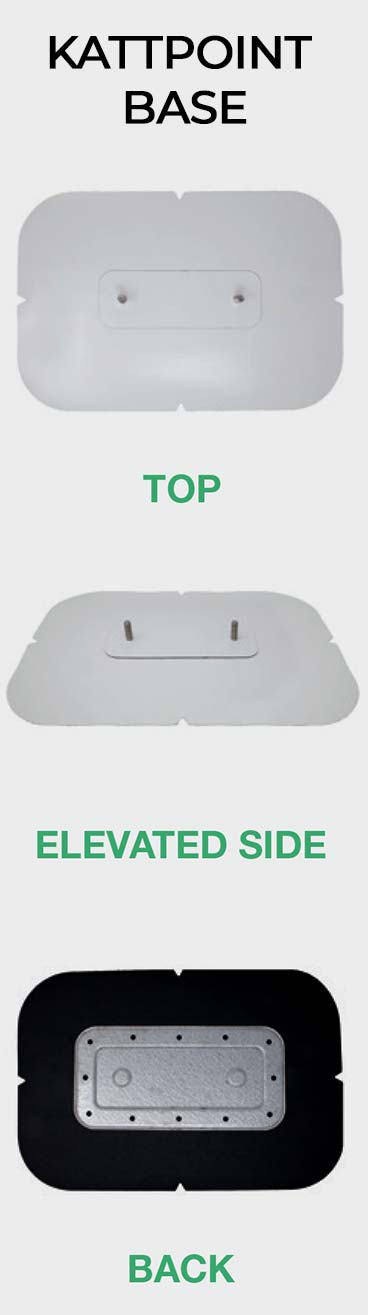

| Plate Dimensions | 11.08″ x 5.47″ | |
| Plate Fastener Hole Diameter | 17/64″ (12 Holes) | |
| Plate Material Thickness | 0.047″ (1.194mm) | |
| Plate Material Type | Galvalume® AZ55 | |
| Cover Membrane Manufacturer | Brand Specific or Generic | |
| Cover Membrane Color | Default White | |
| Cover Length | 17.5″ | |
| Cover Width | 11.75″ | |
| Cover Thickness | Default 60 mil | |
| Ultimate Load – Shear* | Pending | |
| Ultimate Load – Tension* | Pending | |
| Product Warranty | Standard 20 Year Material Only Warranty | |
| System Testing | Test was performed in accordance with: ICC – ES AC467 Section 3.2 |
COMPONENTS
 |
Includes:
|
Install Video
Downloads
REQUEST QUOTE
By providing some basic information, we can provide you with a custom quotation or more product information. If you prefer to speak with a fall protection expert just call us at (951) 465-7386 x 303 or email us at webstore@caisafety.com Our Request Quote forms have been highly customized to help you provide system specific information about your fall protection requirements. REQUEST QUOTE
